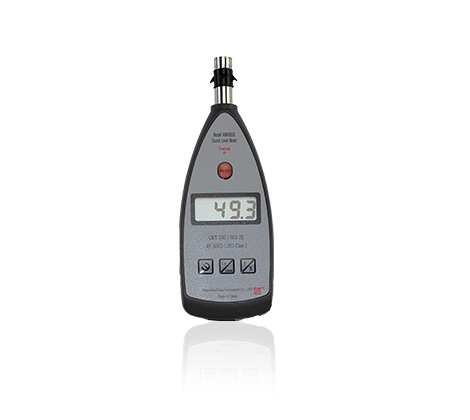

AWA5636-0 Sound Level Meter
AWA5636-0 Sound Level Meter AWA5636-0 Sound Level Meter AWA5636-0 Sound Level Meter AWA5636-0 Sound Level Meter AWA5636-0 Sound Level Meter AWA5636-0 Sound Level Meter AWA5636-0 Sound Level Meter AWA5636-0 Sound Level Meter
AWA5636-0 Sound Level Meter
Model AWA5636 Sound level meter is digital and multifunction sound level meter with modular design. Its performance accords with standard IEC 61672-1:2002 class 2.
Please select the operation you need
Aihua Instruments Aihua Instruments
Key Features


■  Compact pocket sound level meter


■  Lp, Lmax


■  Auto range


■  Complies with IEC61672-2002 Class 2


Product Uses



   ■  General noise measurement


   ■  Environemental noise certification


   ■  Factory noise investigations


   ■  Assessmet of the risk of hearing damage

Technical Specifications
    Model :AWA5636-0 Digital Sound Level Meter Class 2

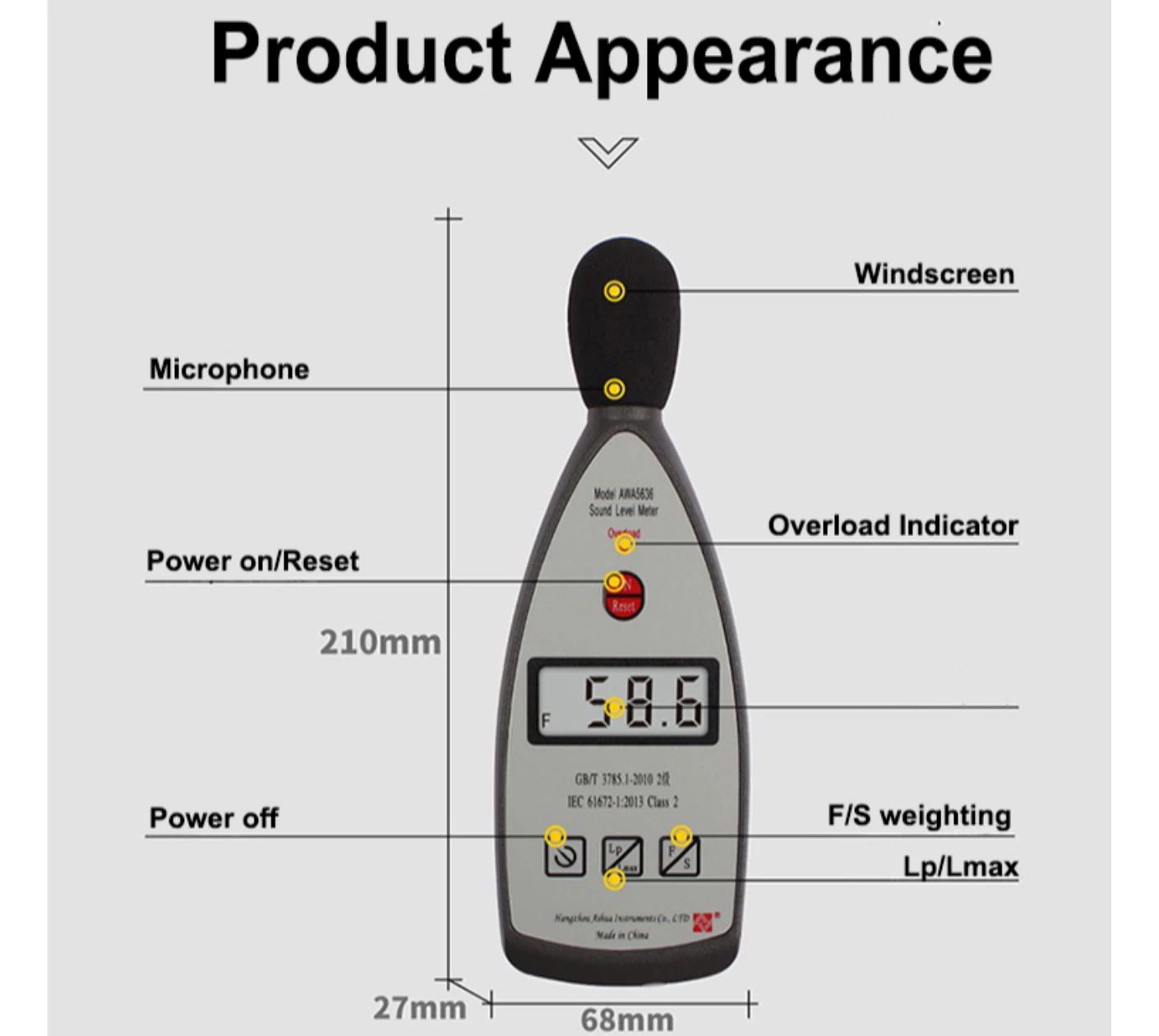

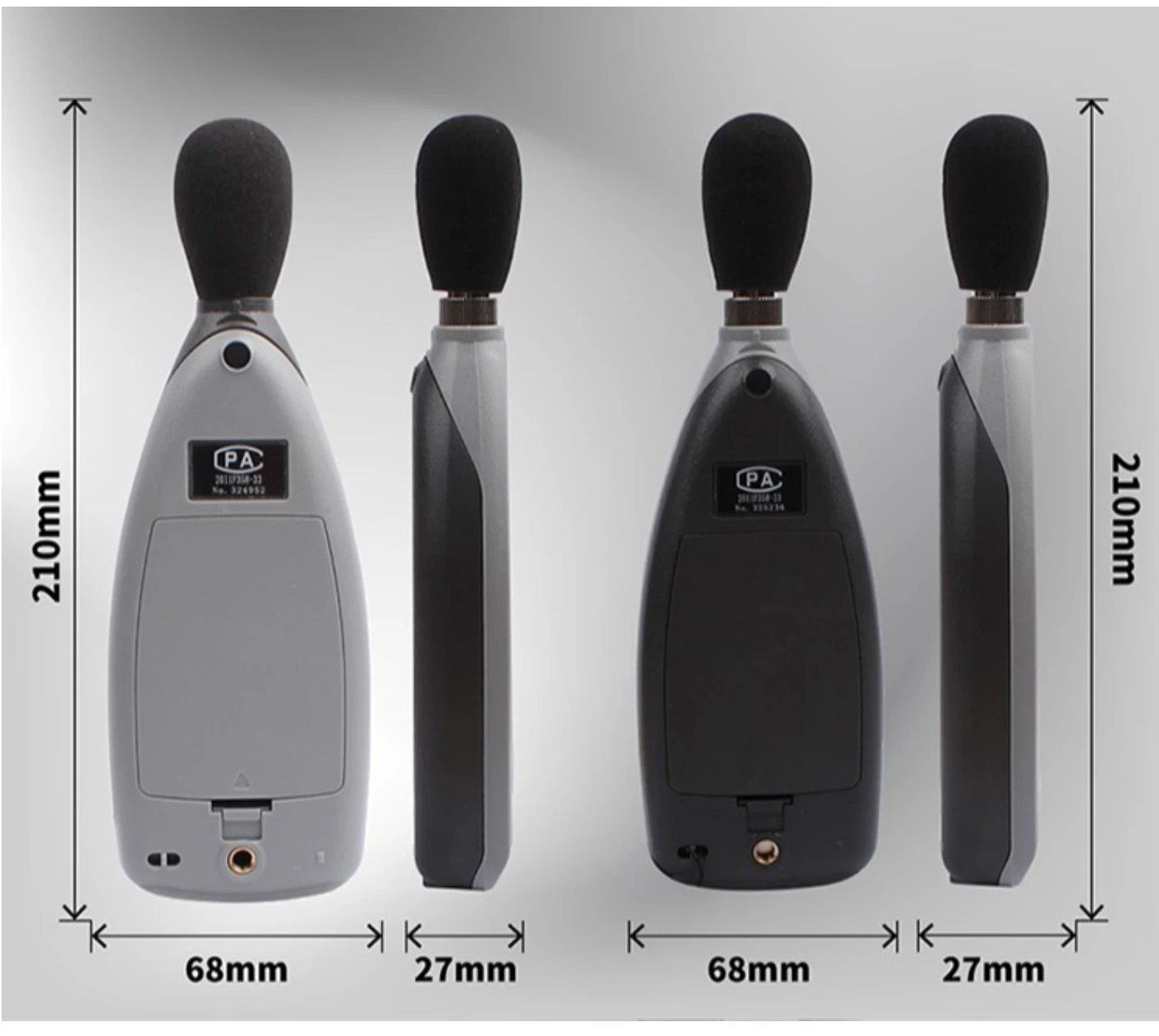

    Dimension

    210×48×27 mm

    Standards

    IEC 61672 Class 2

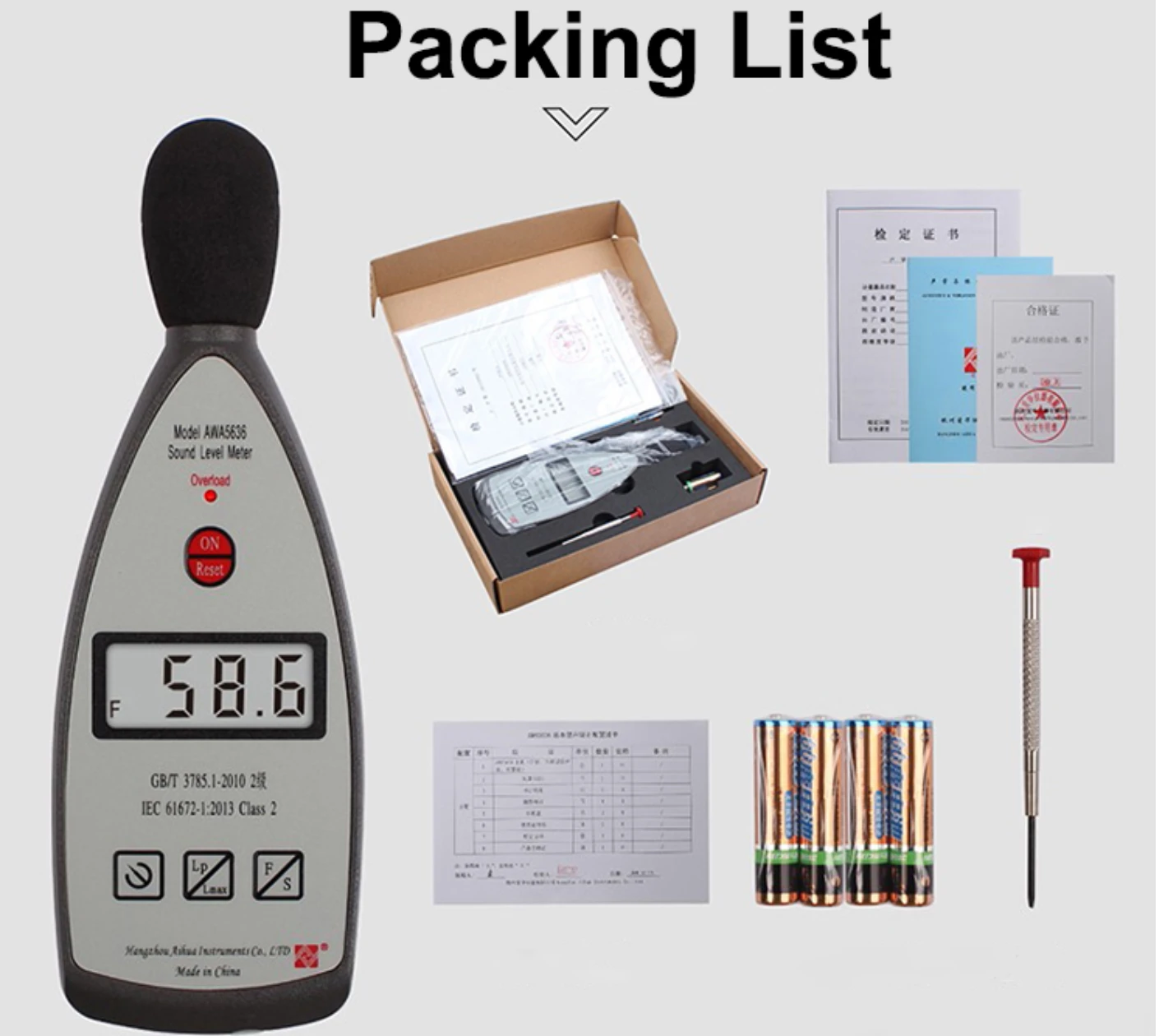

    Contents:

    Meter, microphone, windscreen,  calibration certificate, carrying case, English standard manual

    Application:

    Noise measurement

    Frequency:

    20 Hz12.5 kHz

    Power Supply:

    battery 4×LR 6

    Product Weight:

    0.3 kg

    Measurement Range:

    40~130 dBA

    A/D Bits:

    32 kHz

    Notes:

    ±1dB accuracy with 0.1dB resolution

    Frequency weighting: A

    Time weighting: F, S

    AC, DC output

    Lp, Lmax

    1/2" microphone
