What is the AWA14426 microphone used for?

The AWA14426 is a 1/2-inch prepolarized pressure field measurement microphone designed for use with acoustic couplers, simulated ears, and related electroacoustic testing equipment. It is also suitable for acoustic research, precision cavity measurements, and broadband frequency analysis.

What standard does the AWA14426 comply with?

The AWA14426 complies with the IEC 61094 WS2P standard for working standard microphones used in pressure field applications.

Is the AWA14426 compatible with IEPE preamplifiers?

Yes. The AWA14426 is compatible with both IEPE and conventional preamplifiers from various manufacturers, including systems marketed as ICP or CCP constant current power supply.

What is the frequency range of the AWA14426?

The AWA14426 has a frequency range of 3.15 Hz to 20 kHz, with a lower limit frequency (-3 dB) of 3.15 Hz, making it suitable for a wide range of acoustic measurement tasks.

Does the AWA14426 come with a calibration certificate?

Yes. Each AWA14426 microphone is factory-calibrated using traceable calibration equipment and is supplied with a calibration certificate. Recalibration is recommended at least once per year.

What is the dynamic range of the AWA14426?

The AWA14426 has a dynamic range of 25 dBA to 161 dB, with a self-noise floor of ≤25 dBA, enabling accurate measurement across a broad range of sound pressure levels.

What warranty does the AWA14426 come with?

The AWA14426 comes with a one-year warranty. Hangzhou Aihua Instruments provides comprehensive after-sales support for all its measurement microphones.

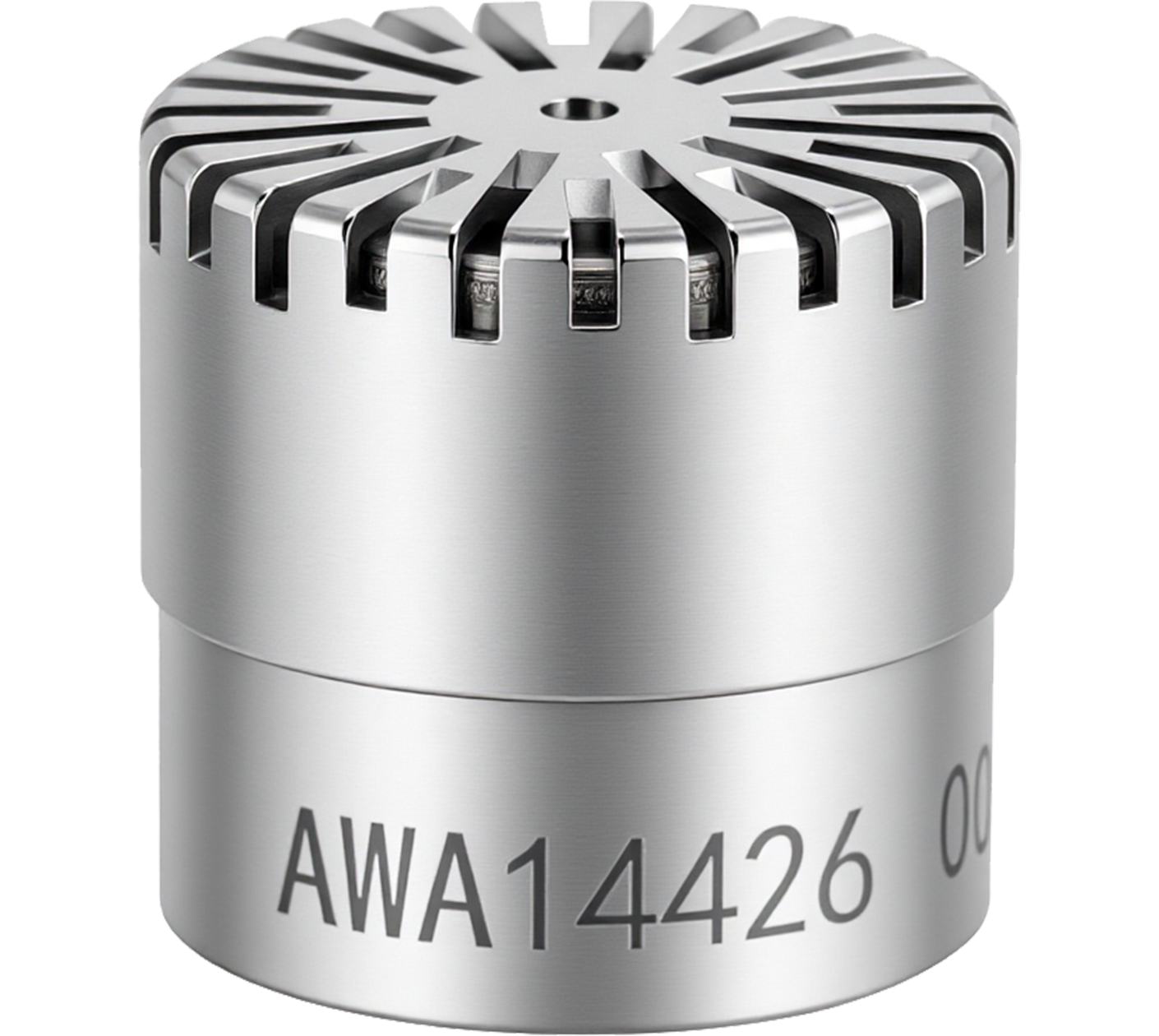

AWA14426 1/2” Prepolarized Pressure Field Measurement Microphone|Sound Decibel Meter & Acoustic Equipment

Key Features Product Uses Technical Specifications

Key Features

Compatibility

Works with IEPE and conventional preamplifiers
The AWA14426 measurement microphone is compatible with IEPE or conventional preamplifiers from various manufacturers. IEPE is a general-purpose constant-current-source power-supply technology used in preamplifiers. Different manufacturers may use different names, such as ICP (Integrated Circuit Constant Current Power Supply) and CCP (Constant Current Power Supply).

Calibration

Factory calibrated with traceable certification
Each measurement microphone is calibrated at the factory using traceable calibration equipment and comes with a calibration certificate. Recalibration is recommended at least annually.

Quality and warranty

Built for stability and durability
The microphones utilize second-generation alloy diaphragms, high-strength protective grilles, and synthetic corundum insulators, making them stable and reliable measurement microphones on the market. Compared to traditional nickel and stainless steel, alloy diaphragms offer superior corrosion resistance, high-temperature stability, shock resistance, and specific strength. All microphones are assembled and tested in a Class 1000 cleanroom to ensure product consistency and stability. Microphones come with a one-year warranty, and we provide comprehensive after-sales support.

Product Uses

Acoustic Research

Support high-precision laboratory studies, sound field analysis, and acoustic material evaluation.

Electroacoustic Testing

Ideal for loudspeaker, microphone, transducer, and audio device performance testing.

Precision Cavity Measurements

Optimized for acoustic couplers, calibration cavities, and other enclosed measurement environments.

Broadband Frequency Analysis

Capture acoustic signals across a wide frequency range for comprehensive sound characterization.

Technical Specifications

AWA14426 Prepolarized Pressure Field Measurement Microphone
Field Type	Pressure Field	Lower limit frequency (-3dB) (Hz)	3.15
Diameter	1/2 inches	Operating Temperature (°C)	-30～+80
IEC 61094	WS2P	Temperature coefficient (dB/℃) (@250 Hz)	-0.01
Polarization Voltage (V)	0	Static pressure coefficient (dB/kPa)	-0.01
Sensitivity (mV/Pa) (@250 Hz ± 2.0 dB)	12.6	Operating humidity range (%RH)	0～100
Frequency range (Hz)	3.15-20k	Height with grid (mm)	13.3
Capacitance (pF) (@250 Hz)	11（@250 Hz）	Diameter with grid (mm)	13.2
Dynamic Range	25 dBA-161 dB	Height without grid (mm)	12.5
Noise floor (dBA)	≤25	Diameter without grid (mm)	12.7
Voltage Equalization Method	Side Equalization	Preamplifier Fitting Thread	11.7 mm-60 UNS

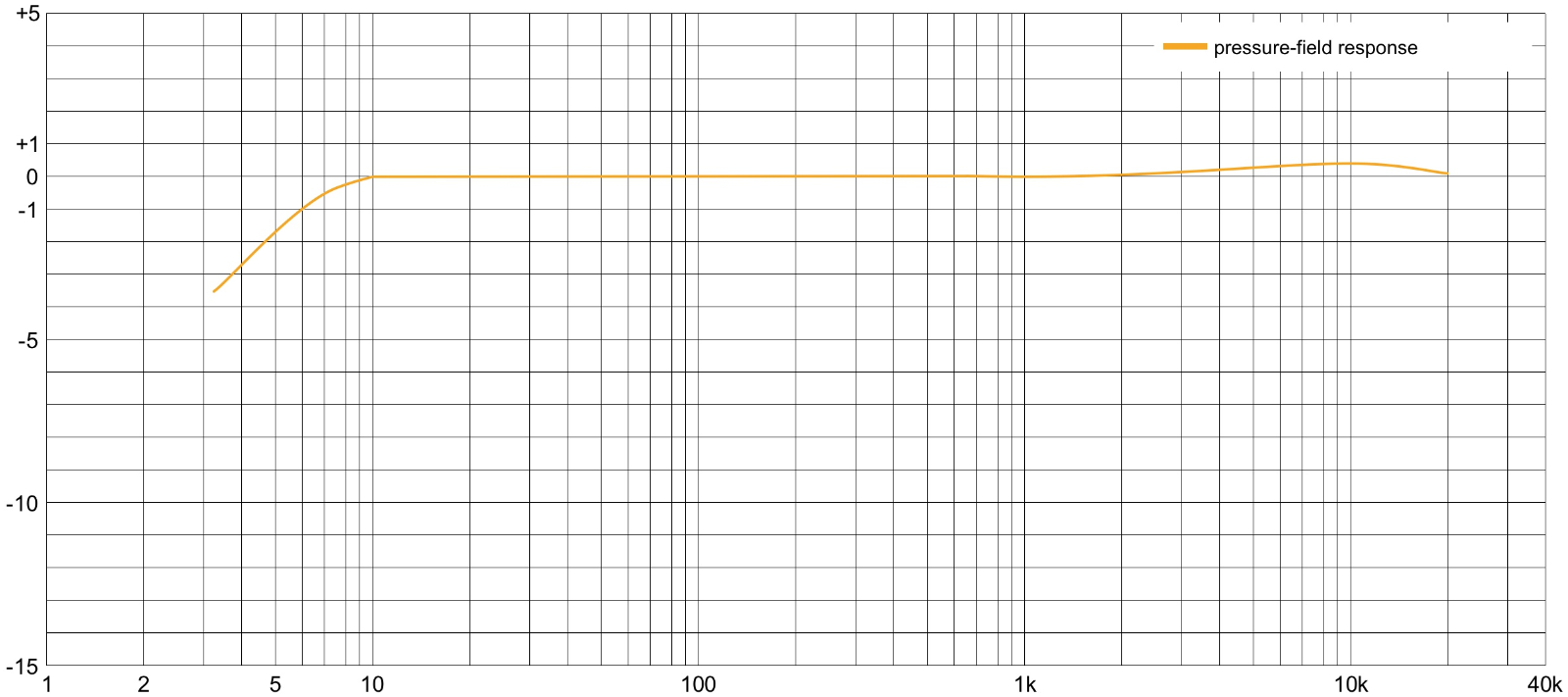

Frequency Response

Dimensions
