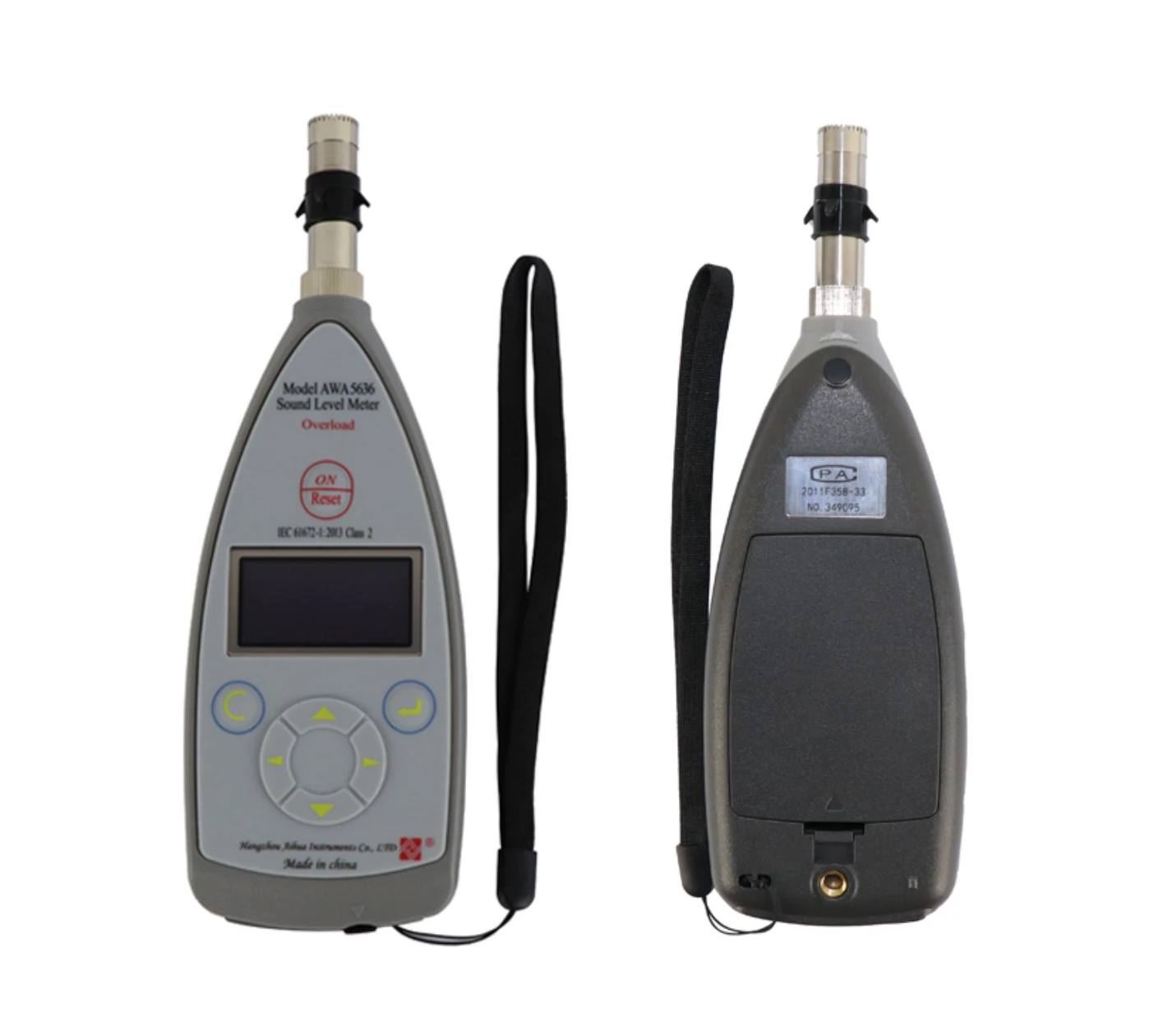

AWA5636 Handheld Noise Meter
AWA5636 Handheld Noise Meter AWA5636 Handheld Noise Meter AWA5636 Handheld Noise Meter AWA5636 Handheld Noise Meter AWA5636 Handheld Noise Meter AWA5636 Handheld Noise Meter AWA5636 Handheld Noise Meter AWA5636 Handheld Noise Meter
AWA5636 Handheld Noise Meter
The AWA5636 Handheld Noise Meter is a professional Class 2 sound level meter featuring a digital multifunction design with flexible modular configuration. Fully compliant with IEC 61672-1:2002 Class 2 standard, it delivers reliable and accurate noise measurement performance for a wide range of industrial and environmental applications.
Download
Get A Quote
Please select the operation you need
preview
Download
Aihua Instruments Aihua Instruments
Key Features Product Uses Technical Specifications
Key Features


■  Compact pocket sound level meter


■  128 × 64 OLED


■  Auto range


■  Complies with IEC61672-2002 Class 2


Product Uses



   ■  General noise measurement


   ■  Environemental noise certification


   ■  Factory noise investigations


   ■  Assessmet of the risk of hearing damage


   ■  Traffic noise measurement


Technical Specifications

    Items

    AWA5636-1

    AWA5636-2

    AWA5636-3

    AWA5636-4

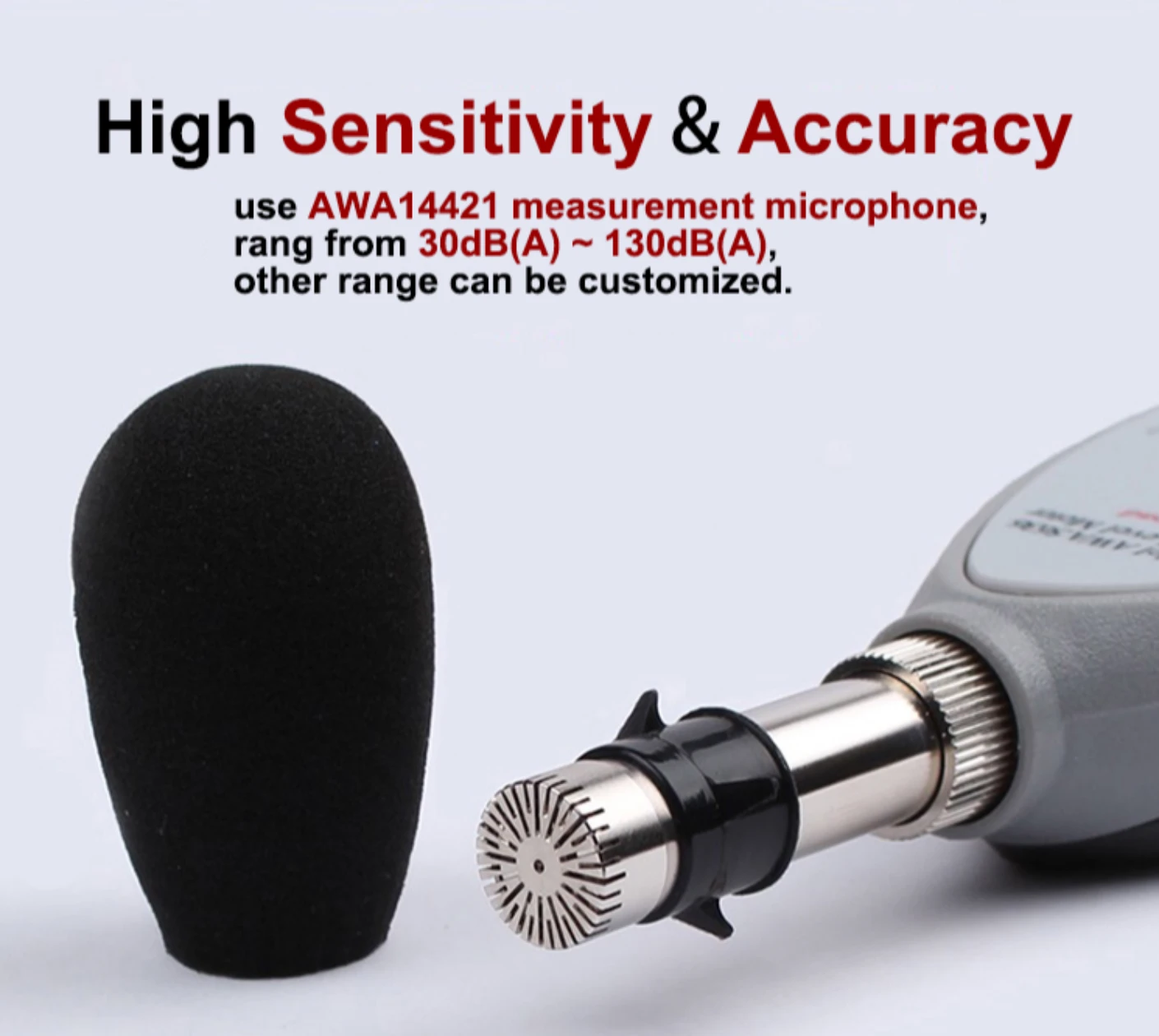

    Microphone

    AWA14421

    Frequency Weighting

    A, C, Z

    Time Weighting

    F, S

    F, S, I

    Frequency Range

    20Hz ~ 12.5kHz

    Meas. Range

    30 dB(A) ~ 130dB(A)

    Self-generated Noise

    <25dba

    Display

    128×64 OLED

    Outputs

    AC, DC

    AC, DC, RS232

    A/D Bits

    32kHz

    Integrating Function

    NO

    YES

    Measure Parameters

    Lp, Lmax

    Lp, Lmax, Lmin, SEL, E, Leq, T, Tm

    Lp,Leq1s, Lmax

    LFp, LSp, Lip, Leqt, Lpeak, Leq, T, LFmax, LFmin, LSmax, LSmin, LImax, LImin, SEL, Lex8h, LAVG, TWA, DOSE, L5, L10, L50, L90, L95, SD,Ts,Tm,

    Volt, Date, Time, E.

    Statistical Analysis Function

    NO

    YES

    Integral Time

    NO

    Manual,10s,1m,5m,10m,20m,30m,1h,

    2h,4h,8h,12h,16h,24h

    1s~24h

    Data Storage

    NO



    128 KB is optional

    NO

    YES,8000 Groups

    Recoding & Data Logging Function

    NO



    Optional(software authorized）

    Overrun instructions

    NO

    YES, Limits can be set

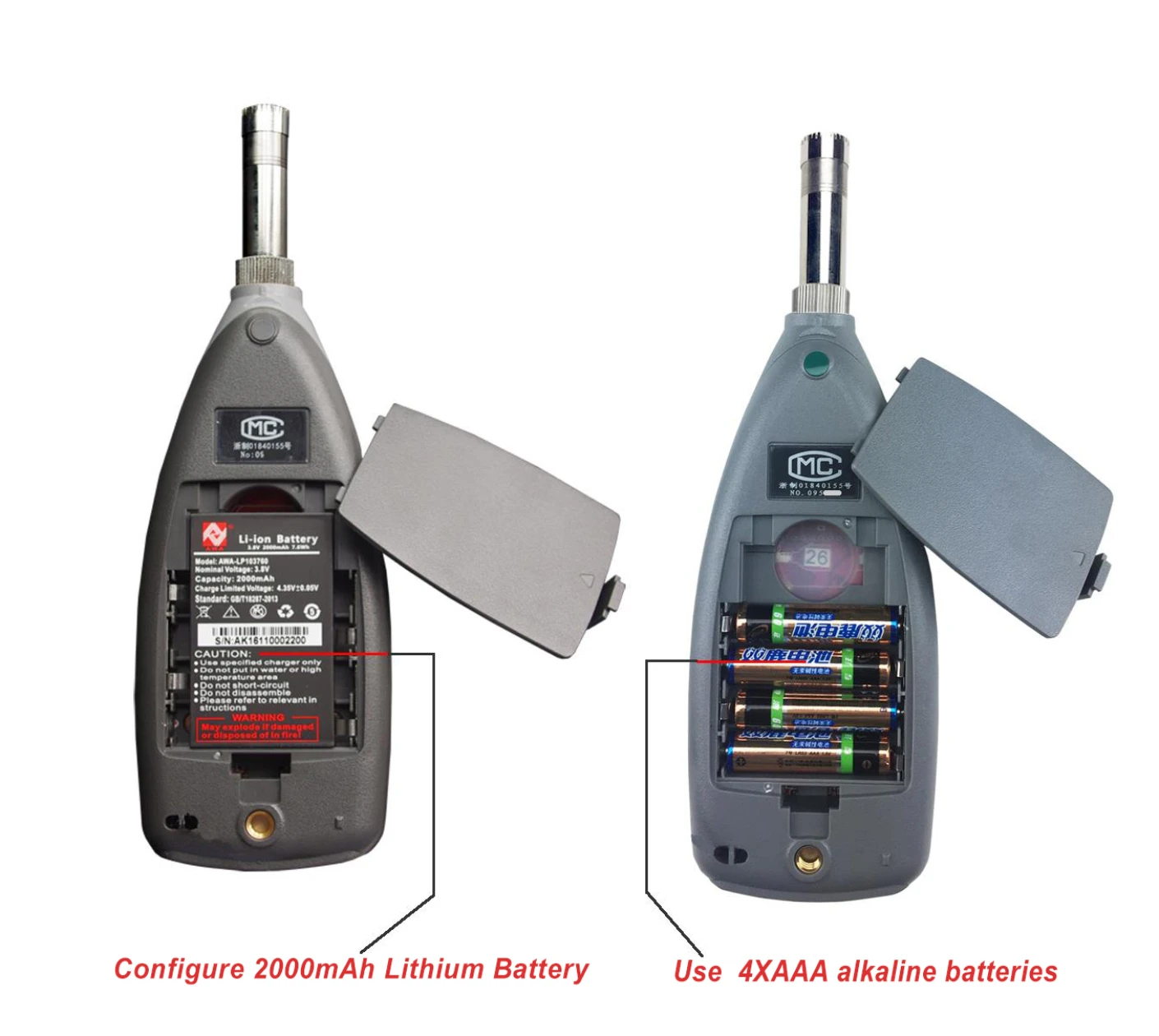

    Power Supply

    battery 4×LR 6

    battery 4×LR 6 or Lithium battery

    Dimension

    210×48×27 mm

    Weight

    0.3kg

    Working Temperature

    -10℃～50℃

    -10℃～50℃

    -20℃～50℃

    -10℃～50℃
