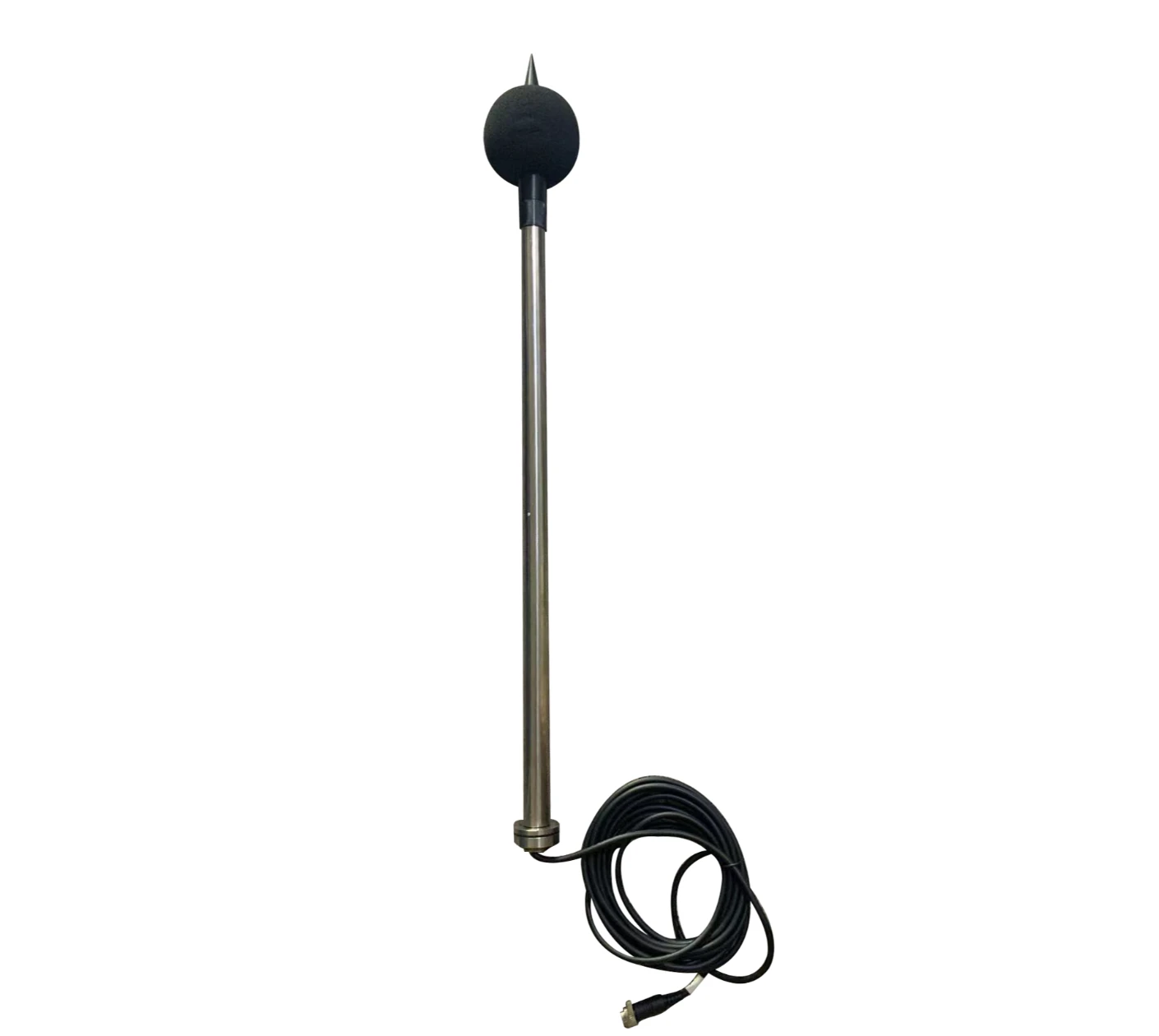

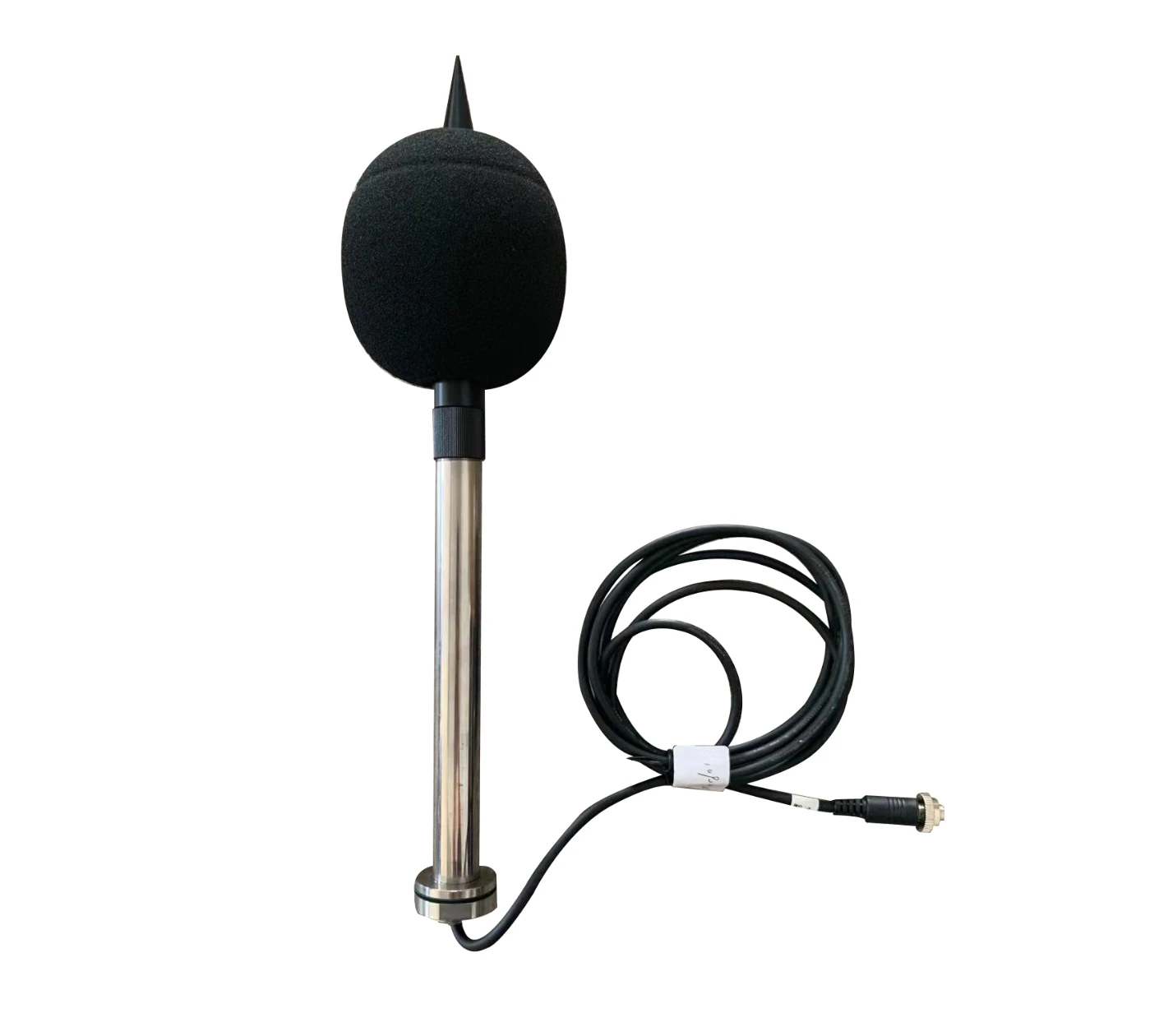

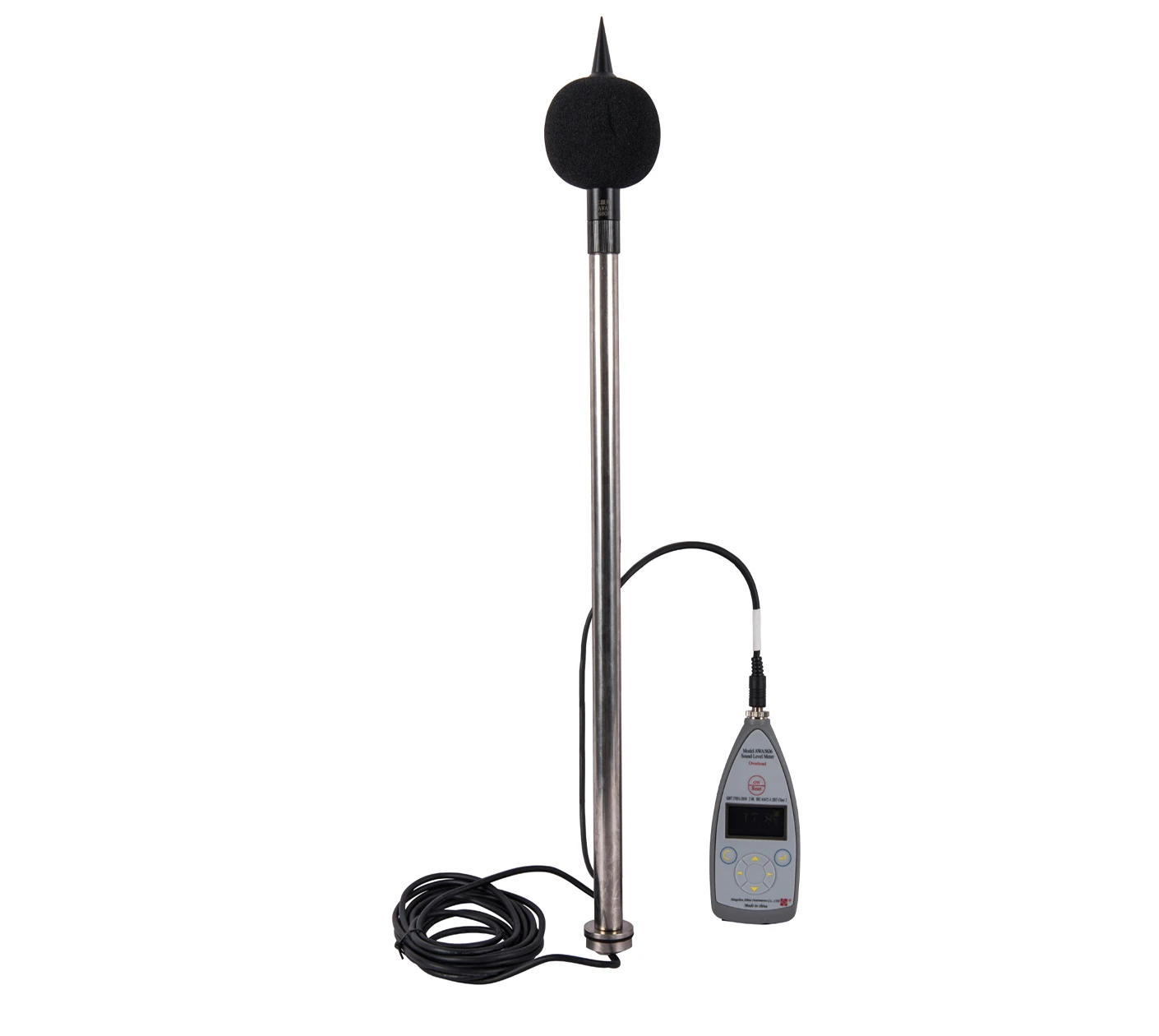

AWA14804 | AWA14805 Outdoor Protection Windshield
AWA14804 | AWA14805 Outdoor Protection Windshield AWA14804 | AWA14805 Outdoor Protection Windshield AWA14804 | AWA14805 Outdoor Protection Windshield AWA14804 | AWA14805 Outdoor Protection Windshield AWA14804 | AWA14805 Outdoor Protection Windshield
AWA14804 | AWA14805 Outdoor Protection Windshield
Outdoor protection windshield is used for short term noise monitoring.
The extension rod length 0.5m, outer diameter Φ22mm
Please select the operation you need
Aihua Instruments Aihua Instruments
Technical Specifications


    Product model

    AWA5636-6 type outdoor unit

    iSV1101-2 Sound Level Meter

    Standard

    GB/T 3785.1—2010 /IEC 61672-1:2013 Level 2

    AWA14429

    AWA14429


    Preamplifier Model

    AWA14602A

    AWA14602A

    Windshield

    AWA14805

    AWA14805

    Measurement Range

    30 dB(A)~130 dB(A)

    27 dB(A)~135 dB(A)

    Spontaneous Noise

    <25 db="">

    <22 db="">

    Frequency Range

    20 Hz~12.5 kHz

    Frequency Weighting

    A、C、Z

    Time Weighting

    F, S, I

    Monitor

    128×64 dot matrix OLED

    Output interface

    AC、DC、PWM、RS232

    RS485 (long-distance transmission)

    Main measurement indicators

    Lp, Leq1s, and Lmax all have a built-in watchdog timer.

    Lp, Leq1s, and Lmax all have a built-in watchdog timer.

    Statistical analysis

    Optional

    Not available

    Battery

    AWA8522 External Power Supply

    AWA8522 External Power Supply

    Working Temperature

    -10 ℃~50 ℃

    -10 ℃~50 ℃
