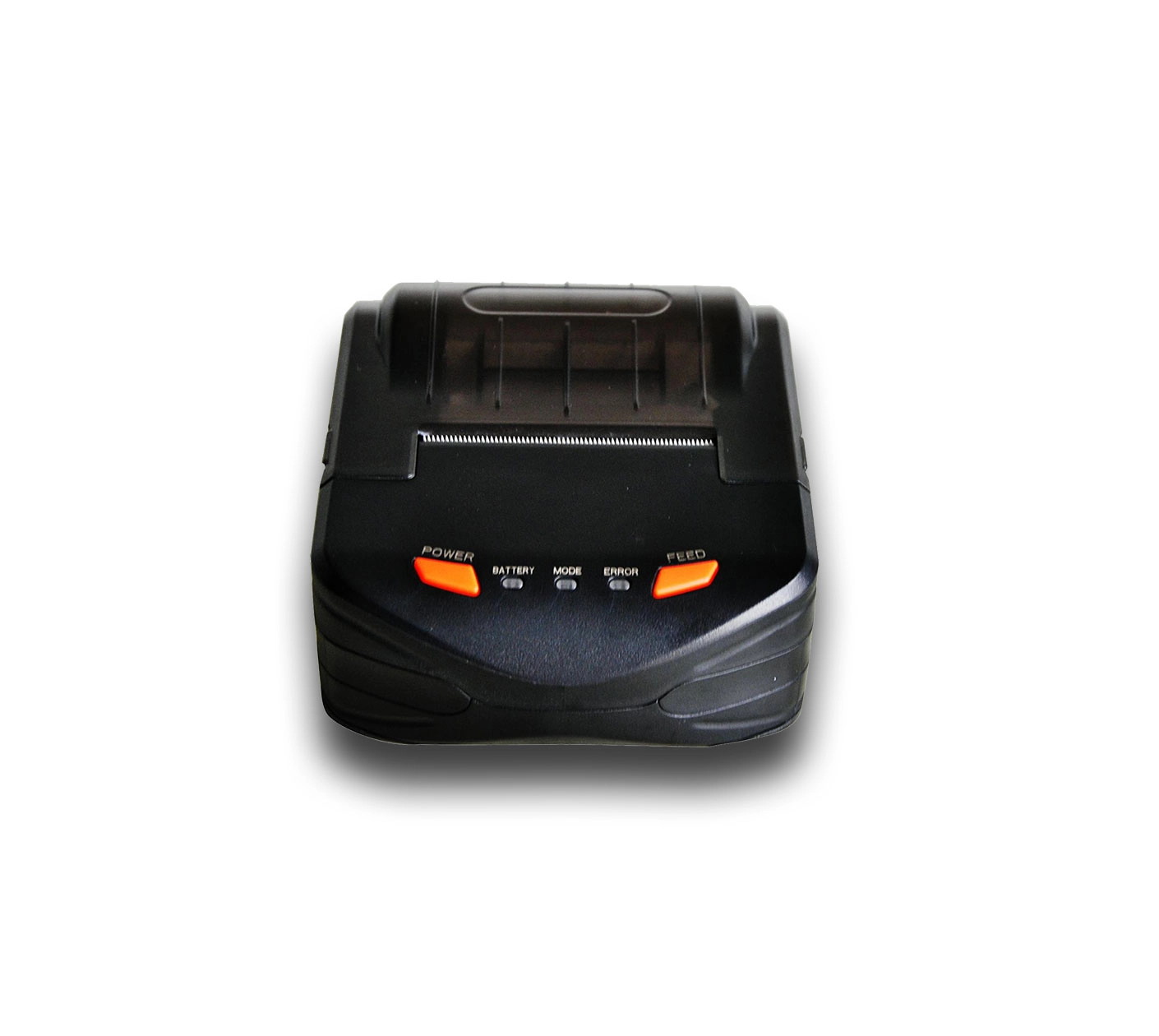

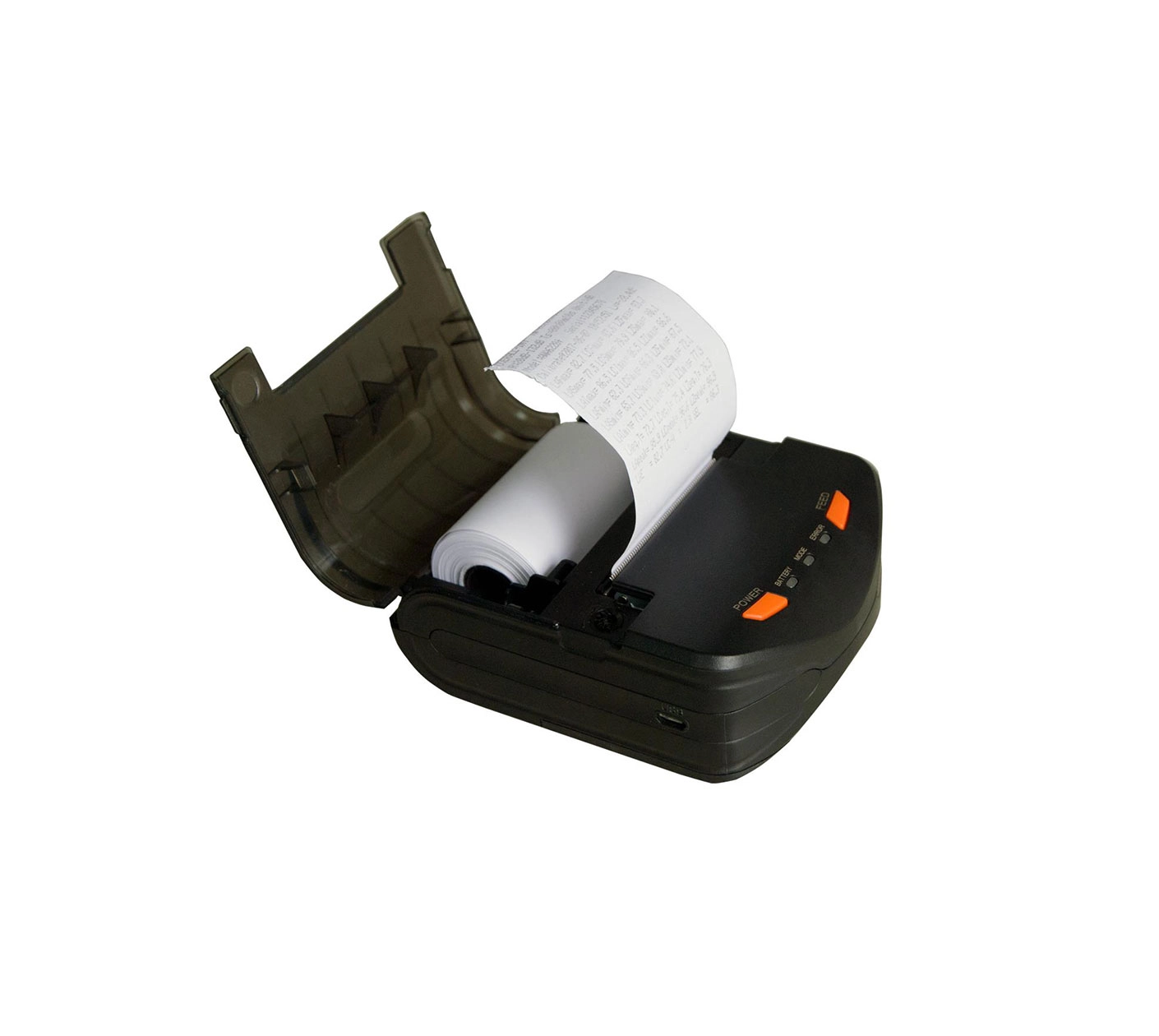

AH58F High Speed Printer
AH58F High Speed Printer AH58F High Speed Printer
AH58F High Speed Printer
Mini size printer, Bluetooth wireless printing, Dot Matrix printer
Print noise result out at measurement site
Noise emission receipt
Please select the operation you need
Aihua Instruments Aihua Instruments
Key Features


■  Small size, and easy to carry

■  Auto Sleep and wake-up function, low power dissipation can prolong the life of the battery.

■  Paper Out Detection, automated pagination printing

■  Black Mark Detection

■  2000mAh rechargeable polymer lithium battery which support for long time printing

■  Support for three connection modes: RS232, USB and 4.0 Dual mode Bluetooth

■  Support for double non-carbon paper, the printing data can be saved for a long time


Technical Specifications

    Printing Method

    Dot matrix

    Paper Type

    Normal paper, Black Mark paper

    Paper Width

    58mm

    Effective Printing Width

    48mm

    Resolution

    5dot/mm(127dpi)

    Dot Line

    240 dot

    Printing Speed

    6.6mm/S

    Paper Thickness

    60~85μm

    Content

    Chinese character: GB18030-2000

    BIG5 (16*16 and 24*24)

    Western language: ASCII, Codepage, user-defined characters (8*9 and 10*9)

    Barcode: UPCA,UPCE,EAN13,EAN8,CODE39,ITF25,CODABAR,

    CODE93,CODE128

    2D barcode:PDF417, QR CODE, DATA Matrix

    Power

    DC12V/2A power adapter or  7.4V / 2000mAh  rechargeable polymer lithium battery

    Connection

    RS232,USB, 4.0 Dual mode Bluetooth

    Dimension

    120(L)×97(W)×49(H)mm

    Weight

    250g( Excluding paper and battery )

    Roll diameter

    ≤40mm

    Operating Temp

    0℃~50℃

    Operating Humidity

    10%~80%

    Storage Temp

    -25℃~70℃

    Storage Humidity

    10%~95%

    Paper Loading Method

    Auto feeding paper

    Black Mark Detection

    Please refer to details in Annex 1

    Paper Out Detection

    When paper is out, the ERROR Indicator will light on, and the printer beeps and stop printing..

    Control Command

    Support ESC/POS

    Power Alarm

    When the battery power is low, the RED LED indicator  blinks

    Battery Charging

    2.5 hours

    Battery Duration

    Printing no less than 120m(25%print density)
