What standard does the AWA14423 microphone comply with?

The AWA14423 meets the IEC 61094-4 WS2F standard for prepolarized free-field measurement microphones, with a laser-welded diaphragm that ensures good stability and environmental adaptability.

Is the AWA14423 compatible with preamplifiers from other manufacturers?

Yes. The AWA14423 is compatible with IEPE (also called ICP or CCP) and conventional constant-current-source preamplifiers from various manufacturers.

What is the frequency range and sensitivity of the AWA14423?

The AWA14423 has a frequency range of 3.15 Hz to 20 kHz and a typical sensitivity of 50.0 mV/Pa measured at 250 Hz ±1.5 dB.

What is the dynamic range and noise floor of the AWA14423?

The AWA14423 offers a dynamic range of 16 dBA to 146 dB, with a noise floor of 16 dBA or less, suitable for both quiet and high-level acoustic measurements.

What materials are used and how durable is the AWA14423?

The AWA14423 uses a second-generation alloy diaphragm, a high-strength protective grille, and synthetic corundum insulators, providing superior corrosion resistance, high-temperature stability, shock resistance, and overall durability compared to traditional nickel and stainless steel diaphragms.

Does the AWA14423 come with a calibration certificate?

Yes. Each AWA14423 microphone is factory calibrated using traceable calibration equipment and shipped with a calibration certificate. Annual recalibration is recommended.

What is the operating temperature range of the AWA14423?

The AWA14423 can operate within a temperature range of -30°C to +80°C, with a temperature coefficient of -0.01 dB/°C at 250 Hz between -10°C and 50°C.

What is the warranty for the AWA14423 microphone?

The AWA14423 comes with a one-year warranty, and Aihua Instruments provides comprehensive after-sales support services.

What applications is the AWA14423 microphone suitable for?

The AWA14423 is widely used for environmental noise monitoring, building acoustic testing, product noise characteristic analysis, acoustic laboratory calibration, acoustic research, and environmental compliance assessment.

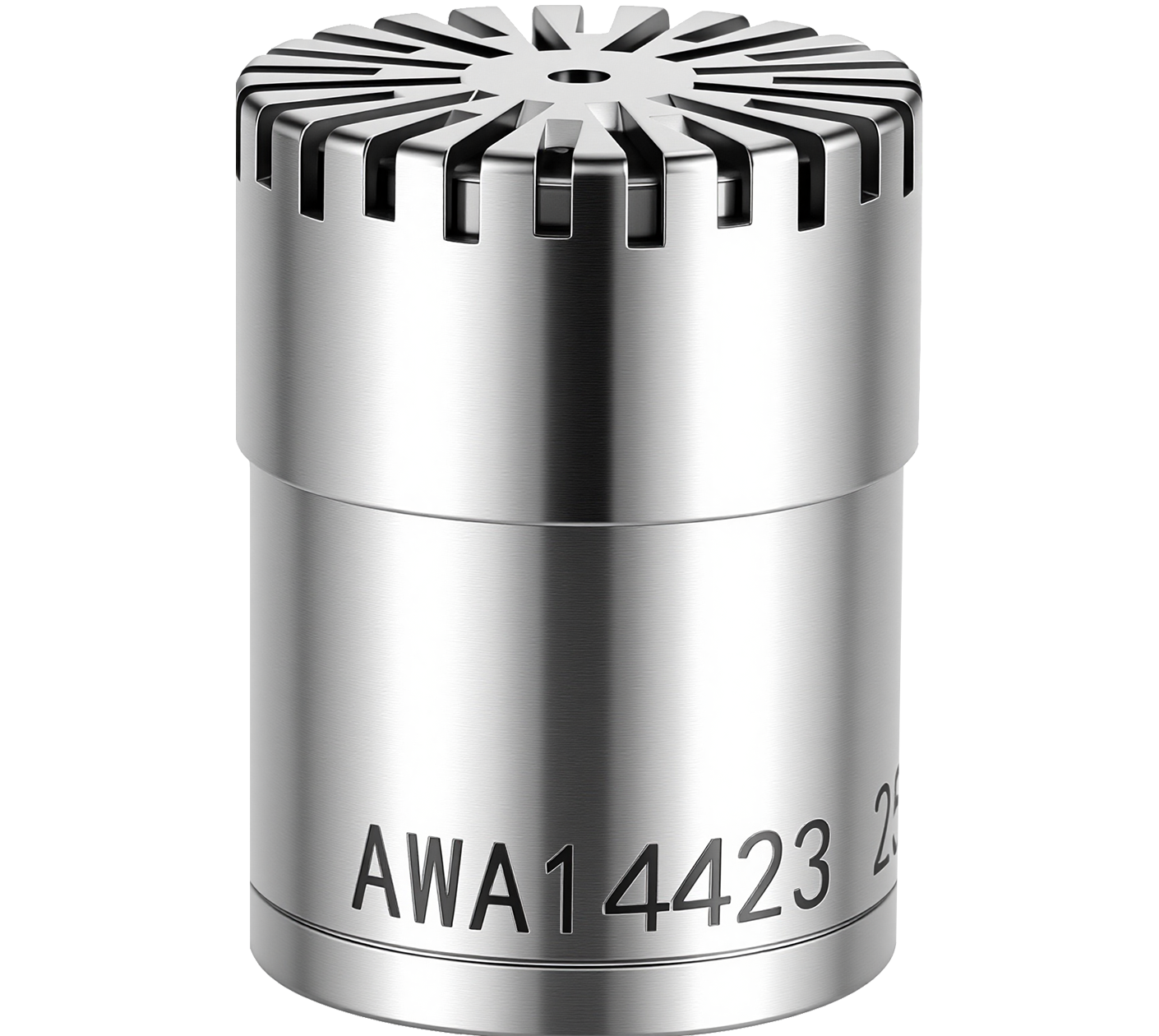

AWA14423 1/2" Free-Field Measurement Microphone

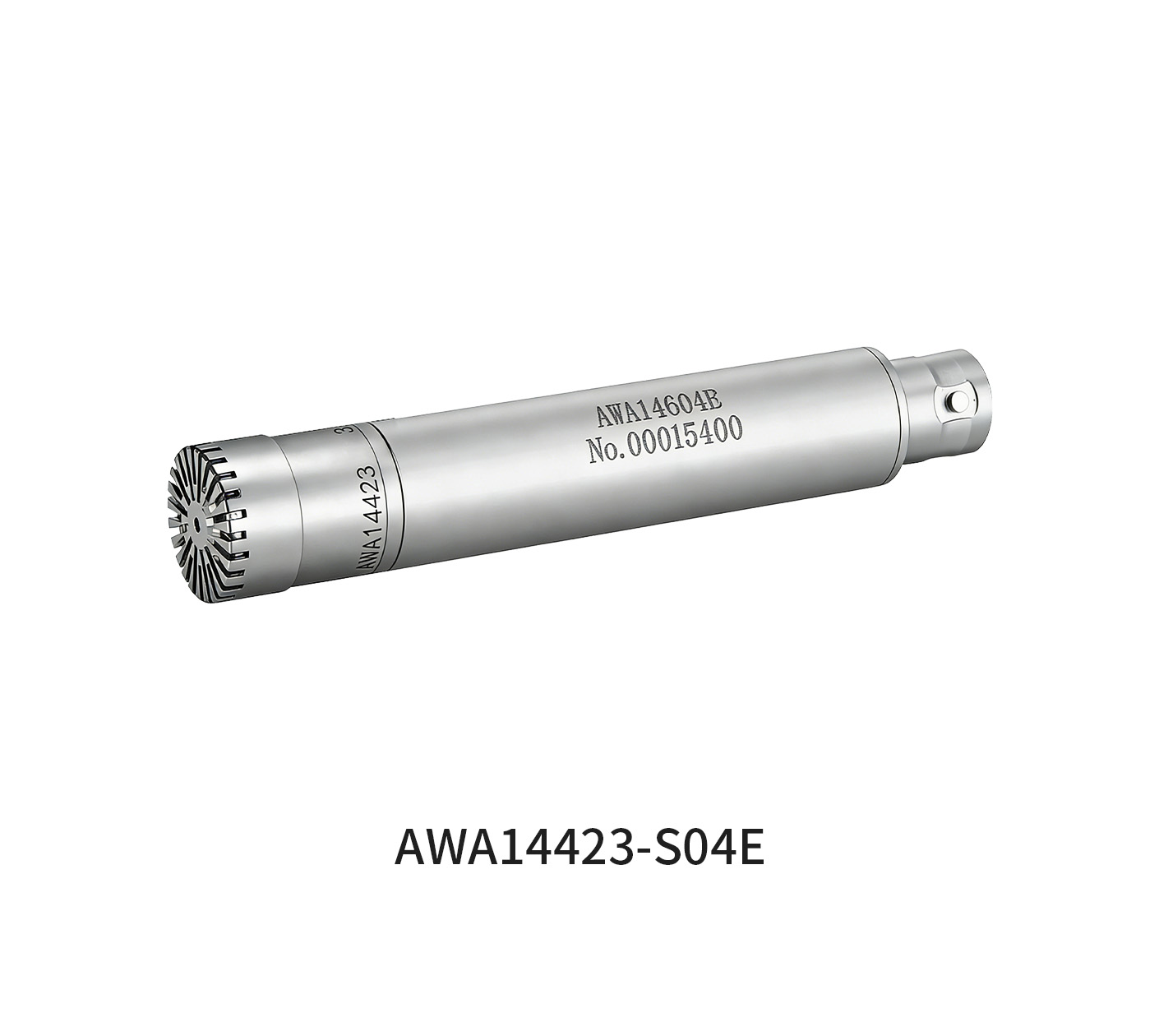

Name: AWA14423 1/2” Prepolarized Free-Field Measurement Microphone
Brand: Aihua Instruments
SKU: AWA14423
Availability: InStock

Key Features Product Uses Technical Specifications

Key Features

Compatibility

Works with IEPE and conventional preamplifiers
The AWA14523 infrasound wideband Microphone is compatible with IEPE or conventional preamplifiers from various manufacturers. IEPE is a general-purpose constant-current-source power-supply technology used in preamplifiers. Different manufacturers may use different names, such as ICP (Integrated Circuit Constant Current Source) and CCP (Constant Current Source).
Calibration

Factory calibrated with traceable certification
Each measuring microphone is calibrated at the factory using traceable calibration equipment and comes with a calibration certificate. Recalibration is recommended at least annually.
Quality and warranty

Built for stability and durability
The microphones utilize a second-generation alloy diaphragm, a high-strength protective grille, and synthetic corundum insulators, making them stable and reliable measuring microphones on the market. Compared to traditional nickel and stainless steel, the alloy diaphragm offers superior corrosion resistance, high-temperature stability, shock resistance, and specific strength. All microphones are assembled and tested in a Class 1000 cleanroom to ensure product consistency and stability. The microphones come with a one-year warranty, and we will provide users with comprehensive after-sales support services.

Product Uses

Environmental Noise Monitoring

Accurate measurement and long-term monitoring of traffic, industrial, and community noise levels

Building Acoustic Testing

Evaluation of sound insulation performance, reverberation time, and interior acoustic treatment effectiveness

Product Noise Characteristic Analysis

Spectral analysis and noise source identification for household appliances, electronics, and mechanical equipment

Acoustic Laboratory Calibration

Reference sound source calibration and equipment performance verification in anechoic and semi-anechoic free-field environments

Acoustic Research

Widely used in laboratory acoustic experiments and research.

Environmental Compliance Assessment

Boundary noise emission testing for factories, supporting environmental impact assessments and regulatory compliance

Technical Specifications

AWA14423 Prepolarized Free Field Measuring Microphone
Field Type	Free Field	Lower limit frequency (-3dB) (Hz)	3.15
Diameter	1/2 Inch	Operating Temperature (°C)	-30～+80
IEC 61094	WS2F	Temperature coefficient (dB/℃) (@250 Hz)	-0.01（-10 ℃～50 ℃）
Polarization Voltage (V)	0	Static pressure coefficient (dB/kPa)	-0.01
Sensitivity (mV/Pa) (@250 Hz±1.5 dB)	50.0	Operating humidity range (%RH)	0～100
Frequency range (Hz)	3.15～20k	Height with grid (mm)	17.5
Capacitance (pF) (@250 Hz)	18	Diameter with grid (mm)	13.2
Dynamic Range	16 dBA～146 dB	Height without grid (mm)	16.6
Noise floor (dBA)	≤16	Diameter without grid (mm)	12.7
Voltage Equalization Method	Post-Equalization	Preamplifier Fitting Thread	11.7 mm-60 UNS

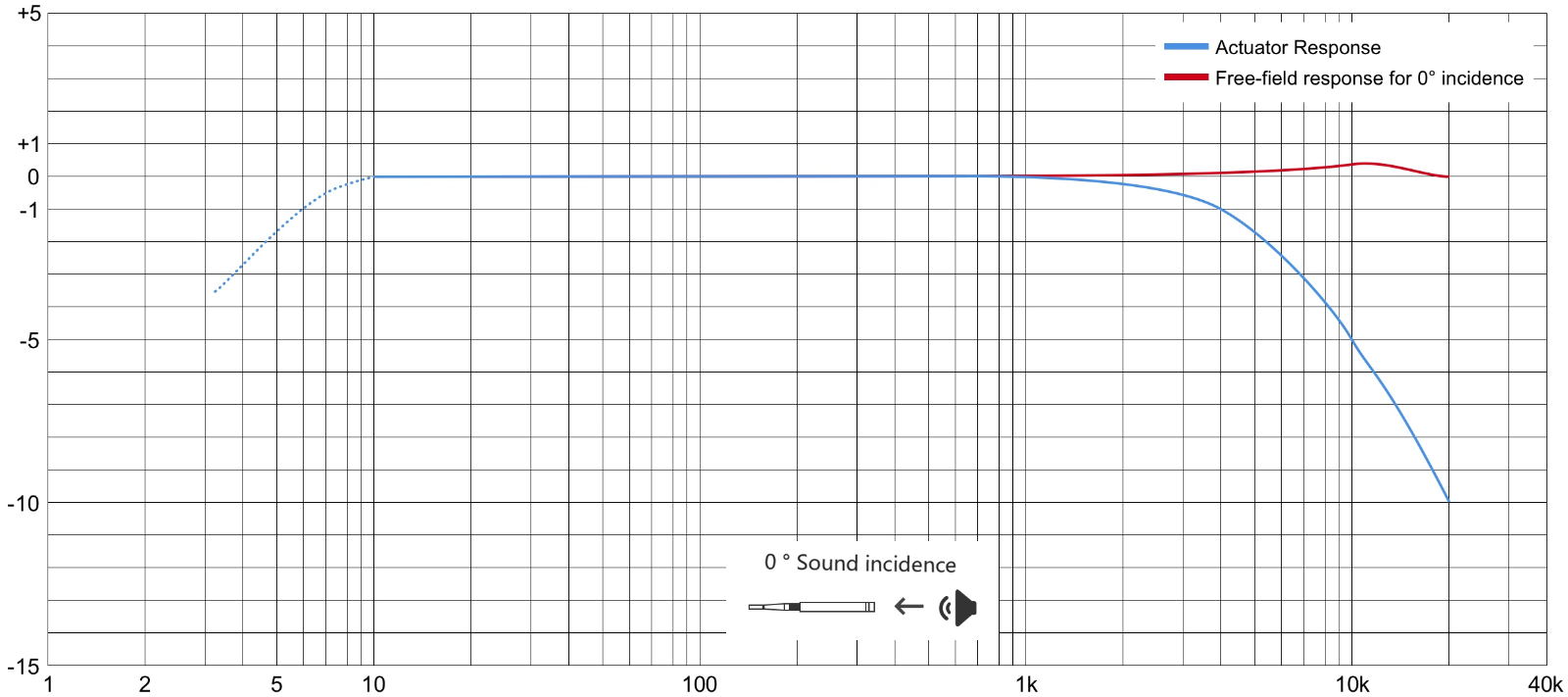

Frequency Response

Dimensions
