Noise is everywhere — factory floors, busy roads, construction sites. But knowing something is "loud" is not enough. Whether you are a safety officer, an environmental engineer, or a quality control inspector, you need precise, repeatable measurements that withstand regulatory scrutiny. This guide walks you through how to properly measure noise levels and which tools you need to do it right.

What Is Noise Level and Why Does It Matter?

Sound is measured in decibels (dB) — a logarithmic scale that reflects how the human ear perceives loudness. A few reference points worth knowing:

· 30 dB — whisper

· 60–70 dB — normal conversation

· 85 dB — the threshold where prolonged exposure begins to damage hearing

· 110–140 dB — industrial machinery and jet engines

For occupational and environmental assessments, A-weighted decibels (dBA) are the standard unit, adjusted to match the human ear's frequency sensitivity. Noise measurement is required across workplace safety audits, industrial equipment surveys, vehicle noise assessments, and environmental compliance reporting — and in all of these, a calibrated sound level meter is the essential starting point.

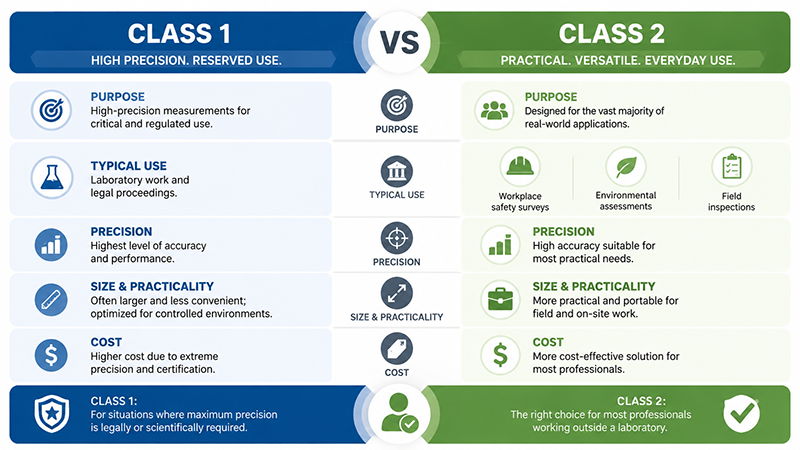

Class 1 vs. Class 2: Which Meter Do You Need?

Under the IEC 61672 standard, sound level meters fall into two classes. Class 1 instruments are high-precision devices reserved for laboratory work and legal proceedings. Class 2 meters cover the vast majority of real-world applications — workplace safety surveys, environmental assessments, and field inspections — at a more practical size and cost. For most professionals working outside a laboratory, Class 2 is the right choice.

How to Measure Noise Level: 5 Steps

Step 1 — Choose the right settings.

Select A-weighting (dBA) for general environmental or occupational noise. Use C-weighting when assessing industrial peak levels with significant low-frequency content.

Step 2 — Calibrate before every session.

Use an acoustic calibrator to verify the meter reads a known reference level — typically 114 dB at 1 kHz — before taking any measurements. Uncalibrated data can be invalidated in compliance audits entirely.

Step 3 — Position the meter correctly.

Hold it at ear height, at arm's length from your body, away from walls and reflective surfaces. For outdoor surveys, mount on a tripod 3–5 feet above ground in an open area.

Step 4 — Take the reading.

Set time weighting to Fast (F) for changing noise sources like passing vehicles, or Slow (S) for steady continuous noise. Where possible, record Leq — the equivalent continuous sound level — rather than a single instantaneous value, as it gives a far more representative picture of actual exposure.

Step 5 — Document your results.

Compare readings against OSHA's 90 dBA 8-hour limit or NIOSH's recommended 85 dBA threshold. Record readings with timestamps and calibration logs for your compliance file.

AWA5636 Handheld Noise Meter — Accurate, Portable, Ready for the Field

Bulky equipment, hard-to-read displays, and manual range switching slow you down on-site. The AWA5636 solves all three: its pocket-sized form factor travels with you anywhere, the 128 × 64 OLED display stays sharp and readable even in direct sunlight, and the auto-range function adjusts automatically to the sound environment — so you focus on measuring, not configuring.

AWA5636 Handheld Noise Meter

The AWA5636 Handheld Noise Meter is a professional Class 2 sound level meter featuring a digital multifunction design with flexible modular configuration.

Fully compliant with IEC 61672-1:2002 Class 2 standard, it delivers reliable and accurate noise measurement performance for a wide range of industrial and environmental applications.

     View Details →

Fully compliant with IEC 61672-1:2002 Class 2, it delivers audit-ready accuracy across industrial noise surveys, environmental assessments, and equipment testing. Its modular design means it adapts to a range of tasks without requiring multiple instruments.

Visit hzaihua.com to view full specifications and request a quote

Summary

Accurate noise measurement depends on the right instrument, proper calibration, correct positioning, and thorough documentation. Follow these five steps consistently, and your data will be reliable, repeatable, and compliant. If you need a meter that matches professional accuracy with genuine portability, the AWA5636 is a practical starting point.
