Microphone extension cable
Accessories
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
Microphone Extension Cable.png
AWA8732 Microphone Extension Cable.png
AWA8740 Microphone Extension Cable.png
AWA8742 Microphone Extension Cable.png
AWA8743 Microphone Extension Cable.png

Microphone extension cable

Connects microphones and preamplifiers to sound level meters or other acoustic instruments

Available with various connector types for cross-compatibility between equipment

Suitable for extending microphone units to analyzers and other measurement devices

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us
    icon1Descriptionicon3Performance
    product details
    Microphone Extension Cable
    01

    Product Description

    Extension cables are primarily used to connect microphones and preamplifiers, allowing them to be positioned at a distance from the main instrument. They also serve as connector adapters between different plug types. These cables are commonly used to connect a sound level meter to its microphone and preamplifier, as well as to connect microphone units to other acoustic instruments and various types of analyzers.

    System Configuration

    Model

    Plug adapter

    Application

    Standard cable length

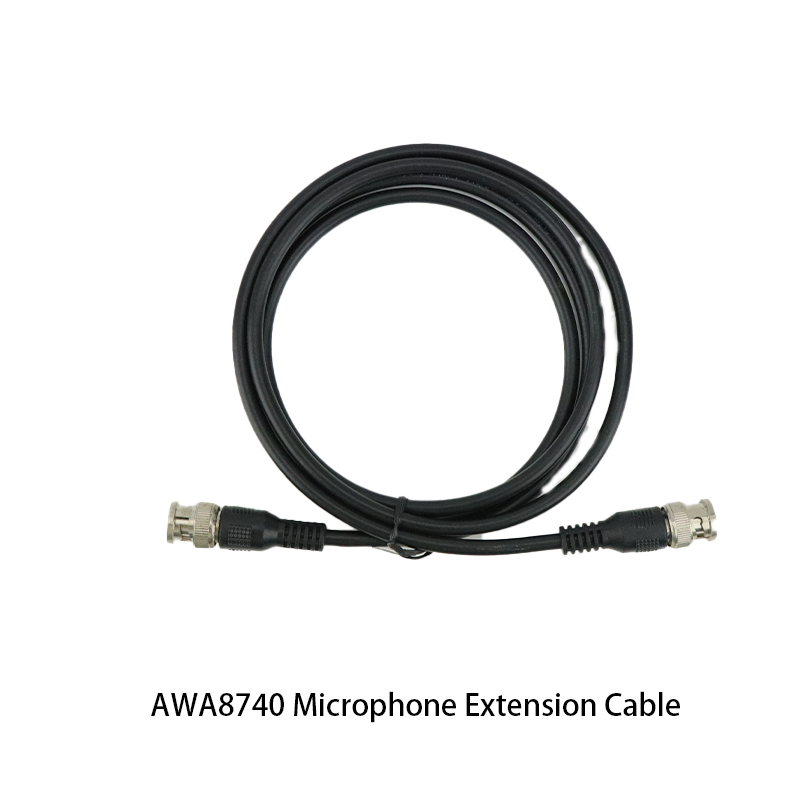

    AWA8740

    BNC- BNC

    Suitable for connecting an ICP preamplifier to the main unit

    2m

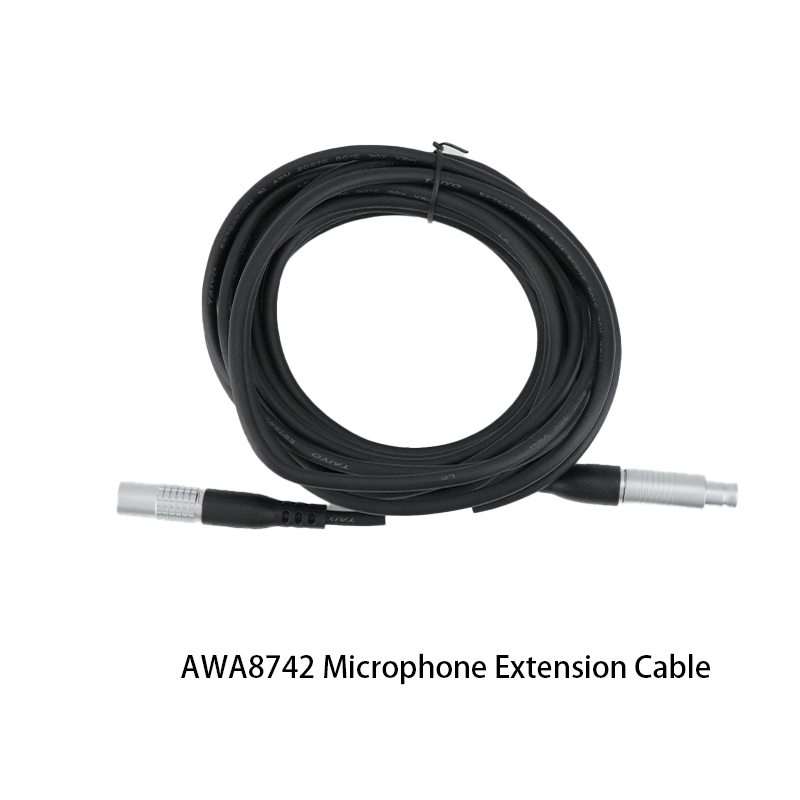

    AWA8742

    LEMO- LEMO

    Suitable for connecting a preamplifier with a LEMO connector to a main unit with a LEMO connector

    1m

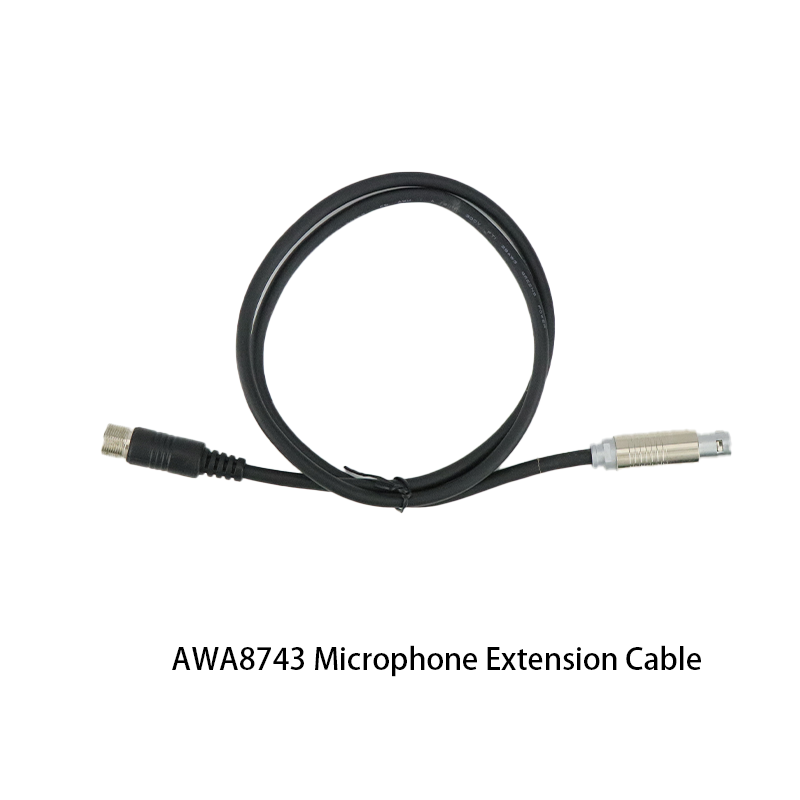

    AWA8743

    X9- LEMO

    Suitable for connecting a preamplifier with an X9 connector to a main unit with a LEMO connector

    1m

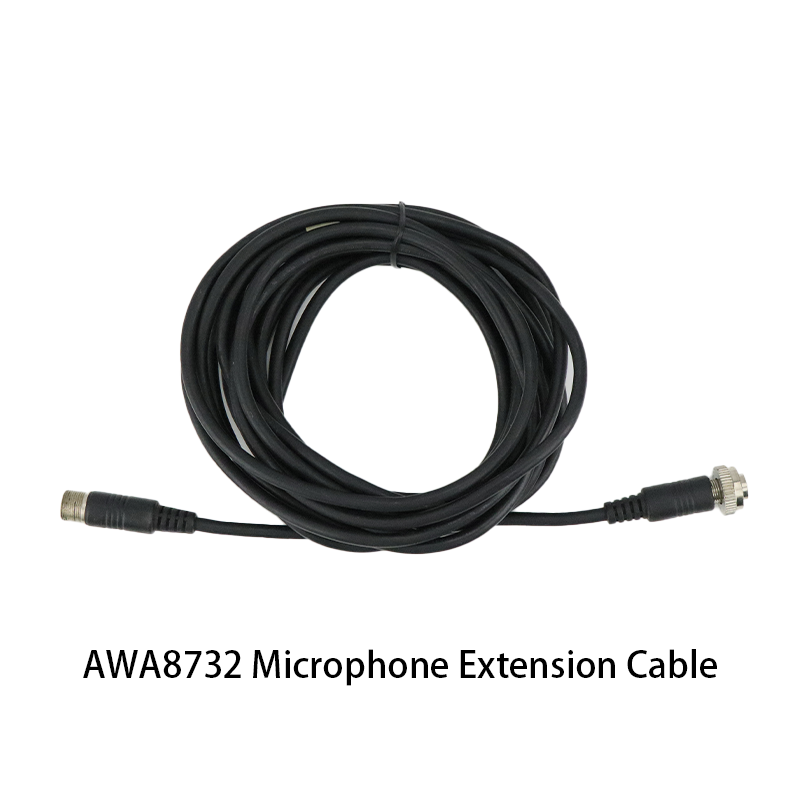

    AWA8732

    X9- X9

    Suitable for connecting a preamplifier with an X9 connector to a main unit with an X9 connector

    2.5m
