AWA1600A Type-C Smartphone Test Microphone
Microphone
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA1600A Test Microphone02.jpg
AWA1600A Test Microphone01.jpg
AWA1600A Test Microphone03.jpg

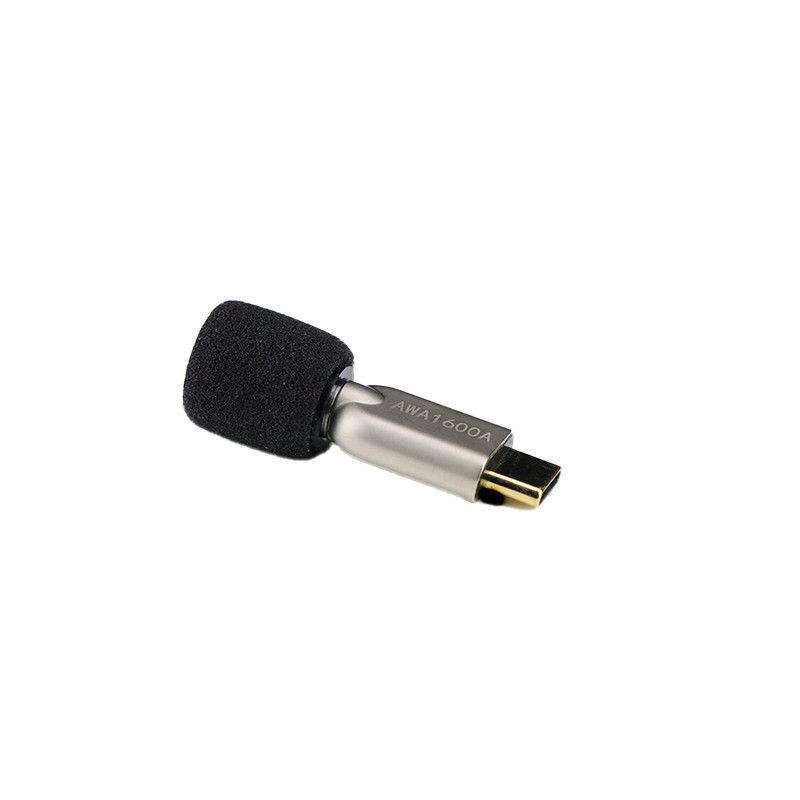

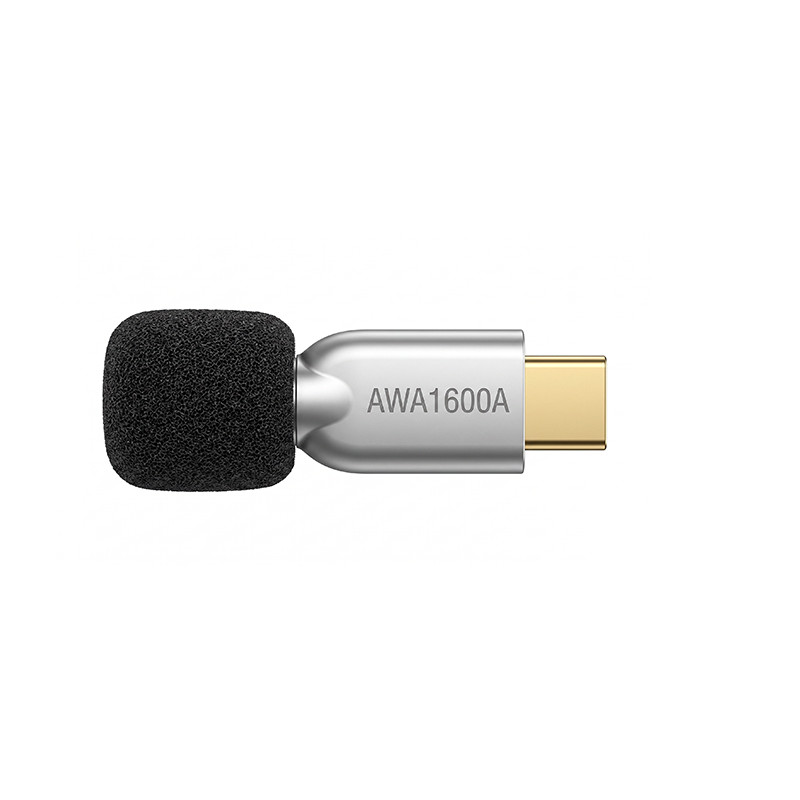

AWA1600A Type-C Smartphone Test Microphone

Ultra-compact plug-and-play test microphone designed for fast deployment and easy operation

Supports Type-C direct connection to Android smartphones, no external power supply required

Ideal for short-term environmental noise monitoring in residential areas, transport hubs, industrial and construction sites

Real-time noise data transmission via mobile app with cloud server upload capability

High measurement capability with 20 Hz – 12.5 kHz frequency response

Low noise floor performance: < 35 dBA, suitable for general environmental noise testing

Supports up to 110 dB measurement range (at 250 Hz) with stable dynamic performance

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance
    product details
    AWA1600A Test Microphone03
    01

    Product Description

    The AWA1600A test microphone is small and plug-and-play. It is suitable for short-term noise measurements in residential areas, transportation hubs, industrial sites, and construction sites. The instrument connects to a mobile phone and a noise acquisition app via a Type-C port to send the measured noise data to a server, allowing for real-time measurement of ambient noise levels and uploading to the server.

    Product Video

    Features

    Compact 1/4-inch measurement microphone designed for mobile noise testing applications
    Direct USB Type-C interface for Android smartphone integration
    Supports dedicated noise acquisition app for real-time measurement and data upload
    Frequency response range: 20 Hz – 12.5 kHz (±3 dB)
    Noise floor: < 35 dBA for general environmental monitoring
    Measurement upper limit: 110 dB (at 250 Hz)
    Dynamic range: 75 dB for stable environmental noise capture
    Ultra-lightweight structure: 36.3 × 12.7 × 7.0 mm, approx. 4.6 g
    Low power consumption: < 40 mA operating current
    Android-based system compatibility with major smartphone brands
    Requires recalibration after device replacement due to system variation
    OEM/ODM customization available. Learn more.

    Main Performance Indicators

    AWA1600A Test Microphone

    Microphone Head Diameter

    1/4 inches

    Frequency range

    20 Hz~12.5k Hz (±3 dB)

    Noise floor

    Less than 35 dBA

    Upper limit of measurement

    110 dB (250 Hz)

    Dynamic range

    75 dB

    Dimensions

    36.3 × 12.7 × 7.0 (mm)

    Output Interface

    USB Type-C

    Operating Temperature

    20℃ ~ 60℃

    Operating Current

    < 40 mA

    Weight

    Approx. 4.6 g

    Operating System

    Android

    Compatible Models

    Xiaomi, Redmi, Huawei, Honor Phones
