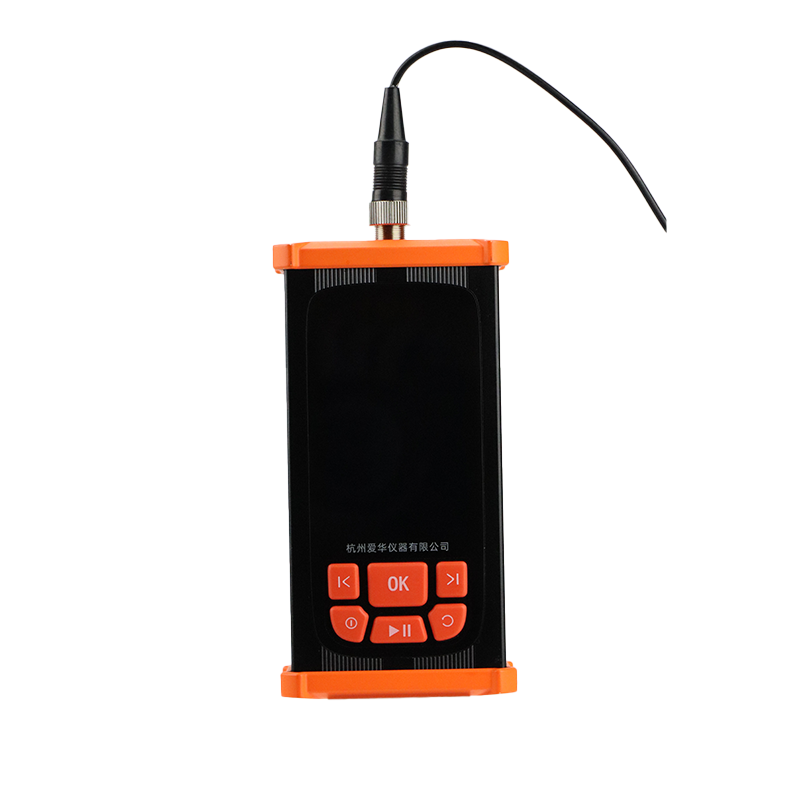

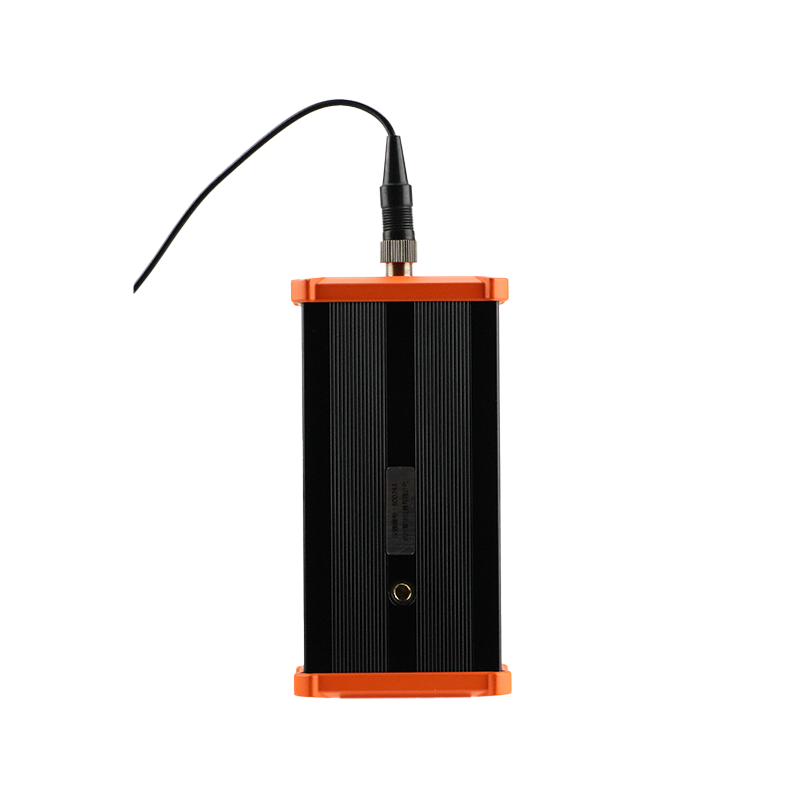

YT3002 Portable FFT Vibration Analyzer for Industrial Diagnostics

Product Model

YT3002 Portable FFT Vibration Analyzer for Industrial Diagnostics

Sensor

YT81106 accelerometer sensor, reference sensitivity: 2.8 pC/(m · s²); weight: 16.5g

Frequency Range

Acceleration: 10 Hz~8 kHz Velocity: 10 Hz~4kHz

Displacement: 20 Hz~200 Hz

Measurement Range

Acceleration: 0.01m/s²~2000 m/s²;

Velocity: 0.1 mm/s~20000 mm/s;

Displacement: 0.02 mm~200 mm.

Note: The measurement range of sensors with different sensitivities will vary accordingly.

Measured value

RMS, peak, and pp of acceleration, velocity, and displacement,

as well as peak factor (CF) of acceleration

Filter

High-pass filter: 1Hz, 3Hz, 10 Hz, 1kHz, OFF Low-pass filter: 1kHz, 5kHz, 20 kHz, OFF

Sampling frequency

48 kHz

Average time

1s or 8s

Time waveform

Displays the change curve of measured values over approximately 70 seconds

FFT analysis function

a) Sampling rate: 48 kHz

b) FFT points: 512, 1024, 2048, 4096, 8192

c) Frequency resolution: minimum 5.86Hz

d) Optional window functions: rectangular window, Hanning window,

Blackman window, flat-top window, etc.

Data storage

4GB internal storage, supports up to 64GB TF card

Display

3.5-inch color screen display (320 × 480)

Recording function

a) File format: WAV format;

b) Recording time: maximum single recording time of 1 hour;

c) Playback: can be played back using the instrument or a PC.

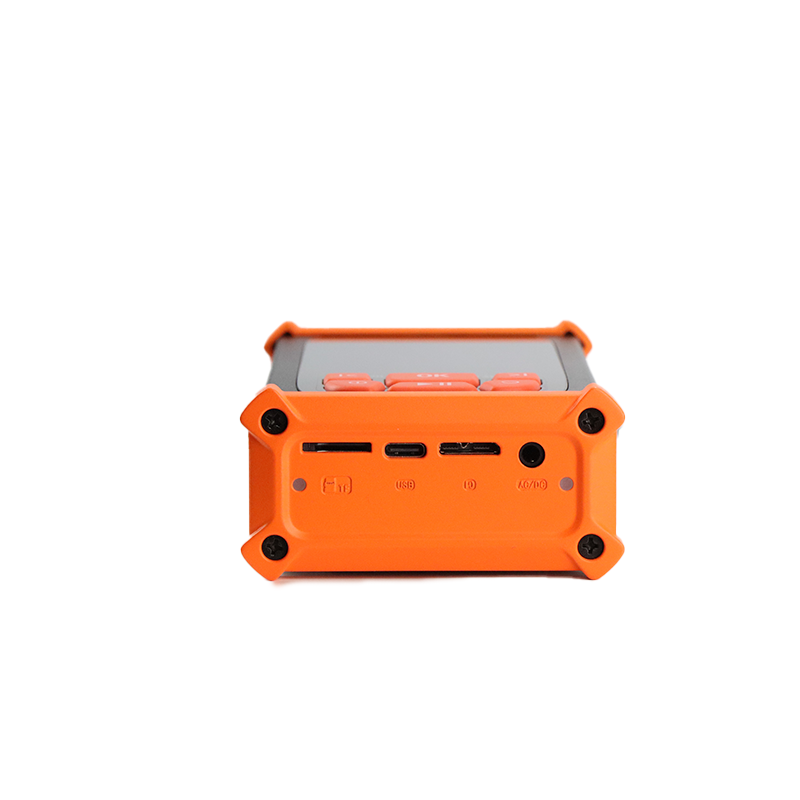

Output interface

AC (Alternating Current), DC (Direct Current), 10 serial ports, USB interface

Power Supply

Built-in lithium battery, can be used continuously for 13 hours when fully charged;

can also use 5V/2A external power supply;

Operating Temperature

-20℃~60℃

Weight

1.1kg (including vibration sensor)

Calibration

Using ACE5003 vibration calibrator, frequency 159.2Hz,

acceleration 10 m/s²(RMS). Secured with M5 bolts.
