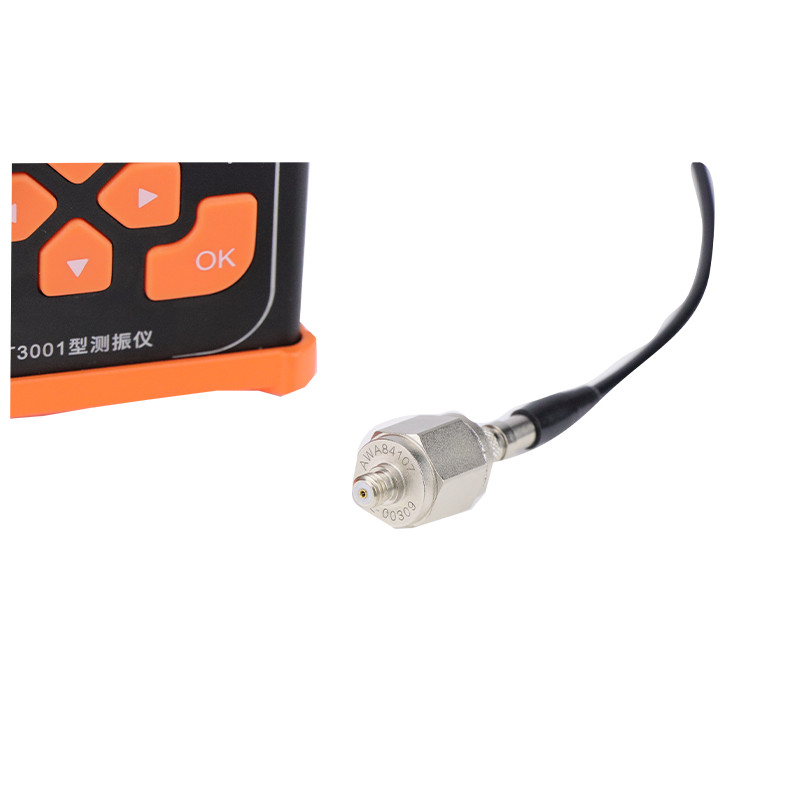

YT3001B Vibration Meter04.jpg

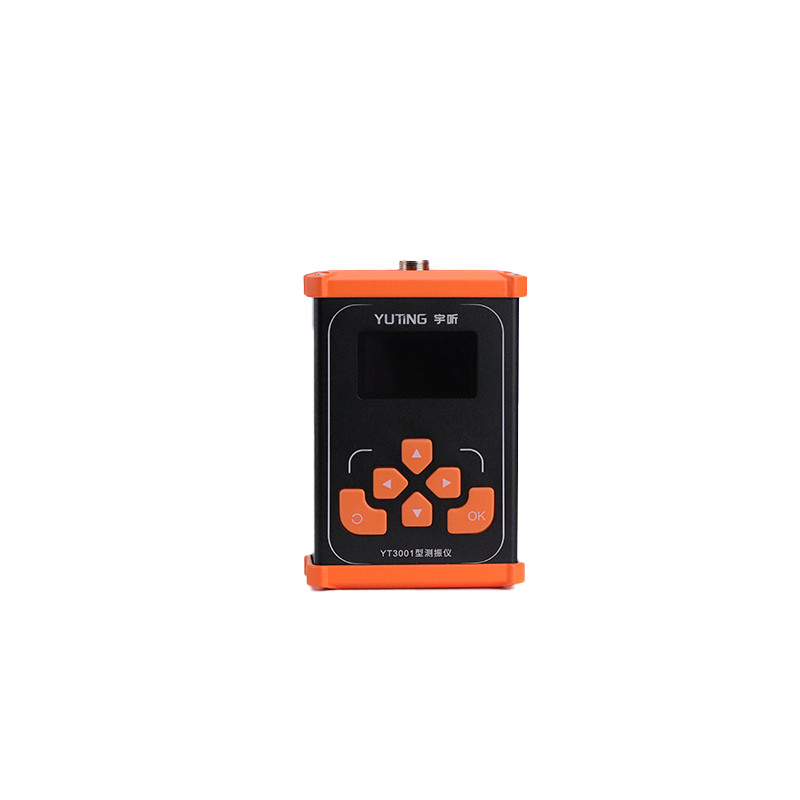

YT3001A Vibration Meter05.jpg

YT3001B High-Sensitivity Multi-Parameter Vibration Meter

Measures acceleration from 0.001 to 2000 m/s² range

Measures velocity from 0.1 to 20000 mm/s range

Measures displacement from 0.005 to 200 mm range

Simultaneous RMS, Peak, and Peak-to-Peak vibration analysis

High-sensitivity sensor with 2.8 pC/(m·s²) output sensitivity

Wide frequency response up to 8 kHz for vibration analysis

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance icon3Application
    product details
    YT3001A Vibration Meter05
    01

    Product Description

    The YT3001B Vibration Meter is a precision instrument engineered to measure acceleration, velocity, and displacement. It features independent display capabilities for three essential metric parameters: RMS (Root Mean Square), Peak, and Peak-to-Peak (P-P) values.
    Fully compliant with the JJG 676-2019 Verification Regulation of Vibration Meters, this instrument is widely utilized across various sectors, including industrial manufacturing, environmental protection, occupational health and safety, academic education, and scientific research.

    Product Video

    Features

    Wide Acceleration Measurement Range: Covers 0.001 to 2000 m/s², suitable for both minute vibrations and high-intensity impact measurements

    Wide Velocity Measurement Range: Covers 0.1 to 20,000 mm/s, accommodating a broad spectrum of industrial and mechanical vibration levels

    Wide Displacement Measurement Range: Covers 0.005 to 200 mm, enabling accurate low-frequency displacement analysis

    Simultaneous Multi-Mode Analysis: Measures RMS, Peak, and Peak-to-Peak (P-P) values at the same time for comprehensive vibration fault diagnosis
    High-Sensitivity Sensor Design: YT81106 sensor with 2.8 pC/(m·s²) sensitivity ensures accurate signal capture across the full measurement range

    Broad Frequency Coverage: Acceleration response up to 8 kHz, velocity up to 4 kHz, and displacement from 20 Hz to 200 Hz, supporting diverse vibration analysis needs
    Compliant with National Regulations: Fully conforms to the JJG 676-2019 Verification Regulation of Vibration Meters, ensuring traceable and reliable measurement results
    Compact and Portable: Lightweight design (270 g) suitable for on-site industrial inspection, environmental monitoring, and educational or research applications

    Main Performance Indicators

    Model

    YT3001B

    Sensor

    YT81106

    Sensitivity

    2.8 pC/(m.s2)

    Measure Range

    1 pC/( m.s2) ~as a reference (effective value)

    Acceleration: 001m/ s2~2000m/ s2

    Velocity: 0.1mm/s~20000mm/s

    Displacement: 0.005mm~200mm

    Frequency Range

    Acceleration: 10 Hz – 8 kHz

    Velocity: 10 Hz – 4 kHz

    Displacement: 20 Hz –200 Hz

    Main measurement indicators

    Simultaneously measures the RMS, Peak, or Peak-to-Peak values

    Display

    128×64 Dot Matrix OLED Display

    Power

    1) Lithium Battery 2) External 5V/2A Power Supply

    Quality

    270g

    Temperature

    -10°C ~ +50°C

    APPLICATION

    01

    Ambient Vibration in Daily Life Testing
    02

    Industrial Boundary Vibration Testing
    03

    Construction Vibration
    04

    Traffic-Induced Ground Vibration
