YT3001A Handheld Multi-Parameter Vibration Meter
Vibration Meters
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
YT3001A Vibration Meter03.jpg
YT3001A Vibration Meter04.jpg

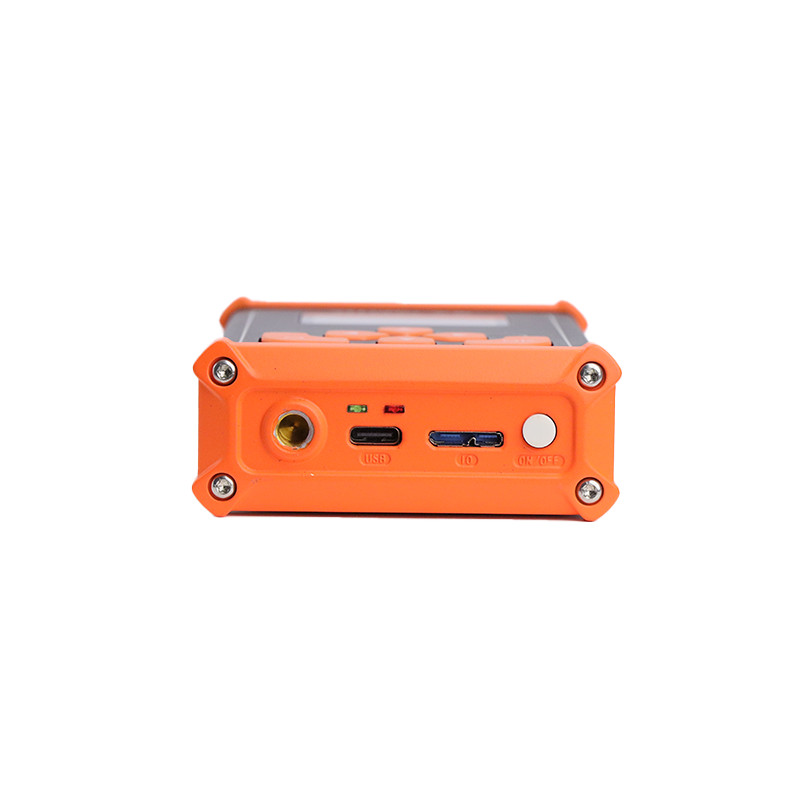

YT3001A Vibration Meter02.jpg

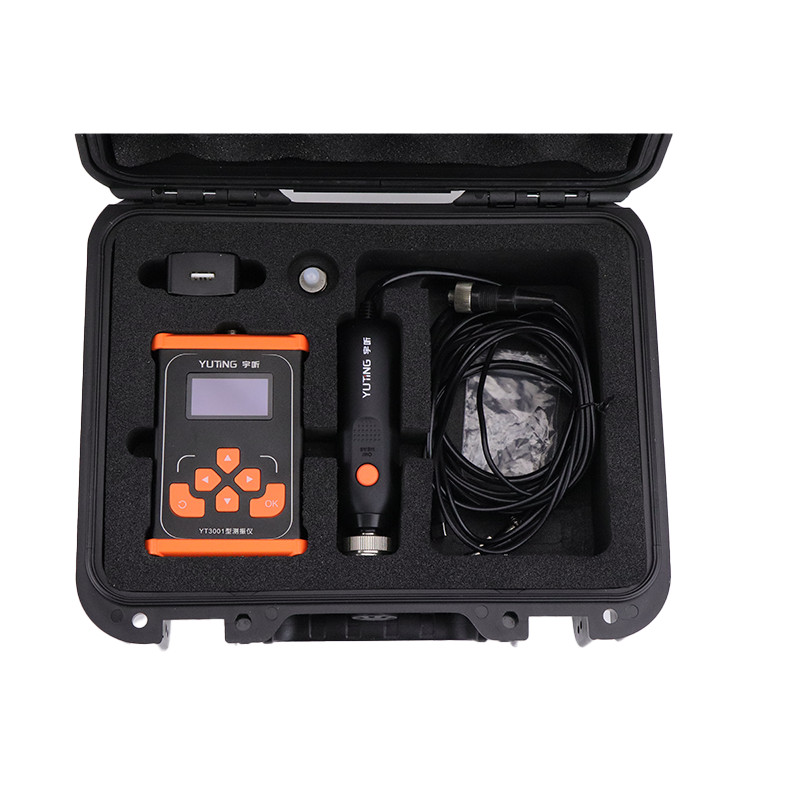

YT3001A Vibration Meter01.jpg

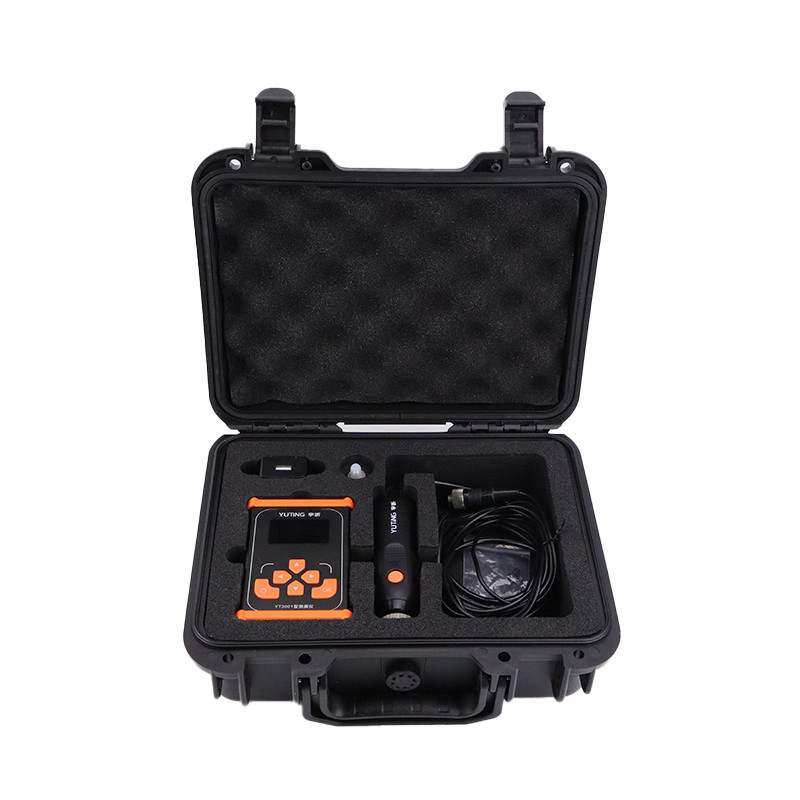

YT3001A Vibration Meter05.jpg

YT3001A Handheld Multi-Parameter Vibration Meter

One-key switching for acceleration, velocity, and displacement measurement

Simultaneous RMS, Peak, and Peak-to-Peak vibration analysis modes

Complies with JJG 676-2019 national vibration meter regulation

Wide frequency range covering low to high-frequency vibration signals

Clear OLED display for real-time multi-parameter visualization

Suitable for industrial fault diagnosis and equipment monitoring

Supports scientific research, education, and occupational safety use

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance icon3Application
    product details
    YT3001A Vibration Meter01
    01

    Product Description

    The YT3001A Vibration Meter is a precision instrument engineered to measure acceleration, velocity, and displacement. It features independent display capabilities for three essential metric parameters: RMS (Root Mean Square), Peak, and Peak-to-Peak (P-P) values.
    Fully compliant with the JJG 676-2019 Verification Regulation of Vibration Meters, this instrument is widely utilized across various sectors, including industrial manufacturing, environmental protection, occupational health and safety, academic education, and scientific research.

    Product Video

    Features

    One-Key Three-Parameter Switching for Comprehensive Fault Diagnosis
    Simultaneously measures Acceleration, Velocity, and Displacement while supporting RMS, Peak, and Peak-to-Peak (P-P) modes. It perfectly satisfies a complete range of analytical demands—from high-frequency impacts to low-frequency displacements.
    Strict Compliance with National Regulations for Authoritative & Reliable Data
    Engineered and calibrated in strict accordance with the JJG 676-2019 Verification Regulation, ensuring fully traceable and compliant measurement results that can be reliably used for issuing formal inspection reports.
    Multi-Field Portability & Elevated Field Testing Efficiency
    Featuring a highly compact design and intuitive operation, this portable meter is ideal for various applications including factories, environmental monitoring, occupational health, education, and scientific research. One-key measurement drastically boosts on-site workflows.

    Main Performance Indicators

    Model

    YT3001A

    Sensor

    YT81100

    Sensitivity

    1 pC/(m.s2)

    Measure Range

    1 pC/( m.s2) ~as a reference (effective value)

    Acceleration: 0.02 m/ s2 ~200 m/ s2

    Velocity: 0.05mm/s~2000mm/s

    Displacement: 0.005mm~20mm

    Frequency Range

    Acceleration: 10 Hz – 15 kHz

    Velocity: 10 Hz – 4 kHz

    Displacement: 10 Hz – 1 kHz

    Mainmeasurement indicators

    Simultaneously measures the RMS, Peak, or Peak-to-Peak values

    Display

    128×64 Dot Matrix OLED Display

    Power

    1) Lithium Battery 2) External 5V/2A Power Supply

    Weight

    300g

    Temperature

    -10°C ~ +50°C

    APPLICATION

    01

    Ambient Vibration in Daily Life Testing
    02

    Industrial Boundary Vibration Testing
    03

    Construction Vibration
    04

    Traffic-Induced Ground Vibration
