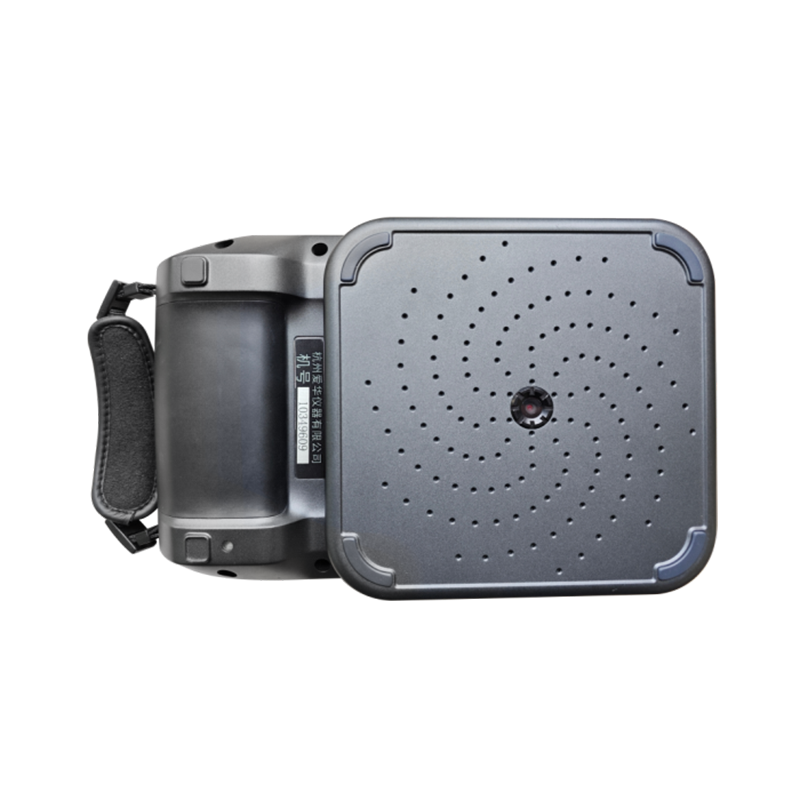

YT2001 Acoustic imager rear view.png

YT2001 Advbanced Acoustic Imager

See Sound in Real Time
Capture steady-state and transient sound sources with a 25 FPS high-speed refresh rate — fast enough to track moving or fleeting sound events as they happen

Pinpoint Accuracy, Every Time
Choose between 136-channel MEMS digital microphone arrays for precise, reliable sound source localization, even in complex industrial environments.

Cut Through the Noise
Adjustable frequency band filtering actively suppresses interference, so you get clean, accurate detection results even on noisy factory floors.

Instant Leak Quantification
Don't just find gas leaks — measure them. Real-time leak rate calculation combined with intelligent auto-focusing locates and quantifies leakage sources in seconds.

Advanced Partial Discharge Diagnostics
Built-in real-time PRPD (Phase Resolved Partial Discharge) spectrum analysis helps electrical engineers detect insulation faults before they become failures.

Know Your Noise Sources at a Glance
Dedicated sound source recognition mode intuitively displays identification results, making noise diagnostics fast and accessible — no expert interpretation required.

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance icon3Application
    product details
    YT2001 Acoustic imager
    01

    Product Description

    The YT2001 Acoustic Imager is a handheld portable acoustic imaging product developed based on array beamforming technology and image-sound fusion imaging technology. Utilizing a high-precision microphone array and sound source localization technology, it can quickly and accurately locate sound signal sources and has functions such as ultrasonic imaging, leakage detection, PRPD partial discharge mode, and sound source identification.

    Product Video

    Features

    Real-time imaging
    25 FPS high-speed refresh rate, accurately capturing steady-state or transient sound sources, supporting dynamic sound source tracking;
    Precise positioning: 136-channel MEMS digital microphone arrays are available.
    Intelligent Noise Reduction
    Adjustable frequency band filtering function, actively shielding interference frequencies, improving detection accuracy in complex environments;
    Leakage Quantification
     Real-time calculation of gas leakage, intelligent focusing to locate the leakage source.
    Partial discharge analysis
    Real-time PRPD partial discharge spectrum analysis.
    Sound Source Recognition
    Equipped with a sound source recognition mode, which can intuitively display the noise source recognition results.
    Multi-mode acquisition
    Integrated LED illumination, supports high-definition photography and video recording, one-click data storage.

    Main Performance Indicators


    Product Model

    YT2001 Acoustic Imager

    Array

    136 MEMS digital microphone array

    Effective Detection Distance

    0.3 m~100 m

    Effective SPL Range

    30 dB~120 dB

    Leakage Detection

    Minimum detectable leakage at 0.5m, 200 kPa is 3 ml/s

    Frequency Range

    1kHZ~65kHz

    Signal-to-Noise Ratio

    60 dB

    Refresh Rate

    25 FPS

    Measurement Function

    Ultrasonic imaging, leakage detection, PRPD partial discharge mode, sound source identification

    Photo Capture Function

    Supports JPG or PNG format images

    Video Recording Function

    Supports MP4 format video recording

    data storage

    32G internal storage, 64G external TF card

    Power Supply

    Built-in Lithium Battery

    Display Size

    7 inches

    Battery Life

    4h

    Overall Weight

    1.6kg

    Operating Temperature

    -10℃~50℃

    Operating Humidity

    0% RH~90 %RH

    Dimensions (mm)

    285x170x60

    APPLICATION

    Emergency Events & Source IdentificationEmergency Events & Source Identification
    01

    Emergency Events & Source Identification

    A complaint comes in at 2 a.m. and there's no time for a slow, manual sweep of the site. See the sound source directly, confirm it in seconds, and document it before it stops.
    Gemini_Generated_Image_aqoe1zaqoe1zaqoeGemini_Generated_Image_aqoe1zaqoe1zaqoe
    02

    Partial Discharge Diagnosis

    Insulation doesn't fail all at once — it fails after months of tiny electrical discharges nobody heard. See where a switchgear cabinet or transformer is already breaking down, before it takes the circuit with it.
    Gas Leak DetectionGas Leak Detection
    03

    Gas Leak Detection

    A compressed air or gas leak is invisible and often inaudible to a walking inspector — but it's never silent at ultrasonic frequencies. See the leak before it shows up on next month's energy bill.
