China's vibration measurement market has really become a key source for Vibration Calibrator equipment used in labs, factories, and on-field teams. These days, Chinese manufacturers and suppliers are offering everything from portable systems and reference-grade instruments to integrated calibration solutions. Their products support a variety of equipment like accelerometers, vibration sensors, monitoring units, and industrial testing platforms.
Dr. Richard A. Clark, who’s an expert in vibration metrology, often says, “A calibrator is only as trustworthy as its traceability and test discipline.” Honestly, this point really hits home when you're comparing brands like Sinocera Piezotronics, Beijing Orient Institute of Measurement and Test, and other established Chinese players. If you're shopping around, it’s smart to look closely at things like frequency range, acceleration accuracy, total harmonic distortion, output stability, and whether they’re compatible with IEPE sensors. And don’t forget to check the calibration certificates—they should clearly mention the measurement standard, uncertainty levels, and laboratory traceability.
Little details really do count—like a stable signal, a clear certificate, and quick, helpful tech support. When you're evaluating these products, it’s worth considering the manufacturer’s factory experience, production controls, how easy the software is to use, and the level of after-sales service provided. Companies catering to automotive, aerospace, electronics, or machinery sectors might have different strengths—some focus on compact calibrators for field checks, while others design robust lab systems with controlled environments. Keep in mind, the cheapest price isn’t always the best deal—it might end up costing you more in the long run.
This market still needs careful thought. A product might seem impressive based on specs alone, but application guidance and real-world support might be lacking. So, it's a good idea to ask for demo data, sample reports, and realistic delivery timelines. Also, double-check whether the Vibration Calibrator you're eyeing actually matches your sensor’s sensitivity and testing needs. Reputable suppliers are upfront about their product’s limitations. That kind of honesty isn’t a weakness—it’s actually a sign of true professionalism.
A vibration calibrator is a precision instrument that checks whether a vibration sensor measures motion correctly. It creates a controlled vibration with a known frequency and acceleration. The sensor under test is attached to its mounting surface. Its electrical output is then compared with the calibrator’s reference value.
Most systems use an electrodynamic shaker or a small mechanical actuator. A control circuit generates a stable sine wave, such as 159.2 Hz at 10 m/s². The reference accelerometer monitors the actual movement.
Technicians compare this signal with the sensor output, including sensitivity, phase, and noise. A Vibration Sensor Calibrator may also test velocity or displacement sensors with suitable settings.
Good calibration depends on careful mounting. A loose bolt, dirty contact surface, or angled sensor can distort the result. Temperature and cable movement may also affect readings. In practical workshops, technicians normally allow the instrument to warm up before testing. They record the ambient temperature, test frequency, applied level, and measurement uncertainty.
The process is reliable, but not flawless. A neat number can still hide a poor connection. Repeating the test at several levels often reveals problems that one point misses. Some older sensors respond differently after long storage, which deserves a second check rather than quick approval. Calibration records should remain traceable to recognized measurement standards.

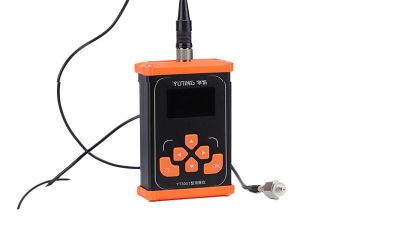

A high-sensitivity multi-parameter vibration meter is designed to provide a detailed view of machinery condition, helping users identify abnormal vibration before it develops into costly equipment problems. It measures acceleration from 0.001 to 2000 m/s², velocity from 0.1 to 20,000 mm/s, and displacement from 0.005 to 200 mm. By covering these three measurement types, the instrument can support inspections of motors, pumps, fans, compressors, gearboxes, and other rotating equipment.
For more complete analysis, the meter simultaneously displays RMS, peak, and peak-to-peak vibration values. Its high-sensitivity sensor delivers an output sensitivity of 2.8 pC/(m·s²), while the frequency response extends up to 8 kHz. This wide response range makes it suitable for detecting both common low-frequency vibration and higher-frequency signals associated with bearing, gear, or structural issues. The combination of sensitivity, broad measurement ranges, and multiple analysis modes allows technicians to compare readings more effectively across different operating conditions.
When choosing a vibration meter, consider the equipment types, expected vibration levels, required frequency range, and the measurement parameters needed for routine maintenance. A model with high sensitivity and broad dynamic range is especially useful for predictive maintenance programs, commissioning checks, troubleshooting, and scheduled condition monitoring. Before purchasing, confirm that its sensor performance and measurement ranges match the machinery and inspection environment.
Compare control stability, frequency accuracy, amplitude resolution, distortion, and sensor compatibility. A closed-loop system monitors acceleration continuously. It can correct drift during long tests. A wide range can still disappoint.
It uses a reference sensor to check output continuously. The system can correct amplitude changes during testing. This supports steadier measurements after warm-up. Small drift still deserves attention.
Request a sample certificate before purchasing. It should include the serial number, test conditions, uncertainty, and calibration date. Confirm traceability to recognized measurement standards. A certificate alone proves less than many buyers expect.
Testing should cover amplitude accuracy, frequency response, distortion, stability, and output performance. Ask whether tests include your actual operating frequencies. A laboratory may test a broad range. That range may not match your daily work.
Check whether the laboratory follows ISO/IEC 17025 practices. Confirm its accreditation scope, not only its certificate number. Ask about reference accelerometers, signal analyzers, and verified fixtures. Details matter.
A rigid base helps maintain stable mounting. A quiet cooling fan reduces workplace distraction. Accessible connectors simplify cable changes and inspections. Replacement cables and reference sensors should remain available.
Ask about technical training, repair procedures, recalibration options, and response times. Confirm transport protection and storage limits. Request records from previous repairs, when available. Cheap service can become expensive later.
Compare its output with a trusted reference during incoming inspection. Record the first results carefully. These measurements create a useful baseline. But baseline checks can reveal unexpected variation. That is uncomfortable, but useful.
A Vibration Calibrator is a precision instrument used to generate controlled vibration signals for verifying and adjusting accelerometers, vibration meters, monitoring systems, and other measurement equipment. By producing a stable reference frequency and acceleration level, it helps engineers confirm whether instruments are operating accurately. Common industrial types include portable hand-held calibrators, laboratory-grade systems, and multifunctional models designed for different sensor sizes, frequency ranges, and testing conditions.
This overview introduces China’s leading manufacturers and suppliers by focusing on product capability rather than brand names. Important comparison points include frequency stability, amplitude accuracy, waveform control, display functions, battery performance, software compatibility, and ease of operation. Buyers should also review quality management, factory testing, traceability, calibration certificates, technical support, warranty terms, and delivery capacity. Selecting the right Chinese supplier requires matching the calibrator’s specifications to the application, confirming after-sales service, evaluating customization options, and ensuring consistent quality for long-term measurement reliability.
