AWA6292 Multifunctional Sound Level Meter with Reverberation & STI Analysis
Class 1
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA6292 Multifunctional Sound Level Meter with Tripod.jpg

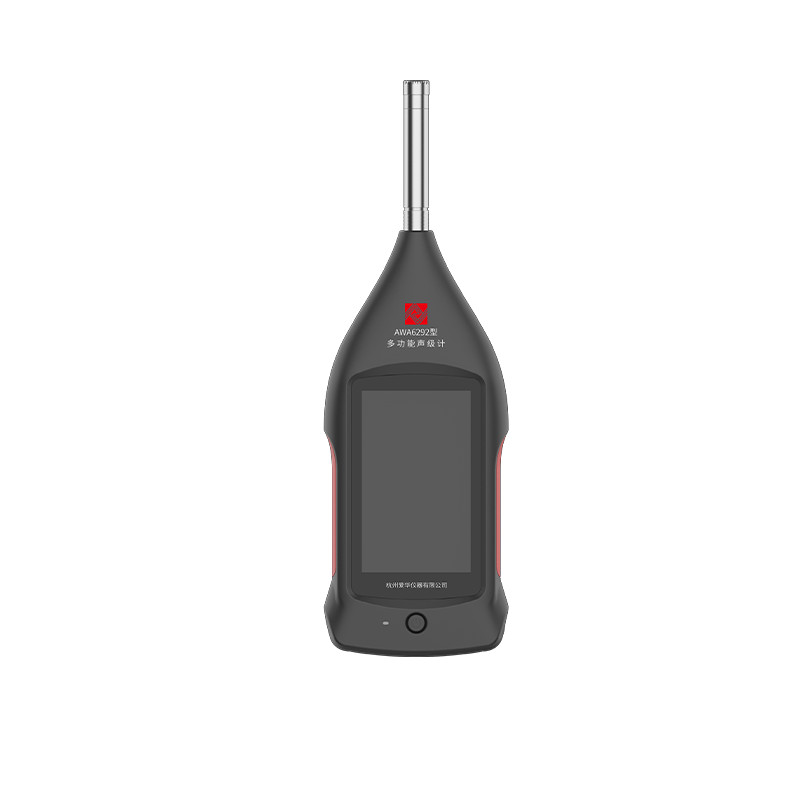

AWA6292 Multifunctional Sound Level Meter.jpg

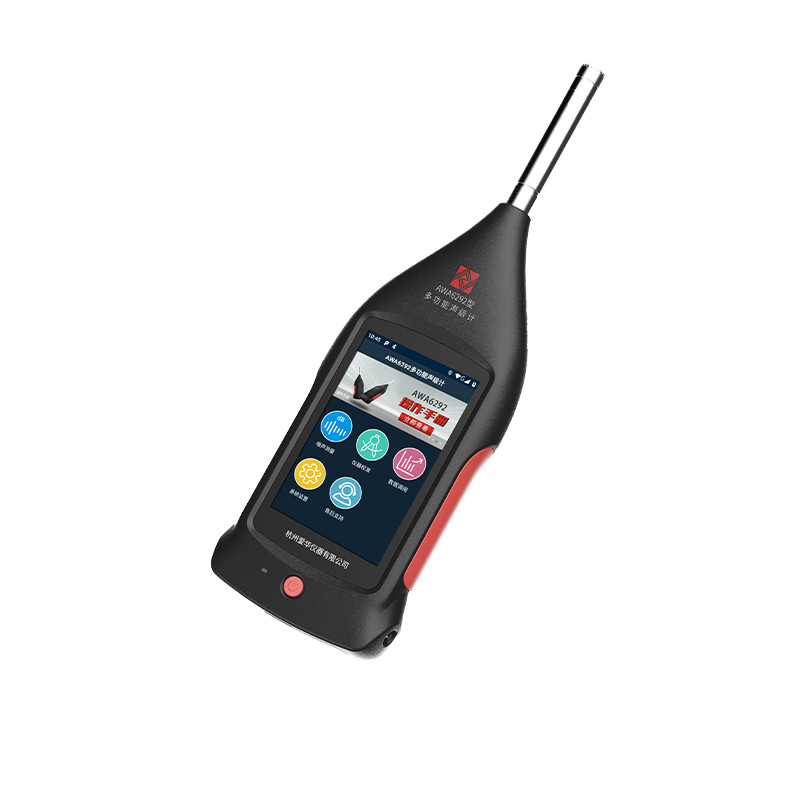

AWA6292 Sound Level Meter Side View.jpg

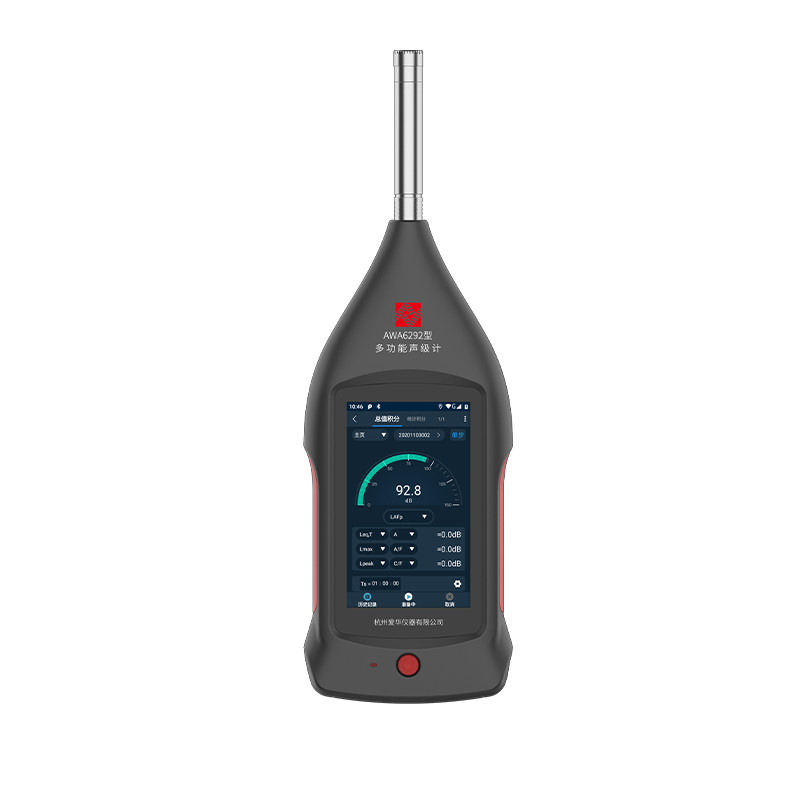

AWA6292 Sound Level Meter.jpg

AWA6292 Multifunctional Sound Level Meter with Reverberation & STI Analysis

AWA6292 Multifunctional Sound Level Meter delivers an all-in-one measurement solution, simultaneously handling noise evaluation, spectrum analysis, reverberation, and STI measurement within a single device.

It fully complies with IEC61672-1:2013 Class 1, IEC61260-1:2014 Class 1, and IEC61252:2025, ensuring the highest level of measurement accuracy and international standardization.

Built-in 4G, WiFi, Bluetooth, and USB connectivity enables seamless data transmission and direct integration with mainstream LIMS systems, ensuring efficient workflow across any environment.

Advanced data encryption technology guarantees the security and integrity of every measurement record, meeting the strictest compliance requirements.

A wide linear dynamic range of 123dB covers measurements from 20dB(A) to 143dB(A), accommodating everything from quiet indoor environments to high-intensity industrial noise.

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us Download
    icon1Descriptionicon2 Featuresicon3Performance icon3Application
    product details

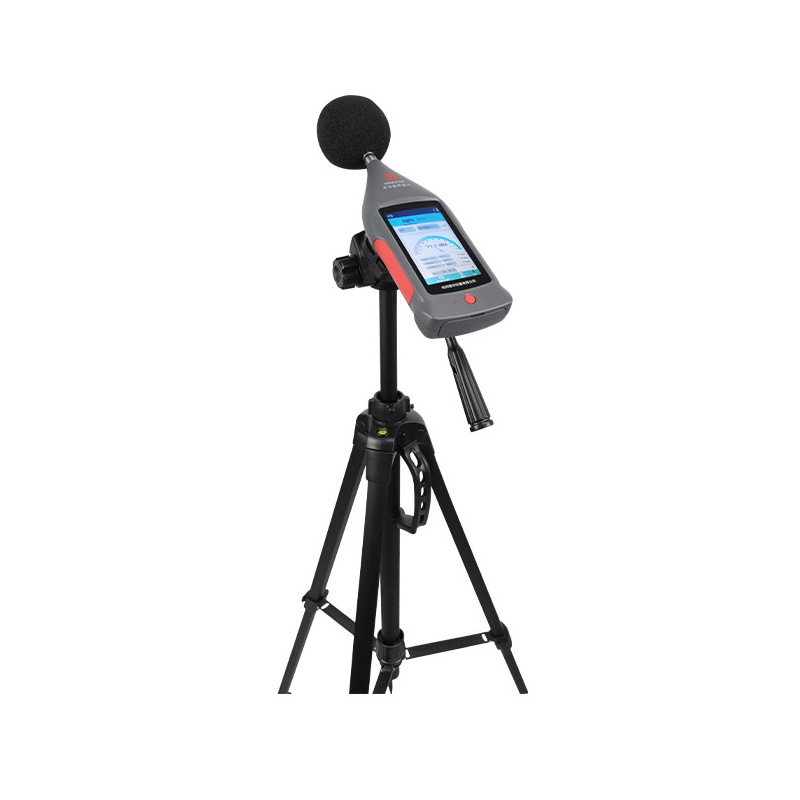

    AWA6292 Multifunctional Sound Level Meter with Tripod
    01

    Product Description

    The AWA6292 multifunctional sound level meter adopts a brand-new design concept, perfectly integrating the latest digital signal processing technology and modern network technology. It features a 4.3-inch ultra-large capacitive touchscreen, a user-friendly interface design, and a housing made of industrial-grade ABS+PC material with a visually striking PANTONE premium metallic finish, providing you with an unprecedented operating experience.

    The AWA6292 multi-functional sound level meter can simultaneously measure multiple evaluation indicators, boasts superior data analysis capabilities, supports simultaneous measurement of multiple functions, and stores data in real time. It can also be used independently as a spectrum analyzer. Adopting a modular design, users can purchase optional measurement modules such as total value integration, statistical analysis, 24-hour automatic monitoring, 1/1 OCT, 1/3 OCT, FFT analysis, indoor measurement, reverberation measurement, STI, and sound exposure level, as well as transmission functions such as 4G, WiFi, Bluetooth, serial port, and USB. It is suitable for environmental noise measurement, industrial machine and product noise measurement, workplace noise measurement, airport noise measurement, and hall acoustic characteristic measurement.

    Features

    Supports direct connection to mainstream LIMS systems
    Adopts the latest data encryption technology to ensure data security and effectiveness
    80 GB ultra-large capacity storage (16 GB internal storage + 64 GB TF card)
    20W fast charging, ultra-long standby time. 2 hours of charging is enough for one 24-hour measurement
    Optional photo-taking function
    High-standard waterproof and dustproof design IP65
    STI measurement function, can be combined with intelligent sound sources to form an indoor and hall acoustic measurement system
    External micro printer for on-site printing of measurement results
    Passed type evaluation test (certificate number: 2021S375-33)
    Ultra-large linear range of 123 dB(A)
    Multiple data transmission methods, integrating 4G, WiFi, Bluetooth, serial port, USB
    OEM/ODM customization available. Learn more.

    Main Performance Indicators

    Product Model Standard Implemented
    AWA6292 Multifunctional Sound Level Meter IEC61672-1:2013 Class 1
    IEC61260-1:2014 Class 1
    IEC61252:2025
    Microphone Measurement Range
    AWA14425 20 dB(A)~143dB(A)
    Frequency Range Frequency Weighting
    10 Hz～20 kHz A, C, Z, users can also customize U and T weighting as needed
    Time Weighting Display
    F、S、I Touch Screen
    Main Measurement Functions Main Measurement Indicators
    Total value integration, statistical analysis, 24-hour automatic monitoring, 1/1OCT, 1/3OCT, FFT analysis, indoor measurement, reverberation measurement, STI, sound exposure level, etc. Total value integration, statistical analysis, 24-hour automatic monitoring, 1/1OCT, 1/3OCT, FFT analysis, indoor measurement, reverberation measurement, STI, sound exposure level, etc.
    Lxyp、Lxeq,T; Lxeq,t; Lxmax, Lxmin、LxN、SD、SEL、Lxpeak、etc.
    (Note: x is A, C, Z; y is F, S, I; N is 5, 10, 50, 90, 95)
    Main Display Content Data Storage
    Can measure and display more than 9 measurement indicators, statistical distribution charts, cumulative distribution charts, and 24-hour distribution charts in real time 16GB internal storage, supports up to 64GB TF card
    Communication Method Enclosure Protection Rating
    AC (alternating current), DC (direct current), 10 expansion ports, USB interface, 4G, WiFi, Bluetooth IP65
    Power Supply Dimensions (mm)
    1) 10000 mAh lithium battery; 2) 9VDC power supply (20W fast charging) 288×95×40
    Operating Temperature
    -20℃~60℃

    APPLICATION

    01

    Emergency Events & Source Identification
    02

    Industrial Boundary Noise
    03

    Construction Site Noise
    04

    Traffic Noise
    05

    Urban Functional Zone Noise Monitoring
