AWA6160 IEC 318 Wide-Band Ear Simulator
Artificial Ear
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA6160 Ear Simulator01.jpg

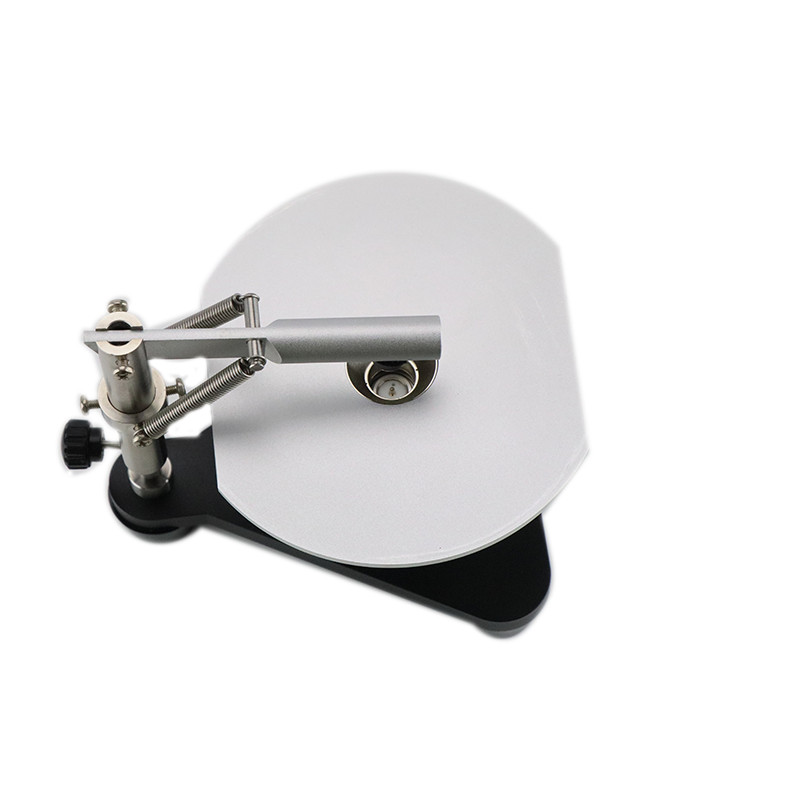

AWA6160 Ear Simulator02.jpg

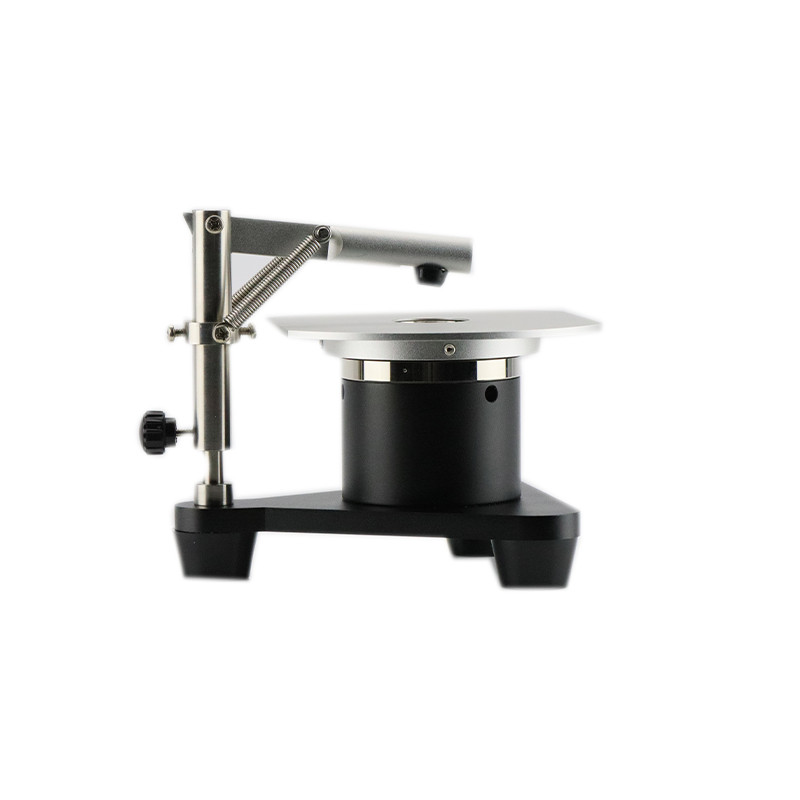

AWA6160 Ear Simulator03.jpg

AWA6160 IEC 318 Wide-Band Ear Simulator

Standard-Compliant Ear Simulator – Designed and manufactured in accordance with GB 7614-87 and equivalent to IEC 318 / IEC 60318-1, ensuring international compatibility and recognition as the industry-standard "IEC 318 Ear."

Accurate Human Ear Acoustic Simulation – Faithfully replicates the acoustic characteristics of the human ear for reliable, realistic electro-acoustic testing.

Wide Frequency Range – Covers 20 Hz to 10,000 Hz, supporting comprehensive characterization across the full audible spectrum.

High Frequency Response Accuracy – Delivers ≤±0.5 dB accuracy (200 Hz–5000 Hz) and ≤±1 dB accuracy (20 Hz–10,000 Hz), ensuring precise, dependable measurement results.

Versatile Testing Applications – Ideal for measuring the electro-acoustic characteristics of earphones, receivers, headphones, and telephone sets.

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us Download
    icon1Descriptionvideo_fillProduct Videoicon3Performance
    product details
    AWA6160 Ear Simulator03
    01

    Product Description

    The AWA6160 Ear Simulator is an acoustic coupler that simulates the acoustic characteristics of the human ear. It is used together with a φ12.7 mm (1/2 inch) pressure-type condenser measuring microphone (Model AWA14422) and a preamplifier (Model 14601B). In conjunction with matching audio measurement and analysis instruments, it is used to measure the electro-acoustic characteristics of electro-acoustic transducers (earphones/receivers, headphones) and telephone sets.
    The AWA6160 Ear Simulator is designed and manufactured in accordance with GB 7614-87 "Wide-band Ear Simulator for the Calibration of Audiometric Earphones," which is equivalent to the IEC 318 standard "An IEC Artificial Ear, of the Wide Band Type, for the Calibration of Earphones Used in Audiometry." For this reason, the ear simulator is also known as the IEC 318 Ear Simulator (or IEC 318 Ear). Its outer coupling cavity has a volume of 2.5 cm³.

    Product Video

    Main Performance Indicators

    AWA6160 Ear Simulator

    Frequency range



    20~10000Hz

    Frequency response accuracy

    ≤±0.5dB(200Hz~5000Hz)，≤±1dB(<20Hz~10000Hz)

    Standards compliance

    IEC60318-1
