AWA6071A Dual-Level Vibration Calibrator

High-precision calibration standard compliance: Meets GB/T 23716-2009 and JJG 1062-2010 for reliable vibration sensor calibration.

Dual acceleration output levels: Provides 1 m/s² and 10 m/s² RMS acceleration for flexible calibration needs.

Stable fixed frequency output: 15.915 Hz ±1% ensures consistent and traceable calibration performance.

Multi-parameter conversion capability: Enables direct conversion to velocity (mm/s) and displacement (mm) for broader applications.

Wide application range: Suitable for machine vibration, hand-transmitted vibration, and environmental vibration instruments.

Class 1SLM
Mobile App
IEC61672

Description video_fill

Product Video icon2

Features

Performance icon3

Application

product details

Product Description

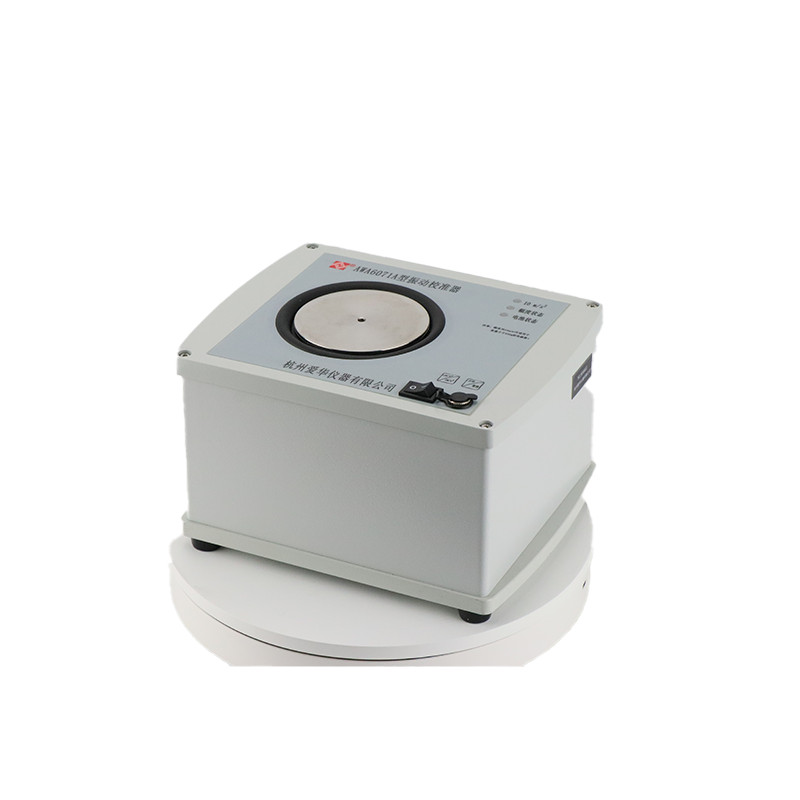

The AWA6071A vibration calibrator is an instrument used for sensitivity calibration of vibration sensors and vibration measuring instruments. The calibrator generates two acceleration values: 15,915 Hz, 1 m/s², or 10 m/s² (RMS). For small accelerometers used for machine vibration and hand-transmitted vibration, calibration can be performed by fixing them to the calibrator platform using M5 bolts or magnetic mounts. For accelerometers used for environmental vibration measurement, calibration can be performed directly on the platform. The 15.915 Hz operating frequency can be easily converted into velocity and displacement values. It features small size, light weight, battery power, and ease of use, making it suitable for on-site calibration of working vibration meters, human body vibration meters, environmental vibration meters, and their sensors.

Product Video

Features

Standard-compliant design: Meets GB/T 23716-2009 and JJG 1062-2010 calibration standards.

Fixed precision frequency output: 15.915 Hz ±1% stable operating frequency for reliable calibration.

Dual acceleration levels: Supports 1 m/s² and 10 m/s² RMS acceleration outputs.

Wide application compatibility: Suitable for machine vibration, hand-transmitted vibration, and environmental vibration sensors.

Flexible sensor installation: Supports M5 threaded mounting and magnetic attachment methods.

Low distortion performance: Total distortion less than 5% ensures calibration accuracy.

Low lateral vibration: Maintains lateral vibration below 5% for stable output.

Fast warm-up time: Ready for operation in less than 20 seconds.

Strong load capacity: Supports up to 1000g load depending on calibration level.

Portable battery-powered operation: Over 8 hours continuous use after full charge.

Compact field-ready structure: 6.7 kg lightweight design suitable for on-site calibration work.

Main Performance Indicators

Product Model		AWA6071A Vibration Calibrator
meet the standard		GB/T 23716-2009, JJG 1062-2010
frequency		15.915 Hz±1%
Amplitude	Acceleration (m/s²)(RMS)	1	10
	Velocity (mm/s)(RMS)	10	100
	Displacement (mm)	0.1	1
lateral vibration		Less than 5%
warm-up time		Less than 20 s
load capacity		Amplitude not greater than 100g at 10 m/s², amplitude not greater than 1000g at 1 m/s²
Total distortion		Less than 5%
Mass		6.7 kg
Power Consumption		Can work continuously for more than 8 hours after a full charge
Sensor Mounting Hole		M5
Operating Temperature Range		0℃~40℃
