AWA5937 Hand-Transmitted Vibration Meter
Vibration Meters
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA5937 Hand-Transmitted Vibration Meter05.jpg

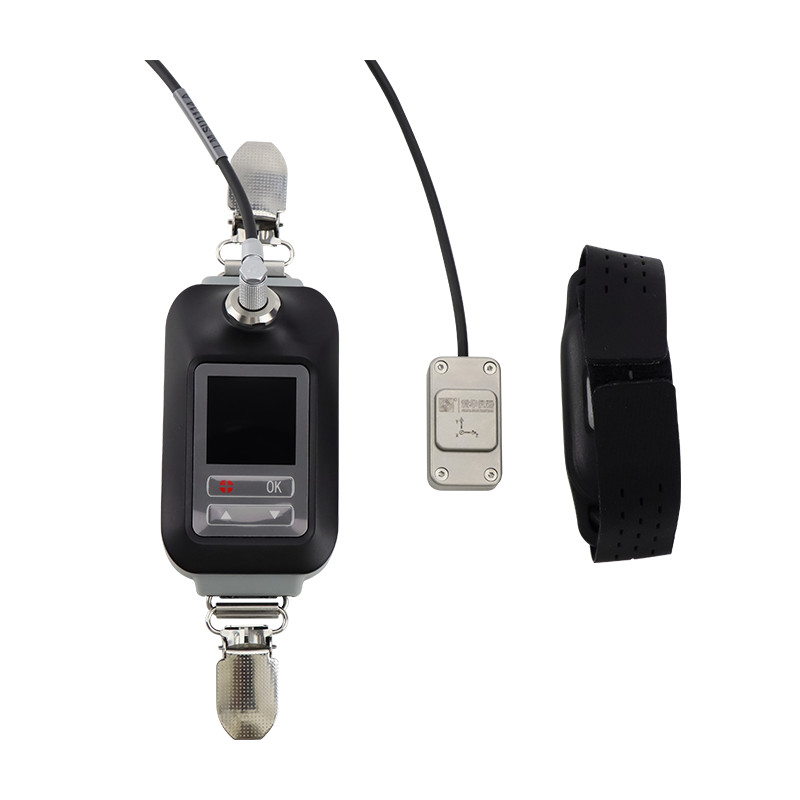

AWA5937 Hand-Transmitted Vibration Meter03.jpg
AWA5937 Hand-Transmitted Vibration Meter04.jpg

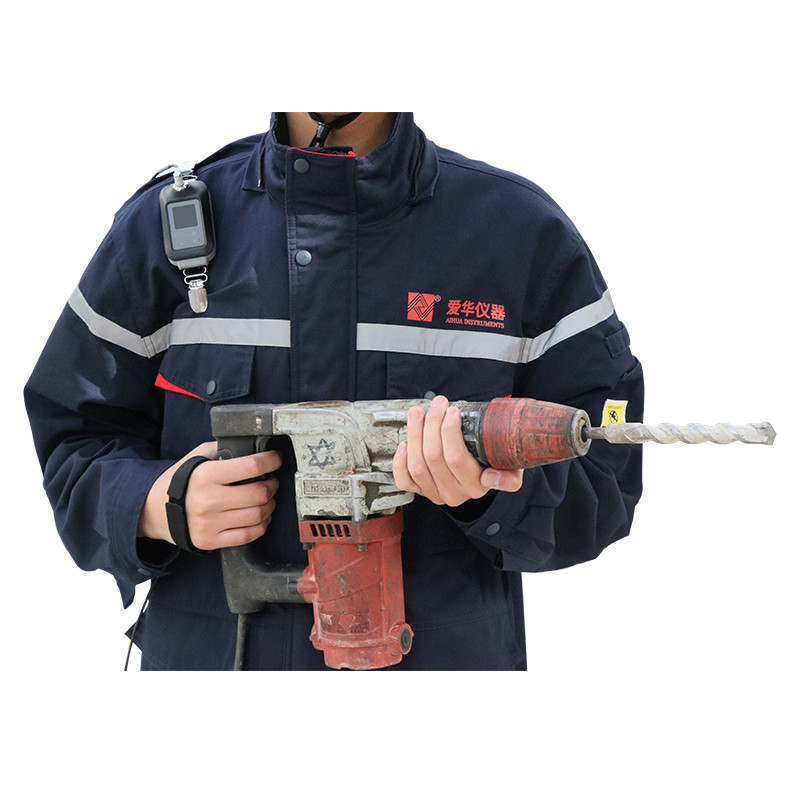

AWA5937 Hand-Transmitted Vibration Meter01.jpg
AWA5937 Hand-Transmitted Vibration Meter02.jpg

AWA5937 Hand-Transmitted Vibration Meter

Complies with ISO 5349-1:2001 for accurate hand-transmitted vibration assessment.

Enables precise frequency and time weighting for more reliable measurement results.

Measures key indicators such as VL, VLmax, VLmin, VLeq,T, a,  a, T, amax, amin, apeak,T and more in real time.

Supports detailed frequency spectrum analysis for advanced diagnostic applications.

Lightweight integrated structure with 1.3-inch TFT color screen for clear on-site data viewing.

Dustproof and waterproof design suitable for harsh working environments.

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance icon3Application
    product details
    AWA5937 Hand-Transmitted Vibration Meter04
    01

    Product Description

    The AWA5937 hand-transmitted vibration meter is a triaxial hand-transmitted vibration measuring instrument using digital signal processing technology. It can simultaneously measure multiple evaluation indicators and has the advantages of multifunctionality, high performance, small size, low power consumption, and simple operation. It is suitable for factories, occupational health, teaching, scientific research and other fields.

    Product Video

    Features

    Digital signal processing: Using digital technology to achieve frequency and time weighting for more accurate measurement.
    High-resolution display screen: Equipped with a small TFT color screen to intuitively display measurement data.
    Multiple Measurement Modes: Supports manual vibration measurement, with optional 1/3 OCT analysis and other functions.
    Type-C interface: supports plug and play, no driver required, and can be used for both charging and data transmission.
    Integrated design: compact structure, small size, sturdy and durable, easy to carry and install.
    High protection level: dustproof and waterproof, suitable for complex working environments.
    Easy to operate: user-friendly interface, few buttons, easy to pick up, suitable for quick on-site measurement.

    Main Performance Indicators

    Product Name

    AWA5937 Hand-Transmitted Vibration Meter

    Standard Implemented

    ISO5349-1:2001



    Nominal sensitivity

    AWA84411:4  mV/m/s²)

    AWA84411A:1mV/(m/s²)

    Frequency Range

    4 Hz～2000 Hz



    Measurement Range

    AWA84411:0.02 m/s²~251m/s²;

    AWA84411A:0.06m/s²~2000m/s²

    (Note: 10⁶ m/s² as reference)

    Time Weighting

    1s、8s

    Frequency Weighting

    a、Wh

    Display

    1.3-inch TFT-LCD screen

    Main Display Content

    Real time measurement and display of more than 4 measurement indicators









    Main Measurement

    Indicators

    Hand-transmitted vibration: VL, VLmax, VLmin, VLeq,T, a,  a, T, amax, amin, apeak,T,  ahw(4), A(8)

    1/3 OCT analysis: a, a, T, amax, amin, , Acc(a), Acc(Wh), max@, nominal center frequency (4Hz, 5Hz,

    6.3 Hz、8 Hz、10 Hz、12.5Hz、16Hz、20 Hz、25 Hz、31.5 Hz、40 Hz、50 Hz、63Hz、80 Hz、100 Hz、125 Hz、

    160 Hz、200 Hz、250 Hz、315 Hz、400 Hz、500 Hz、630 Hz、800 Hz、1000 Hz、1250 Hz、1600 Hz、

    2000 Hz)

    Note: Different weighting can be set, including a/1s, Wh/1s, a/8s, Wh/8s

    Single operation: ahv, ahwx, ahwy, ahwz, ahvn, ahwxn, ahwyn, ahwzn, ahw4, A(8).

    Note: n is an integer between 1 and 10.

    data storage

    64GB

    Output interface

    USB, Bluetooth (optional)

    Power Supply

    1) Explosion-proof lithium battery; 2) 5V external power supply

    Dimensions (main unit only, mm)

    90×48×37

    Weight (main unit only, g)

    About 113

    Application

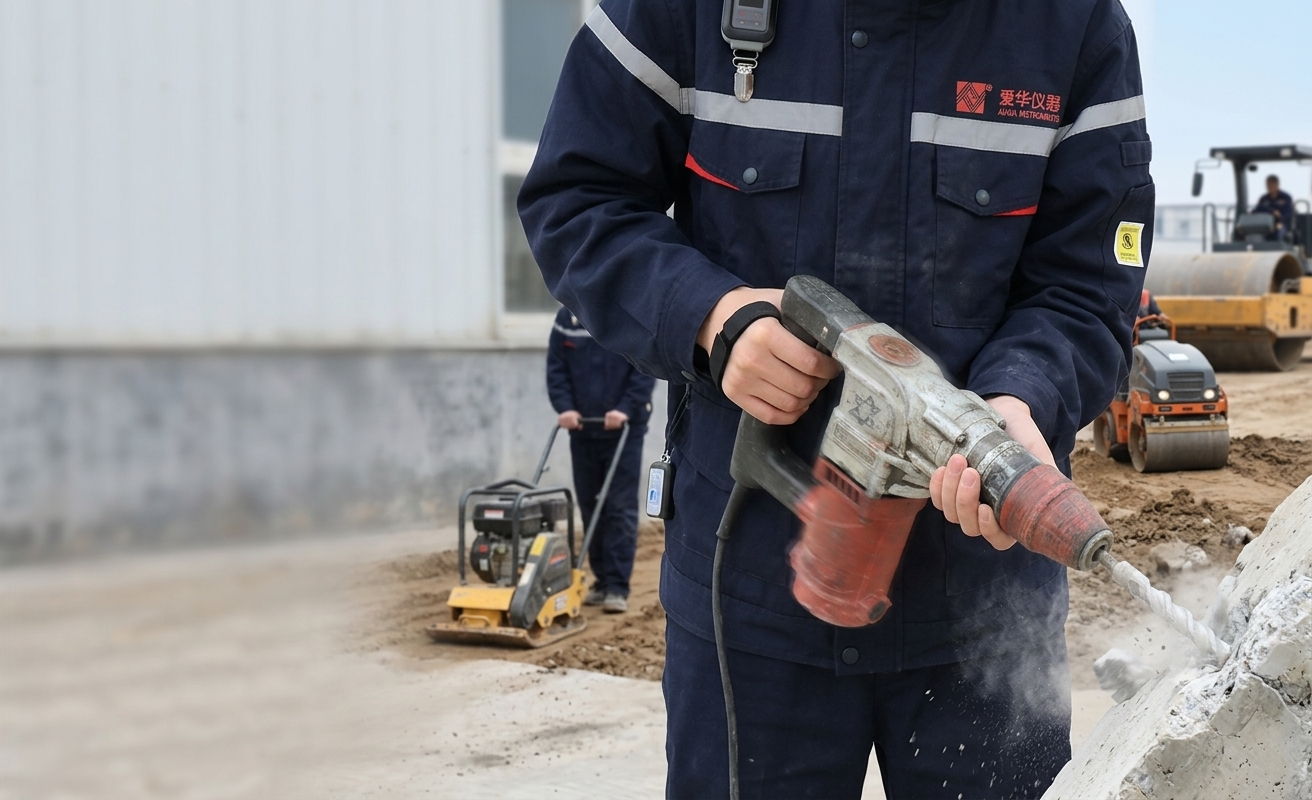

    Gemini_Generated_Image_qk9a5tqk9a5tqk9a
    true
    Gemini_Generated_Image_qk9a5tqk9a5tqk9a

    Hand-Arm & Whole-Body Vibration Testing


    ​A worker's exposure to vibration comes in through their hands, or through the seat beneath them — and the health risk, the standard, and the instrument are different for each. Measure the pathway that actually applies.
