AWA5920 Wearable Noise Exposure Dosimeter
Noise Dosimeters
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now

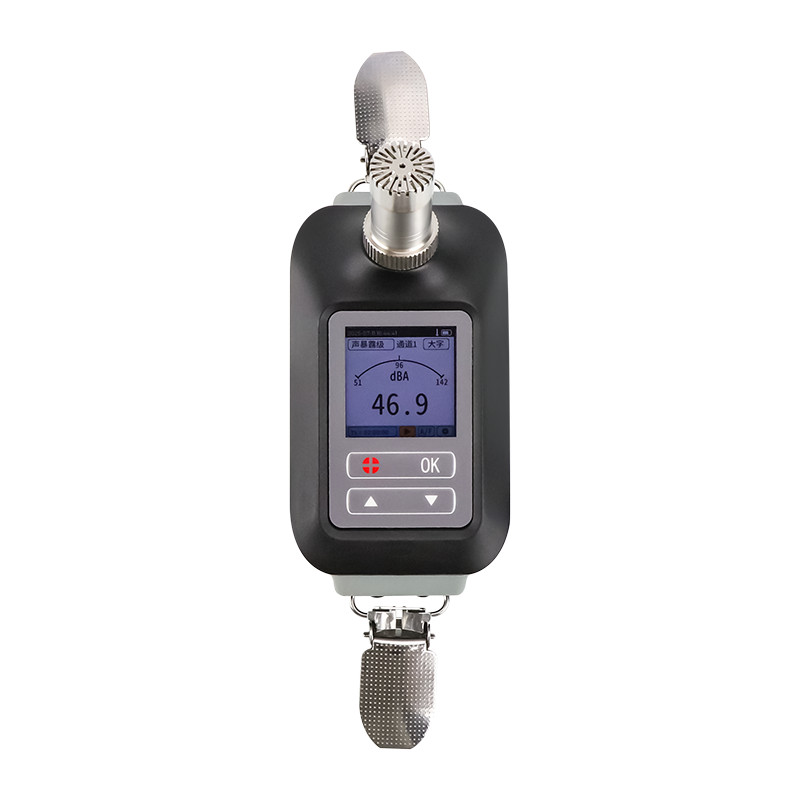

AWA5920 Noise Dosimeter02.jpg

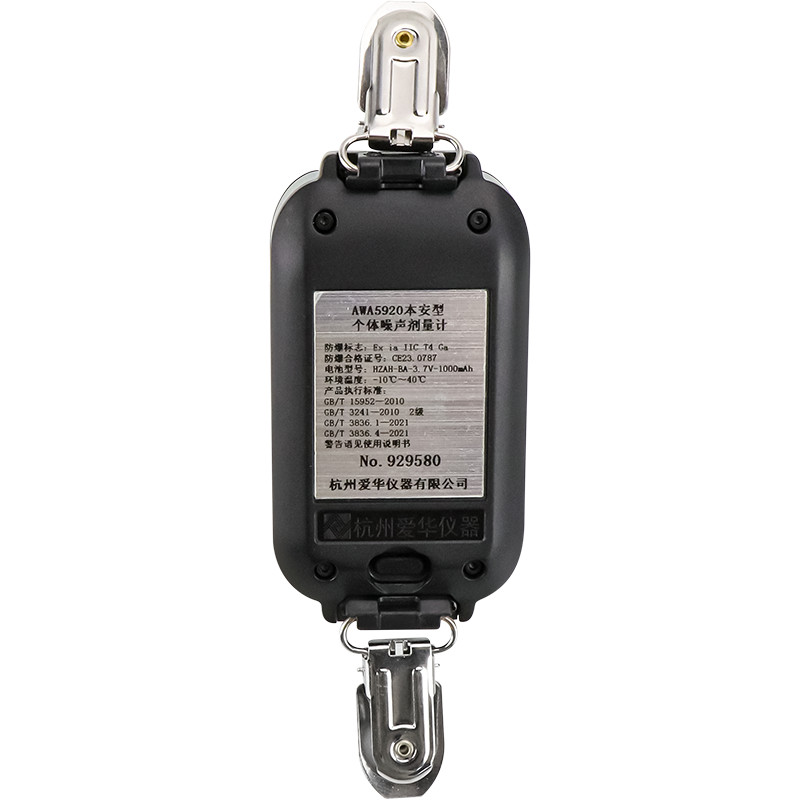

AWA5920 Noise Dosimeter01.jpg

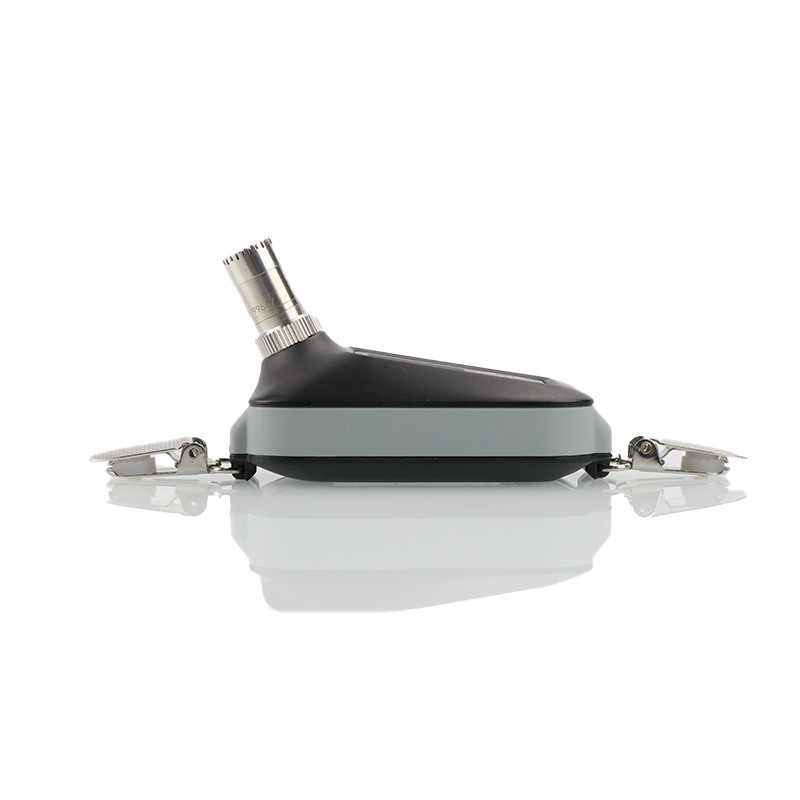

AWA5920 Noise Dosimeter04.jpg

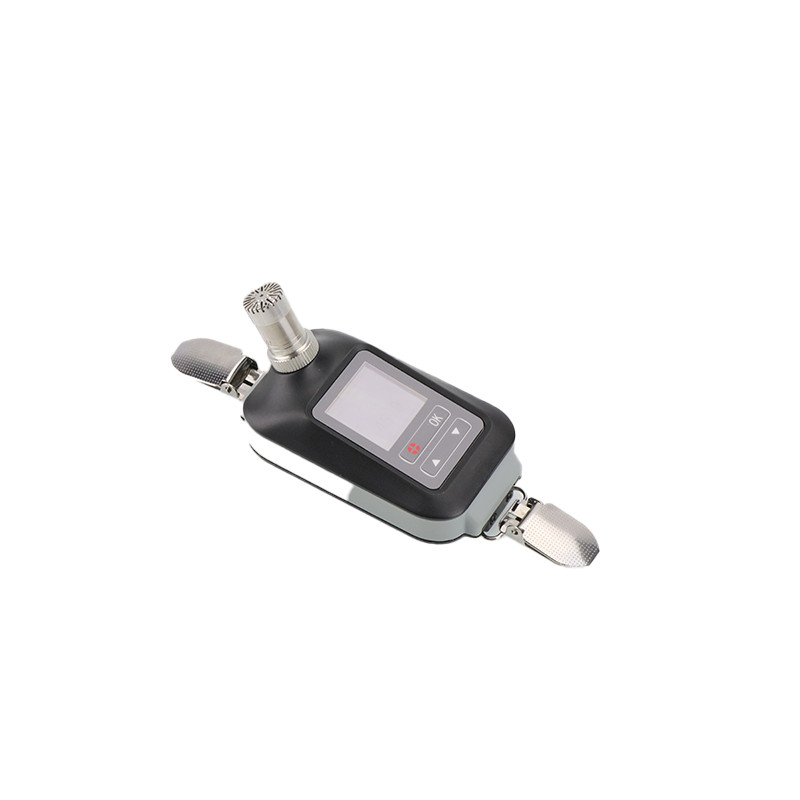

AWA5920 Noise Dosimeter03.jpg

AWA5920 Wearable Noise Exposure Dosimeter

Intrinsically safe design with IP65 dust and water protection

Compliant with IEC 61672-1, IEC 61252, and IEC 61260 standards

Measures sound exposure and real-time noise dose percentage

Supports 3 dB and 5 dB exchange rate applications globally

Integrated compact design for wearable personal noise monitoring

Wide measurement range up to 142 dB(A) peak capability

Advanced functions including statistical and octave band analysis

64 GB large-capacity storage for long-term data recording

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us Download
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance icon3Application
    product details
    AWA5920 Noise Dosimeter02
    01

    Product Description

    An instrument worn by an individual to measure noise exposure is called a Noise Dosimeter, used to measure sound exposure, i.e., the time integral of the square of the instantaneous A-frequency weighted sound pressure. Its working principle is based on "equal energy exchange rate." For a constant sound level, doubling (or halving) the exposure time also doubles (or halves) the sound exposure; similarly, for a constant exposure time, an increase (or decrease) of 3 dB in the input sound level will double (or halve) the sound exposure. It meets the requirements of IEC 61672-1 for a Class 2 integrating sound level meter.
    Another instrument for measuring and indicating noise dose is called a noise dosimeter. A noise dosimeter is a noise measurement instrument that measures noise exposure over a certain period of time and displays the percentage of the legal sound exposure limit. For most countries , noise dose values follow the rule of halving the exposure time and allowing a 3 dB increase in noise level, i.e., an exchange rate of 3; however, for countries such as the United States and Canada, halving the exposure time allows a 5 dB increase in noise level, i.e., an exchange rate of 5.

    Product Video

    Features

    Compliant with personal sound exposure meter and level 2 sound level meter standards (customizable level 1)
    Complies with IEC 61672-1:2013 Class 2, IEC 61252-1:2025, IEC 61260-1:2014 Class 2
    Integrated structure, small size, reliable and durable, simple operation, easy installation
    Powerful data analysis functions, supporting multiple measurement modules such as acoustic exposure meter, statistical integration, 1/1 OCT, and 1/3 OCT
    Precise recording function, recording results can be sent to the computer for playback
    Multiple data transmission interfaces and support wireless data transmission
    Calculation and statistical function for the number of times the peak value of pulse sound exceeds the specified value
    Large capacity storage
    Dustproof and waterproof rating: IP65
    OEM/ODM customization available. Learn more.

    Main Performance Indicators

    Product Model

    AWA5920 Noise Dosimeter



    Standard Implemented

    EC61672-1:2013 Class 2

    IEC 61252-1:2025

    IEC61260-1:2014 Class 2

    Microphone

    AWA14421





    Measurement Range

    A-weighted sound level: 51 dB(A) ~ 142 dB(A)

    C-weighted peak sound level: 68dB(C)~145dB(C)

    Acoustic exposure: 0.01 Pa²h~999.99 Pa²h

    Noise dose: 0%~99999%

    Frequency Range

    20 Hz～12.5kHz

    Frequency Weighting

    A、C、Z

    Time Weighting

    F、S、I

    Display

    1.3-inch TFT-LCD display

    Main Measurement Indicators

    E、Lp、Leq,T、Lmax、LN、SEL、Lex8h、LAVG、TWA、DOSE、Kurt、SD、Lpeak、

    NLpeak＞120、NLpeak＞130、NLpeak＞140、gravity X / Y/ Z, etc.

    filter

    1/1OCT、1/3OCT

    data storage

    64GB

    Data transmission method

    USB interface, 4G (optional), Bluetooth (optional)

    Explosion proof type

    intrinsically safe

    Enclosure Protection Rating

    IP65

    Power Supply

    1) Ordinary lithium battery (ordinary); 2) Explosion proof lithium battery (intrinsic safety);

    2)  3) External power supply (limited to safe areas)

    Dimensions (mm)

    90×49×64

    Operating Temperature

    -10℃~40℃

    APPLICATION

    01

    Workplace Noise Exposure Assessment

    Map hazardous noise sources, quantify each worker's daily dose, and build a defensible hearing conservation program — with Class 1 sound level meters and personal noise dosimeters engineered for the factory floor.
