AWA5662 Multifunctional Sound Level Meter for Industrial Noise Measurement
Class 1
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA5662 Multifunctional Sound Level Meter Front view.jpg

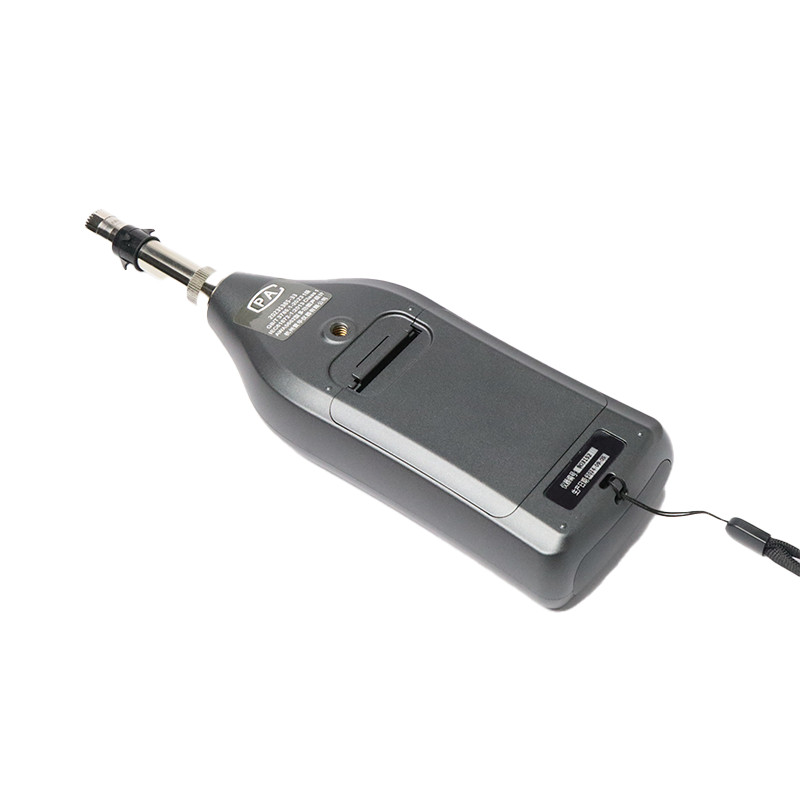

AWA5662 Multifunctional Sound Level Meter Rear view.jpg
AWA5662 Multifunctional Sound Level Meter Side view.jpg

AWA5662 Multifunctional Sound Level Meter for Industrial Noise Measurement

Class 1 multifunctional sound level meter designed for industrial machinery noise, factory environmental noise, and workplace noise measurement.

Available in four types: Basic, Integral Measurement, Sound Exposure (Dose), and Statistical Type, covering different application scenarios.

Complies with IEC61672-1:2013 Class 1, IEC61260-1:2014 Class 1, and IEC61252:2025 standards (depending on configuration).

115 dB ultra-wide linear range with no need for manual range switching.

Supports optional 1/1 and 1/3 octave real-time spectrum analysis for advanced acoustic evaluation.

2.4-inch color display with multi-parameter real-time measurement and intuitive operation.

Built-in recording and data storage functions (WAV/MP3 optional), with data export for PC analysis.

Supports multiple microphones for low to high sound level measurement applications.

Supports key industrial and occupational noise indicators such as Leq, Lmax, LE, TWA, LEX,8h, DOSE, and statistical analysis.

Compact and portable design (approx. 340 g) with battery or external 5V power supply.

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us Download
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance icon3Application
    product details
    AWA5662 Multifunctional Sound Level Meter Front view
    01

    Product Description

    The AWA5662 multifunctional sound level meter is mainly designed and manufactured for industrial enterprises to measure and analyze noise from machinery and equipment and factory noise. It comes in three different configurations based on its functions, suitable for measuring noise from machinery and equipment, factory environmental noise, and workplace noise, respectively. Specifically:
    AWA5662-0 Basic Type: Measures only instantaneous sound levels, as machinery and equipment noise is almost always steady-state noise, thus significantly reducing the instrument's price;
    AWA5662-1 Integral Measurement Type: Measures equivalent (average) sound levels, suitable for measuring fluctuating and unstable noise (e.g., factory boundary noise), and also allows for data storage, retrieval, and recording;
    AWA5662-2 Sound Exposure Measurement Type: Primarily used for measuring workplace noise, and also allows for data storage, retrieval, and recording;
    AWA5662-3 Statistical Type: Primarily used for environmental noise measurement, equipment noise characteristic research, etc., and also allows for data storage, retrieval, and recording.
    All models can be equipped with 1/1 octave and 1/3 octave real-time spectrum analysis functions, and different microphones can be replaced to adapt to low-level or high-level sound measurement.

    Product Video

    Features

    Meets Class 1 sound level meter standards
    115 dB ultra-wide linear range, no need to switch ranges
    2.4-inch color screen display, capable of simultaneously measuring and displaying multiple indicators
    Optional 1/1 octave and 1/3 octave band filters
    Precision recording function; recording results can be sent to a computer for spectrum analysis or playback
    OEM/ODM customization available. Learn more.

    Main Performance Indicators

    Configuration number

    AWA5662-0

    AWA5662-1

    AWA5662-2

    AWA5662-3

    Features

    Basic type

    Integral measurement

    Sound exposure measurement

    Statistical type







    Standard Implemented



    IEC 61672-1:2013 Class 1

    IEC 61260-1:2014 Class 1

    IEC 61672-1:2013 Class 1

    IEC61260-1:2014 Class 1

    IEC 61252:2025

    Microphone model

    AWA14425

    Measurement Range

    25 dB(A)~140dB(A)

    Frequency Range

    10 Hz～20 kHz

    Frequency Weighting

    F、S、I、110

    Time Weighting

    A、C、Z







    Main Measurement Indicators





    Lxyp、Lxeq,t

    Note: x is A, C, Z; y is F, S, I, I10



    Lxyp、Lxeq,T、Lxeq,t、Lxymax、Lxymin、LxE、Lxpeak、E、SD、TWA、LEX,8h、LAVG、DOSE







    Lxyp、Lxeq,T、Lxeq,t、Lxymax、Lxymin、LxE、Lxpeak、E、SD、TWA、LEX,8h、LAVG、DOSE



    Lxyp、Lxeq,T、Lxeq,t、Lxymax、Lxymin、

    LxE、Lxpeak、E、SD、TWA、LEX,8h、

    LAVG、DOSE；



    (Note: x represents A, C, Z;

    y is F, S, I, I10;

    n is 5, 10, 50, 90, 95)

    Recording



    ——

    WAV, MP3 optional

    Filter (optional)

    1/1OCT、1/3OCT

    Display

    2.4-inch color screen display, resolution 240×320

    Output interface

    AC (Alternating Current), DC (Direct Current), USB, IO expansion ports

    Storage

    None

    4GB internal storage, optional 64GB TF card

    Low sound level measurement

    Equipped with AWA14411 measuring microphone, sound level measurement range: 16dB(A)~131dB(A),

    see the above figure

    High-frequency sound level measurement

    Equipped with AWA14521 measuring microphone, sound level measurement range: 48dB(A)~163 dB(A),

    see the first from the right in the above figure

    Equipped with AWA14434 measuring microphone, sound level measurement range: 62dB(A)~174 dB(A),

    see the second from the right in the above figure

    Power Supply

    1) 4 LR6 alkaline batteries; 2) Can be connected to an external 5V power supply

    Dimensions (mm)

    250x76x33

    Operating Temperature

    -20℃~60℃

    Weight

    Approximately 340g

    APPLICATION

    01

    Emergency Events & Source Identification
    02

    Industrial Boundary Noise
    03

    Construction Site Noise
    04

    Traffic Noise
    05

    Urban Functional Zone Noise Monitoring
