AWA5636 Series Class 2 Sound Level Meter
Class 2
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now

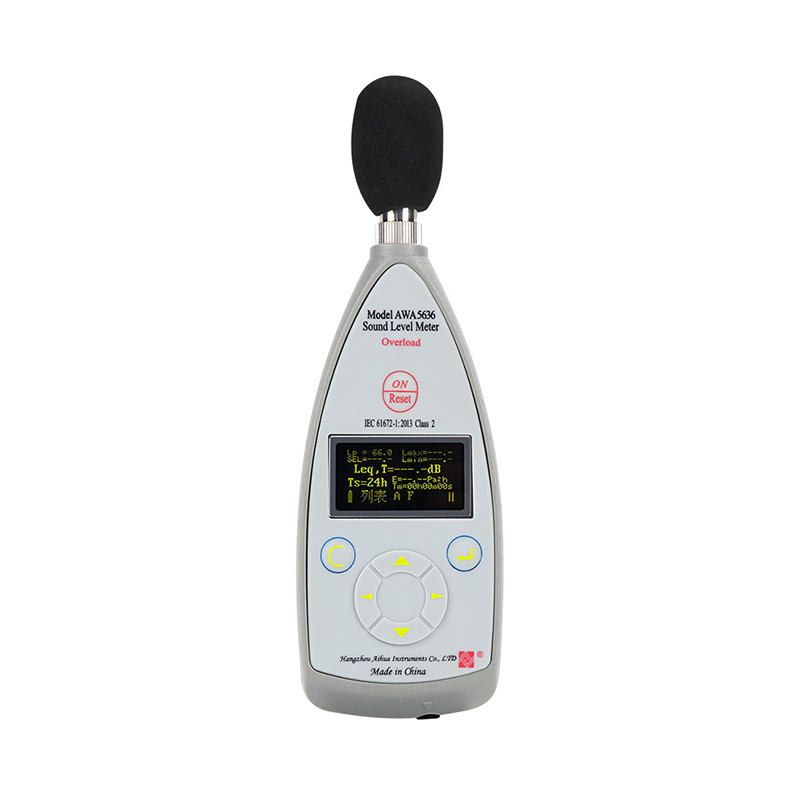

AWA5636 Series Class 2 Sound Level Meter03.jpg

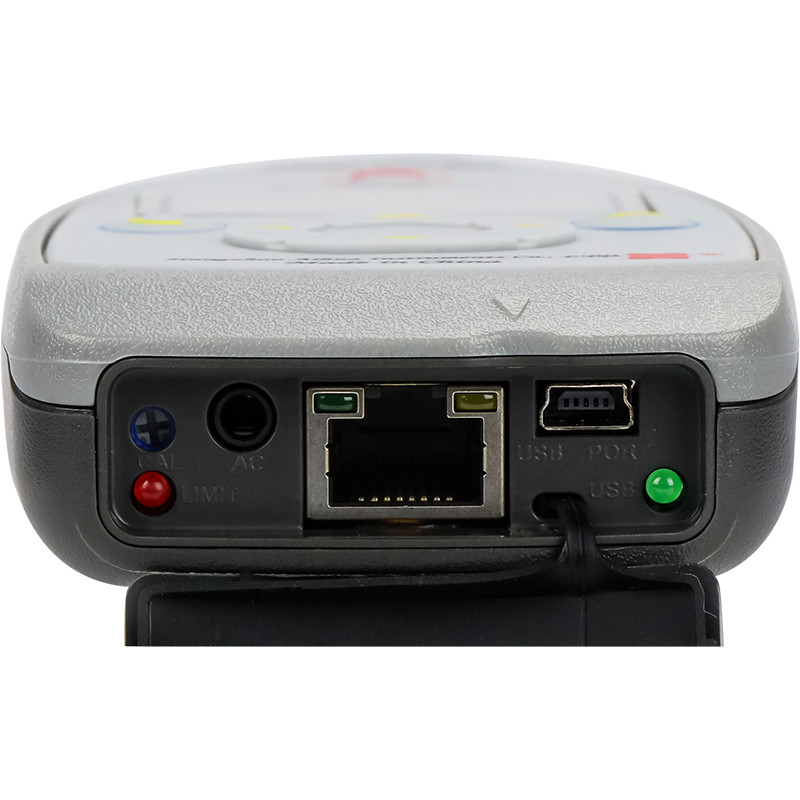

AWA5636 Series Class 2 Sound Level Meter01.jpg

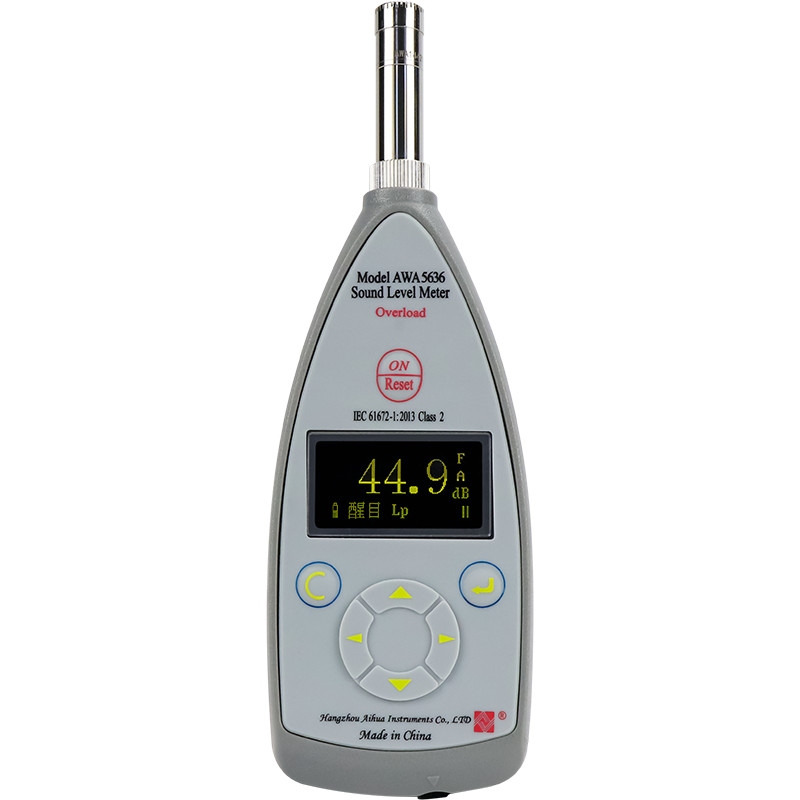

AWA5636 Series Class 2 Sound Level Meter02.jpg

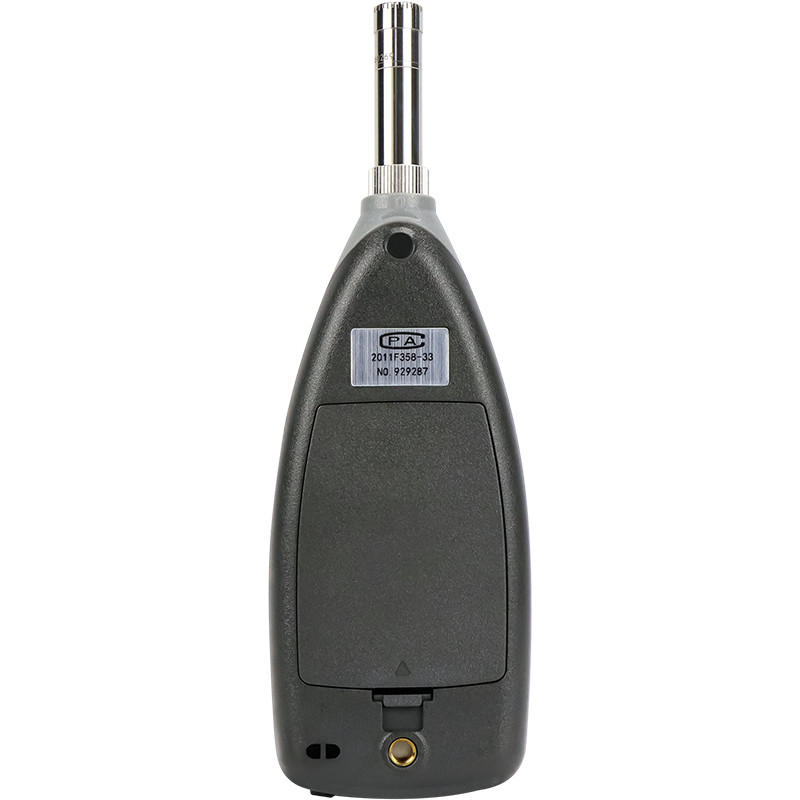

AWA5636 Series Class 2 Sound Level Meter04.jpg

AWA5636 Series Class 2 Sound Level Meter

Meets IEC 61672-1:2013 Class 2 standard accuracy

Advanced digital signal processing ensures stable reliable measurements

Modular design allows flexible configuration and customization options

Wide measurement range without manual range switching needed

Supports multiple frequency and time weighting selections

128×64 OLED display for clear real-time data viewing

Four configuration options available to meet different measurement requirements.

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us Download
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance
    product details
    AWA5636 Series Class 2 Sound Level Meter03
    01

    Product Description

    Model AWA5636 Sound level meter is digital and modular sound level meter with multifunction meeting IEC 61672-1:2002 class 2, and the sensitivity to radio frequency fields belongs to group X.
    The meter adopts advanced digital detection technology and has advantages of reliable and steady performance,wide automatic range, andon need of range conversion etc. It is applied widely in measuring noise produced from various machines, vehicle, boat, electro etc. Alsoit can used to measure environmental noises and industrial noise, e.g. labor protection, industrial hygiene.

    Product Video

    Features

    Meets the standard of Level 2 sound level meter
    Modular design, on-demand selection, high cost-effectiveness
    Adopting digital signal processing technology, with good stability
    Single range, large measurement range, no need to switch, simple and convenient operation
    OEM/ODM customization available. Learn more.

    Main Performance Indicators

    Configuration number

    AWA5636 Basic Model

    AWA5636 Configuration 1

    AWA5636 Configuration 2

    AWA5636 Configuration 3

    AWA5636

    Configuration 4

    Standard Implemented

    IEC 61672-1:2013 Class2

    Microphone model

    AWA14421B

    AWA14421

    Measurement Range

    40 dB(A)～130 dB(A)

    30 dB(A)~130 dB(A)

    Frequency Range

    20 Hz～12.5 kHz

    Frequency Weighting

    A

    A、C、Z

    Time Weighting

    F、S

    F、S、I

    Display

    3.5-digit LCD

    128×64 dot matrix OLED



    Output interface



    AC、DC



    AC、DC、

    PWM

    AC、DC、PWM、

    RS 232, Bluetooth (optional)

    AC、DC、

    PWM、RS 232

    AC、DC、PWM、

    RS 232, Bluetooth

    (optional)



    Main Measurement Indicators

    Lp, Lmax



    Lp, Lmax

    Lp、Leq,T、Lmax、Lmin、 SEL、E、Tm

    Lp、Leqls、Lmax、

    built-in watchdog

    Main Measurement Functions



    -



    -

    Integral, statistics (optional)

    Storage (optional)

    Integral, statistics (optional)

    1/1OCT (optional)

    Over limit indication

    None

    Yes, the limit can be set

    Power Supply

    1) Four AAA alkaline batteries; 2) Optional lithium battery;

    2) 3) External 5V power supply available

    Dimensions (mm)

    210×68×27

    Operating Temperature

    -10℃~50℃
