AWA14602(A) High-Fidelity 1/2" Preamplifier
Preamplifier
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA14602(A) Preamplifier01.jpg

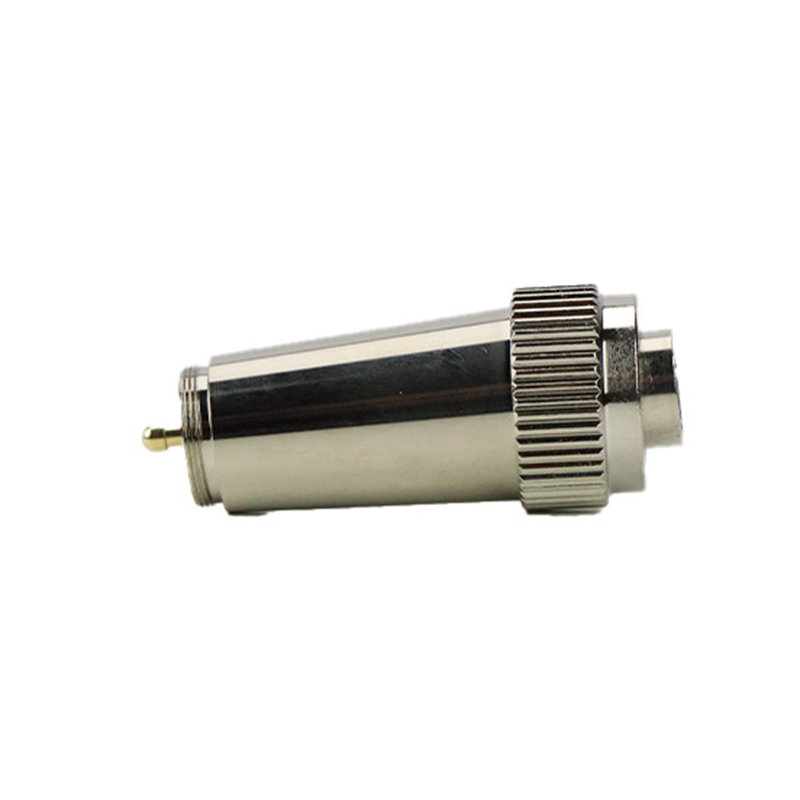

AWA14602(A) Preamplifier02.jpg

AWA14602(A) High-Fidelity 1/2" Preamplifier

High-fidelity signal transfer: near-lossless gain (-0.2 dB) and low distortion ensure the microphone's true acoustic signal is faithfully preserved through the preamp stage

Superior impedance matching: extremely high input resistance combined with low input capacitance minimizes loading effects on the microphone capsule, maximizing measurement accuracy

Long-distance measurement capability: low output impedance supports driving long cables in field or industrial test setups without significant signal loss

Ideal for professional acoustic testing: well-suited for applications such as sound level metering, noise/vibration analysis, and acoustic calibration where accuracy and signal integrity are critical

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us Download
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance
    product details
    AWA14602(A) Preamplifier01
    01

    Product Description

    The AWA14602A preamplifier is a specialized amplifier characterized by high input resistance, low input capacitance, and low output impedance; it is designed to operate with measurement microphones to perform impedance transformation and pre-amplification.

    Product Video

    Features

    1/2" (Φ12.7mm) form factor — compatible with standard 1/2" measurement microphone capsules
    Wide frequency response: 20 Hz–12.5 kHz (±0.5 dB)
    Ultra-high input impedance: ≥500 MΩ, paired with low input capacitance ≤5.0 pF
    Low output impedance: ≤1 kΩ, enabling long cable runs with minimal signal degradation
    Low insertion loss: transmission gain of only -0.2 dB
    Low distortion: THD ≤0.2%
    Zero polarization voltage (0V) design
    Wide power supply range: 4V–20V, compatible with various signal conditioners/power supplies
    Standard output connector: X9-6T2 interface

    Main Performance Indicators

    AWA14602（A）Preamplifier

    Size

    Φ12.7mm(1/2")

    Frequency response

    20Hz~12.5kHz ±0.5dB

    Transmission gain

    -0.2dB

    Input impedance/capacitance

    ≥500MΩ//≤5.0pF

    Total Harmonic Distortion (THD)

    ≤0.2%

    Output impedance

    ≤1kΩ

    Polarization voltage

    0V

    TEDS

    Not supported

    Power supply

    4V~20V

    Output interface

    X9-6T2
