AWA14601L Wide-Dynamic-Range 1/2" Preamplifier
Preamplifier
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA14601L Preamplifier02.jpg
AWA14601L Preamplifier01.jpg

AWA14601L Wide-Dynamic-Range 1/2" Preamplifier

Exceptional dynamic range coverage: 123 dB span (20–143 dB) allows accurate capture of both very quiet and very loud acoustic events within a single measurement chain

True signal fidelity: unity gain (0 dB) ensures the impedance conversion introduces no level distortion, preserving an accurate representation of the original acoustic signal

Excellent low-noise floor: single-digit A-weighted self-noise supports precise low-level sound measurement in quiet environments such as anechoic or noise-critical testing

Extended high-frequency capability: response up to 200 kHz broadens suitability beyond standard audio range into ultrasonic and specialized acoustic research applications

Purpose-built for precision acoustic instrumentation: ideal impedance-conversion front-end for sound level meters, acoustic calibrators, and other measurement-grade instrumentation using standard 1/2" condenser microphones

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance
    product details

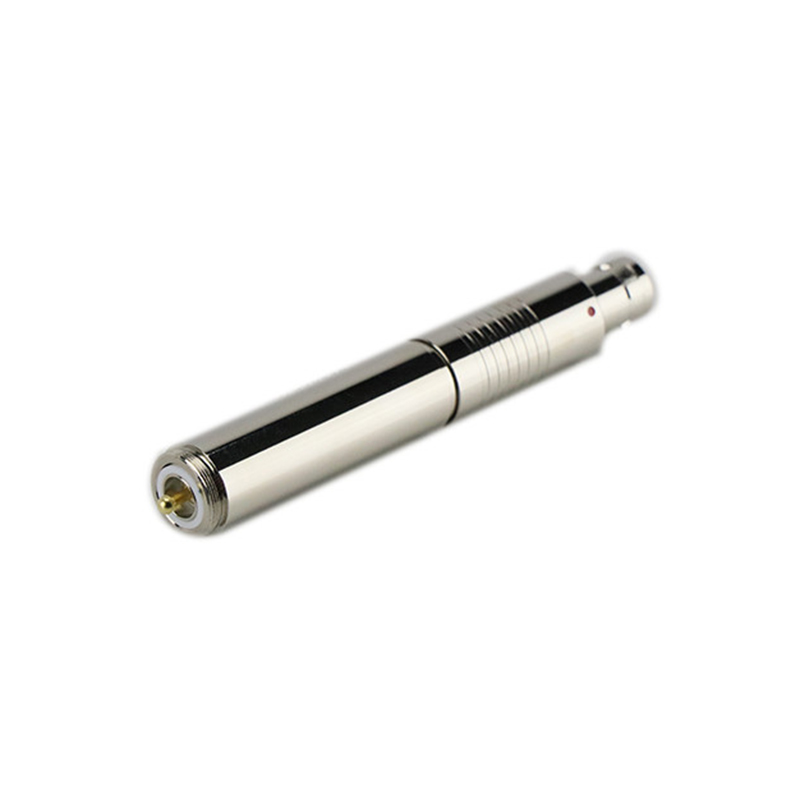

    AWA14601L Preamplifier01
    01

    Product Description

    The AWA14601L preamplifier is an impedance converter characterized by high input impedance and low output impedance; it is primarily designed for use with measurement condenser microphones and other acoustic measurement instruments to conduct acoustic measurements. It is compatible with φ12.7 mm (1/2-inch) condenser microphones.

    Product Video

    Features

    1/2" (Φ12.7mm) form factor — compatible with φ12.7 mm prepolarized measurement condenser microphones
    Wide frequency response: 20 Hz–20 kHz (±0.2 dB); 10 Hz–200 kHz (±0.5 dB)
    Wide linear dynamic range: 20 dB–143 dB
    Unity transmission gain: 0 dB (no signal loss or amplification)
    High input resistance: ≥2 GΩ
    Low input capacitance: ≤1 pF
    Low output impedance: ≤1000 Ω
    Low self-noise: A-weighted ≤9 dB, C-weighted ≤11 dB, Z-weighted ≤17 dB (20 Hz–20 kHz)
    Wide operating voltage range: 9V–60V

    Main Performance Indicators

    AWA14601L Preamplifier

    Size

    Φ12.7mm(1/2")

    Frequency response

    20Hz~20kHz±0.2dB

    10Hz~200kHz±0.5dB

    Linear range

    20dB~143dB

    Transmission gain

    0dBdB

    Input resistance

    ≥2GΩ

    Input capacitance

    ≤1pF

    Output impedance

    ≤1000Ω

    Self-noise

    A-weighted ≤ 9 dB, C-weighted ≤ 11 dB, Z-weighted ≤ 17 dB (20 Hz–20 kHz)

    Operating voltage

    9V~60V

    Polarization voltage

    0V

    Compatible microphone

    φ12.7 mm prepolarized

    measurement condenser microphone
