AWA14522 1/2" Outdoor Pressure-Field Measuring Microphone
Remote Calibration Capability — The dedicated electrostatic calibration protective cap allows sensitivity to be verified remotely, without physical access to the microphone — a major advantage for permanently installed or hard-to-reach outdoor monitoring stations.
Engineered for Outdoor Durability — Purpose-designed for continuous outdoor operation, withstanding extreme temperatures (-30°C to +80°C) and full humidity range (0–100% RH) without compromising accuracy.
Class 1 Precision, IEC 61672 Compliant — Meets rigorous Class 1 engineering measurement standards, ensuring lab-grade accuracy suitable for regulatory and compliance-driven environmental noise monitoring.
Low Noise Floor, High Sensitivity — With a noise floor of ≤18 dB(A) and sensitivity of 47.3 mV/Pa, the microphone captures subtle environmental sound changes with excellent clarity and precision.
Laser-Welded Diaphragm for Long-Term Reliability — Superior build quality ensures stable, consistent performance over extended outdoor deployment periods.
Seamless System Integration — Standard 11.7 mm-60 UNS preamplifier threading ensures easy compatibility with multi-channel analyzers, noise analyzers, and electroacoustic testers.
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14522 is a sound-pressure-field measurement microphone specifically designed for outdoor use. To meet the requirements for remote outdoor calibration, it is equipped with a dedicated electrostatic calibration protective cap, enabling remote calibration of the microphone's sensitivity. The diaphragm is manufactured using laser welding, ensuring excellent stability and environmental adaptability; its performance meets the requirements for Class 1 engineering measurement microphones as specified in SJ/T 10724. The AWA14XXX series microphones are assembled and tested in cleanroom environments, offering features such as low background noise, high stability, and a wide frequency response range. They can be used in conjunction with instruments such as multi-channel analyzers, noise analyzers, and electro-acoustic testers for noise measurement and analysis, and serve as a direct replacement for measurement microphones from other domestic and international brands.
Product Video
Features
Purpose-Built for Outdoor Measurement
A 1/2-inch pressure-field measuring microphone specifically engineered for outdoor environmental noise measurement, delivering reliable performance in demanding field conditions.
Electrostatic Remote Calibration
Equipped with a dedicated electrostatic calibration protective cap, enabling remote, in-situ calibration of the microphone's sensitivity — ideal for outdoor stations where manual on-site calibration is impractical.
IEC 61094 (WS2P) Compliant
Dimensionally compliant with the IEC 61094 standard (WS2P specification), ensuring compatibility with standard measurement systems and preamplifiers.
Wide Frequency Range
Covers a broad frequency range of 3.15 Hz to 16 kHz, supporting accurate capture of environmental and community noise across a wide acoustic spectrum.
Wide Dynamic Range
Delivers a dynamic range of 18 to 145 dB with a low noise floor of ≤18 dB(A), enabling accurate measurement of both quiet ambient environments and louder outdoor noise sources.
OEM Solutions
OEM/ODM customization available. Learn more.
|
AWA14522 1/2" Outdoor Pressure-Field Measuring Microphone |
|||
|
Field Type |
Pressure Field |
Operating Temperature (°C) |
-30～+80 |
|
Diameter |
1/2 inches |
Temperature coefficient (dB/℃) (@250 Hz) |
-0.01 |
|
IEC 61094 |
WS2P |
Static pressure coefficient (dB/kPa) |
-0.01 |
|
Polarization Voltage (V) |
0 |
Operating humidity range (%RH) |
0～100 |
|
Sensitivity (mV/Pa) (@250 Hz ± 1.5 dB) |
47.3 |
Height (including protective cover) (mm) |
14.8 |
|
Frequency range (Hz) |
3.15～16k |
Diameter (including protective cover) (mm) |
13.2 |
|
Capacitance (pF) (@250 Hz) |
10 |
Height (excluding protective cover) (mm) |
13.3 |
|
Dynamic Range |
18 dBA～145 dB |
Diameter without grid (mm) |
12.7 |
|
|
|
||

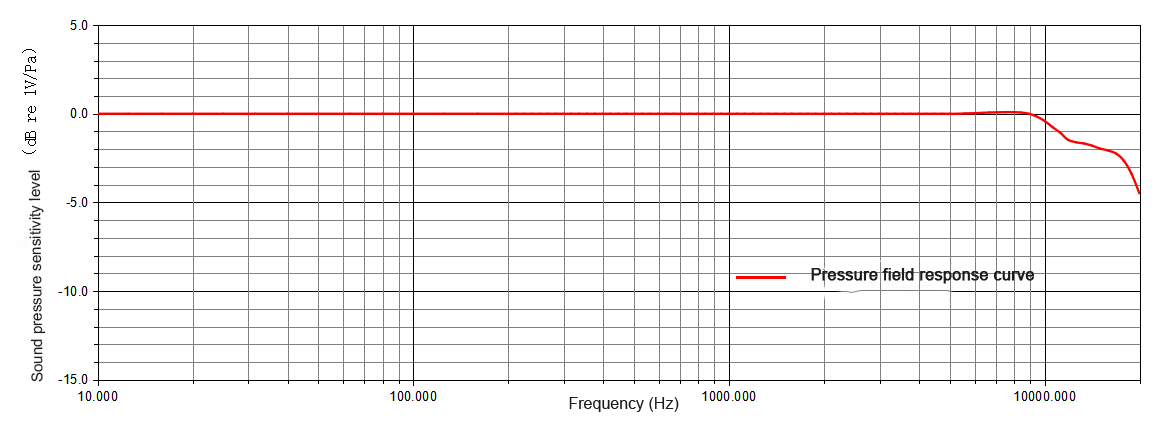

Frequency Response
