AWA14436-S14E 1/4" Pressure-Field Wideband High-SPL Measurement Microphone Set
Ultra-high SPL capability (up to 171 dB): Designed for extreme sound pressure environments, ideal for high-intensity acoustic and ultrasonic testing.
Ultra-wide frequency response (up to 70 kHz): Enables precise measurement of high-frequency and ultrasonic signals for advanced acoustic analysis.
Wide dynamic range (57 dBA–171 dB): Accurately covers both low-level and extremely high sound pressure measurements.
TEDS smart sensor support (IEEE 1451.4): Enables automatic sensor identification and digital calibration data management for efficient system integration.
IEPE/ICP-compatible power interface: Supports standard constant-current power supply systems for easy compatibility with mainstream acoustic analyzers.
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14436-S14E is a measurement unit comprising a pressure-field microphone and a preamplifier, specifically designed for high-frequency, high-sound-pressure-level (SPL) acoustic measurements in pressure fields. Supplied with an individual calibration certificate, it features a flat frequency response and supports an upper frequency limit of 70 kHz and a dynamic range upper limit of 171 dB. Compatible with mainstream acoustic analysis instruments, the unit is widely used in applications such as high-SPL testing, ultrasonic testing, noise source localization, and equipment acoustic performance testing.
Product Video
Features
Application of Pressure-Field, Wide-Band, High-SPL Microphone Units
These microphone units feature a wide frequency response range and a high dynamic range upper limit, making them ideal for applications such as high sound pressure level (SPL) testing, ultrasonic testing, noise source localization, and equipment acoustic performance testing.
Compatibility
The AWA14436-S14E measurement microphone unit requires an external constant-current power supply module capable of providing 2 mA to 20 mA of current and an open-circuit voltage of 24 V. Different manufacturers may use various names for such power supply modules and their powering modes, such as IEPE (Integrated Electronics Piezo-Electric), ICP (Integrated Constant-Current Power), CCP (Constant-Current Power), or CCLD (Constant-Current Line Drive).
TEDS-Enabled Measurement Microphone Unit
Supports TEDS (Transducer Electronic Data Sheet) and is programmed according to the IEEE 1451.4 standard (V1.0 format). It is compatible with smart sensor technology, facilitating the integration and automated management of sensor information.
Calibration
Each measurement microphone unit is calibrated at the factory using traceable calibration equipment and is supplied with a calibration certificate. Annual recalibration is recommended.
Quality and Warranty
All Aihua microphones utilize second-generation alloy diaphragms, high-strength protective grids, and synthetic corundum insulators, ensuring exceptional stability and reliability. Compared to traditional nickel or stainless steel, these alloy diaphragms offer superior corrosion resistance, high-temperature stability, impact resistance, and specific strength. All microphones are assembled and tested in a Class 1000 cleanroom to ensure the highest quality. The measurement microphone units come with a one-year warranty, backed by comprehensive after-sales support.
|
AWA14436-S14E 1/4" Pressure-Field Wideband High-SPL Measurement Microphone Set |
|||
|
Sound Field Type |
Pressure field |
Pressure Equalization |
Side venting |
|
Diameter |
1/4 inch |
Operating Temperature (°C) |
-30 to +80 |
|
Dimensions Standard (IEC 61094) |
WS3P |
Temperature Coefficient (dB/°C) (@250 Hz) |
-0.01 (-10°C to 50°C) |
|
Power Supply |
IEPE (2 mA to 20 mA) |
Static Pressure Coefficient (dB/kPa) |
-0.005 |
|
Sensitivity (mV/Pa) (@250 Hz ±2.0 dB) |
1.0 |
Input Impedance/Capacitance |
≥10 GΩ / ≤0.5 pF |
|
Frequency Range (Hz) |
3.15 to 70k |
Output Voltage |
≥5 Vrms @ 24 V supply |
|
Polarization Voltage (V) |
0 |
Output Impedance |
≤50 Ω |
|
Dynamic Range |
57 dBA to 171 dB |
TEDS |
Standard |
|
Noise Floor (dBA) |
≤57 |
Output Connector |
BNC |

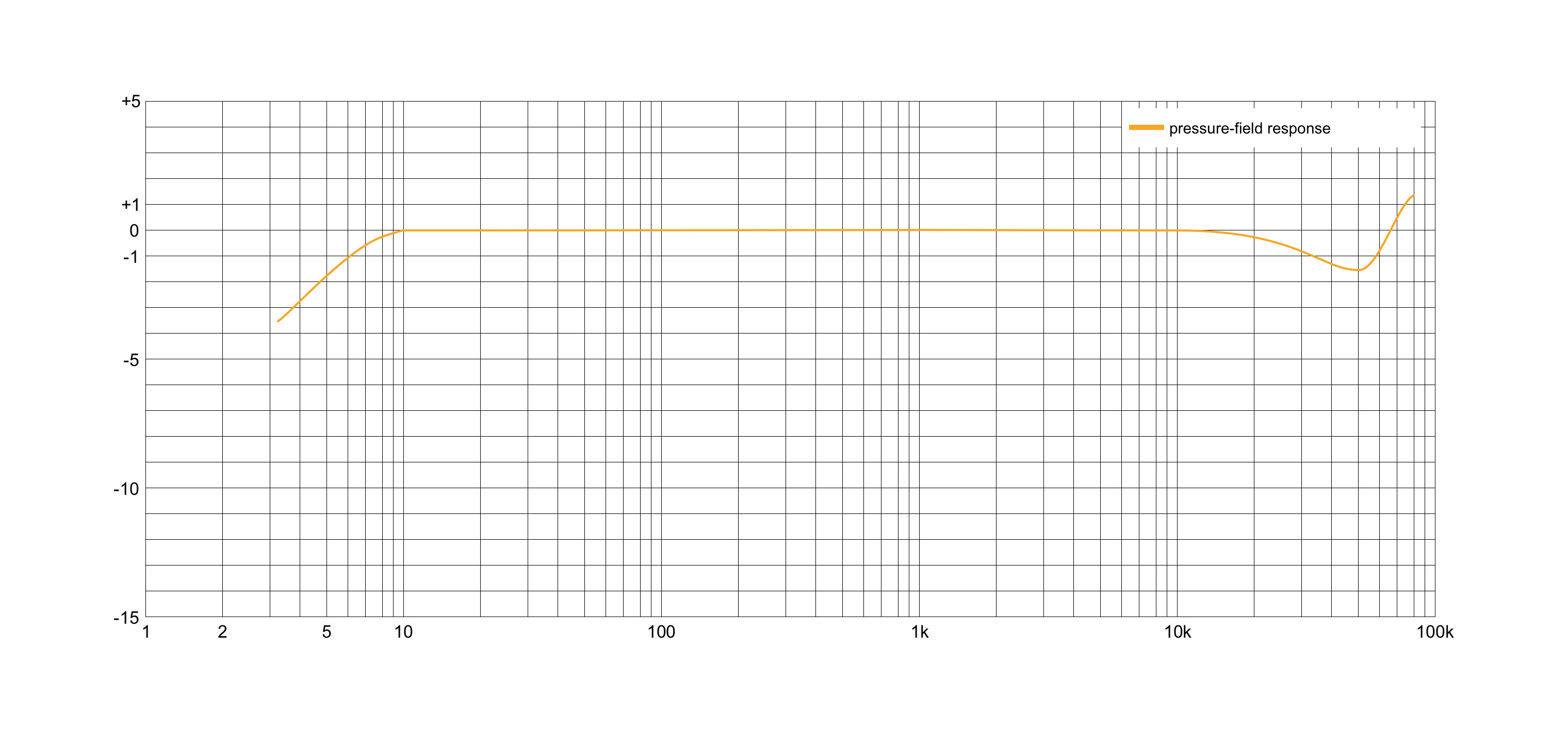

Frequency Response
