AWA14436 1/4" Prepolarized Pressure Field Wideband High SOP Measurement Microphone
Ultra-high dynamic range (up to 176 dB): Designed for extreme sound pressure environments, ideal for high SPL testing and industrial acoustic analysis.
Wide frequency response up to 70 kHz: Supports high-frequency and ultrasonic measurement applications with excellent accuracy.
Pressure field optimized design: Engineered for high-intensity acoustic environments, ensuring stable and reliable measurements in confined or direct sound fields.
Robust stability and environmental resistance: Operates reliably in -30°C to +80°C and 0–100% RH with low drift and strong long-term durability.
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14436 prepolarized pressure field wideband high SOP measurement microphone is designed for high-frequency, high SOP level pressure field acoustic measurement scenarios. It includes an independent calibration certificate, features a flat frequency response, supports a frequency upper limit of 70 kHz and a dynamic upper limit of 176 dB. The microphone supports connection to mainstream acoustic analysis instruments and is widely used in high SOP testing, ultrasonic testing, noise source localization, and equipment acoustic performance testing.
Product Video
Features
Application of pre polarized pressure field broadband high sound pressure measurement microphone
The pre polarized pressure field broadband high sound pressure microphone has a wide measurement frequency range and a high dynamic upper limit, making it very suitable for fields such as high sound pressure testing, ultrasonic testing, noise source localization, and equipment acoustic performance testing.
Quality and Warranty
The microphones utilize a second-generation alloy diaphragm, high-strength protective grille, and synthetic corundum insulator, making them stable and reliable measurement microphones on the market.
Compatibility
The AWA14436 measuring microphone is compatible with IEPE or conventional preamplifiers from various manufacturers. IEPE is a general-purpose constant current source power supply technology used in preamplifiers.
Calibration
Each measuring microphone is calibrated using traceable calibration equipment at the factory and comes with a calibration certificate. It is recommended to recalibrate at least once a year.
OEM Solutions
OEM/ODM customization available. Learn more.
|
AWA14436 Prepolarized Pressure Field Wideband High Sound Pressure Measurement Microphone |
|||
|
Field Type |
Pressure Field |
Lower limit frequency (-3dB) (Hz) |
3.15 |
|
Diameter |
1/4 inch |
Operating Temperature (°C) |
-30～+80 |
|
IEC 61094 |
WS3P |
Temperature coefficient (dB/℃) (@250 Hz) |
-0.01（-10 ℃～50 ℃） |
|
Polarization Voltage (V) |
0 |
Static pressure coefficient (dB/kPa) |
-0.005 |
|
Sensitivity (mV/Pa) (@250 Hz ± 2.0 dB) |
1.0 |
Operating humidity range (%RH) |
0～100 |
|
Frequency range (Hz) |
3.15～70k |
Height with grid (mm) |
10.4 |
|
Capacitance (pF) (@250 Hz) |
3.5 |
Diameter with grid (mm) |
7 |
|
Dynamic Range |
53 dBA～176 dB |
Height without grid (mm) |
9.1 |
|
Noise floor (dBA) |
≤53 |
Diameter without grid (mm) |
6.35 |
|
Voltage Equalization Method |
Side Pressure Equalization |
Preamplifier Fitting Thread |
5.7 mm-60 UNS |

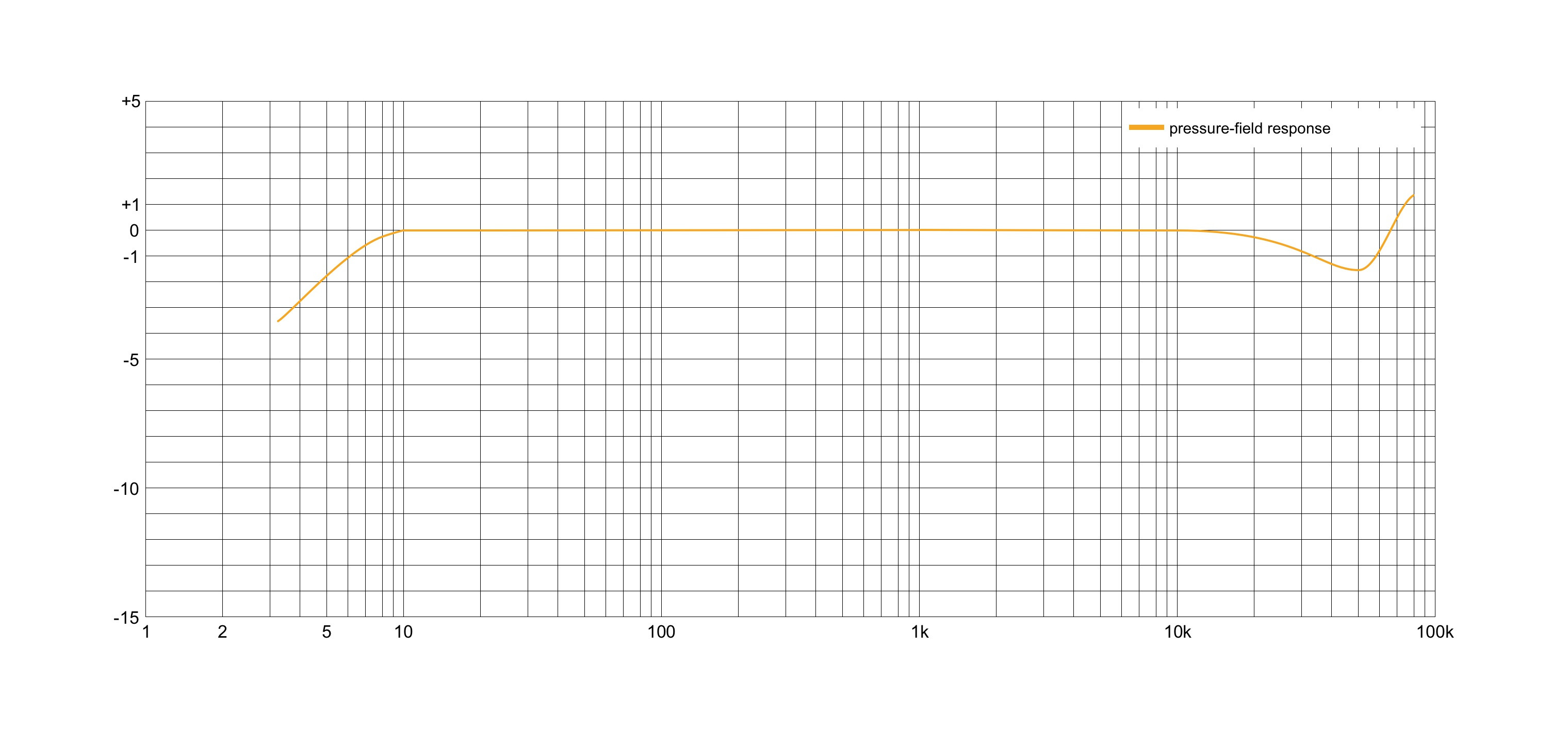

Frequency Response
