AWA14435-S14E 1/4" Free-field High Sound Pressure Measurement Microphone Set
Free-field measurement accuracy: purpose-built for anechoic and semi-anechoic environments, delivering precise, directionally-optimized measurements where reflections must be eliminated
Wide frequency coverage: typical 5 Hz–20 kHz response supports a broad range of acoustic testing needs, from low-frequency noise analysis to high-frequency detail capture
Traceable, certified accuracy: individually calibrated with a traceable calibration certificate included, ensuring measurement confidence and compliance with quality standards right out of the box
Smart sensor integration: TEDS support (IEEE 1451.4, V1.0) enables automatic sensor recognition and configuration, streamlining setup and reducing errors in multi-channel or automated test systems
Broad instrument compatibility: standard IEPE/ICP/CCP/CCLD constant-current powering (2–20 mA, 24V open-circuit) ensures seamless integration with mainstream acoustic analyzers and data acquisition systems
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14435-S14E is a Cartridge comprising a free-field measurement microphone and a preamplifier, specifically designed for free-field acoustic measurement applications. Supplied with an individual calibration certificate, it is suitable for acoustic environments that are either reflection-free or characterized by sound waves incident from specific directions (such as anechoic or semi-anechoic chambers). Featuring a high-precision capacitive microphone, the Cartridge offers a wide frequency range (typically 5 Hz to 20 kHz), a compact size, and excellent stability. It is compatible with mainstream acoustic analysis instruments and is widely used in fields such as noise source localization, acoustic performance testing of equipment, and architectural acoustics assessment.
Product Video
Features
Applications of Free-Field High-Sound-Pressure Microphone Set
Free-field high-sound-pressure microphone cartridges feature a wide frequency response range and a high dynamic upper limit, making them suitable for various measurement scenarios. Designed specifically for anechoic or echo-free environments, these cartridges are widely used in fields such as acoustic research, noise monitoring, and sound system testing.
Compatibility
The AWA14435-S14E measurement microphone cartridge requires an external constant-current power supply module capable of providing a current of 2 mA to 20 mA and an open-circuit voltage of 24 V. Different manufacturers may use various terms for such power supply modules and their powering modes, such as IEPE (Integrated Electronics Piezo-Electric), ICP (Integrated Circuit Piezoelectric), CCP (Constant Current Power), or CCLD (Constant Current Line Drive).
TEDS Measurement Microphone Set
This set supports TEDS (Transducer Electronic Data Sheet) and is programmed in accordance with the IEEE 1451.4 standard (V1.0 format). It is compatible with smart sensor technology, facilitating the integration and automated management of sensor information.
Calibration
Each measurement microphone set is calibrated using traceable equipment prior to shipment and comes with a calibration certificate. Annual recalibration is recommended.
Quality and Warranty
All Aihua microphones utilize second-generation alloy diaphragms, high-strength protective grids, and synthetic corundum insulators, ensuring exceptional stability and reliability. Compared to traditional nickel or stainless steel, these alloy diaphragms offer superior corrosion resistance, high-temperature stability, impact resistance, and specific strength. To ensure the highest quality, all microphones are assembled and tested in Class 1000 cleanrooms. The measurement microphone cartridge comes with a one-year warranty, backed by comprehensive after-sales support.
|
AWA14435-S14E 1/4" Free-field High Sound Pressure Measurement Microphone Set |
|||
|
Sound Field Type |
Free field |
Pressure Equalization |
Post-equalization |
|

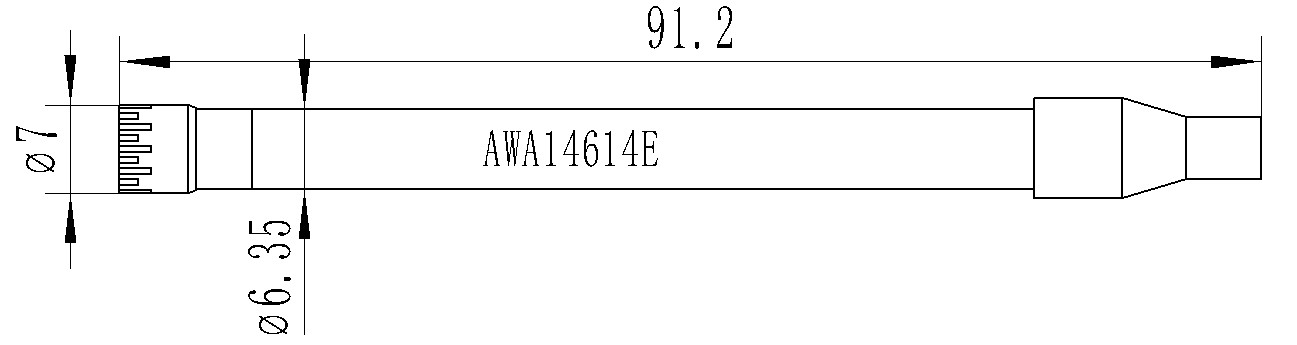

Diameter |
1/4 inch |
Operating Temperature (°C) |
-30 to +80 |
|
Dimensions Standard (IEC 61094) |
WS3F |
Temperature Coefficient (dB/°C) (@250 Hz) |
-0.01 (-10°C to 50°C) |
|
Power Supply |
IEPE (2 mA to 20 mA) |
Static Pressure Coefficient (dB/kPa) |
-0.005 |
|
Sensitivity (mV/Pa) (@250 Hz ±2.0 dB) |
4.0 |
Input Impedance/Capacitance |
≥10 GΩ / ≤0.5 pF |
|
Frequency Range (Hz) |
5～20k |
Output Voltage |
≥5 Vrms @ 24 V supply |
|
Polarization Voltage (V) |
0 |
Output Impedance |
≤50 Ω |
|
Dynamic Range |
43 dBA～160 dB |
TEDS |
Standard |
|
Noise Floor (dBA) |
≤43 |
Output Connector |
BNC |

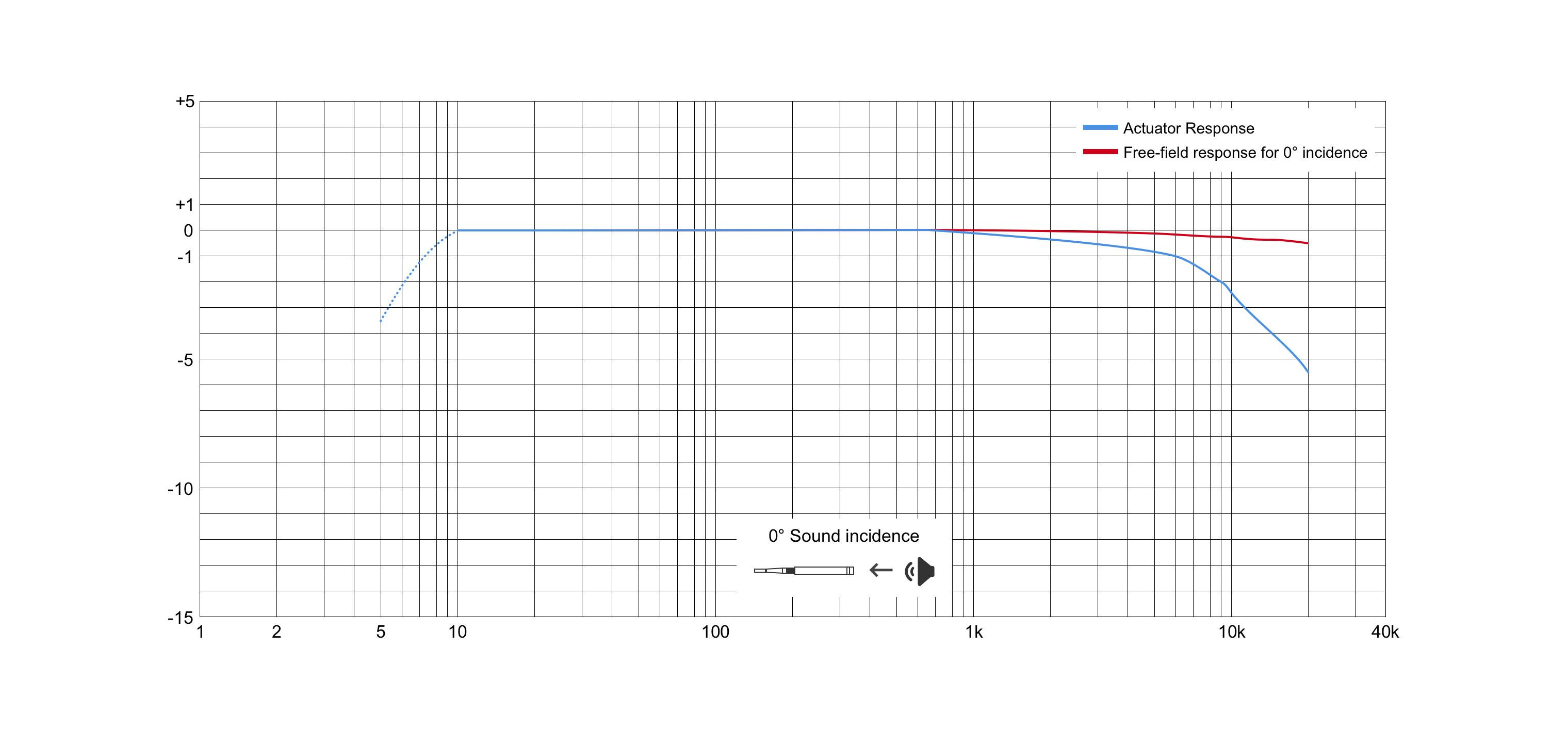

Frequency Response
