AWA14435 1/4" High-SPL Free-Field Microphone
High-precision free-field measurement capability: Designed for accurate acoustic testing in reflection-free environments such as anechoic and semi-anechoic chambers.
Wide dynamic range (40–167 dB): Supports both low-level sound and high sound pressure measurements, ensuring versatile application coverage.
Stable 1/4-inch engineering design (SJ/T 10724 Class 2): Compact structure optimized for high SPL and precision measurement with strong environmental adaptability.
Flexible system integration & expandability: Compatible with 1/2-inch adapters and 1/4-inch preamplifiers, and can be configured for sound intensity measurement after phase processing.
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14435 measuring microphone is a 1/4-inch measuring microphone specifically designed for high-precision, high-sound-pressure free-field measurements. It features a wide dynamic range, good stability, and environmental adaptability, meeting the Class 2 engineering measuring microphone requirements. It can be used with the AWA8750 adapter and a 1/2-inch preamplifier, or directly with the AWA14614E 1/4-inch preamplifier. Furthermore, after phase filtering, it can be configured as a sound intensity probe for sound intensity measurement. The assembly and debugging of the AWA144XX series measuring microphones are performed in a cleanroom, featuring low background noise, high stability, and a wide frequency response range. It can be used with multi-channel analyzers, noise analyzers, electroacoustic testers, and other instruments for noise measurement and analysis, and can also replace measuring microphones from other domestic and international brands.
Product Video
Features
High-precision free-field measurement design: Optimized for accurate acoustic measurement in reflection-free environments such as anechoic and semi-anechoic chambers.
Wide dynamic range (40–167 dB): Supports both low-level and high sound pressure level measurements for versatile acoustic testing.
Wide frequency response (5 Hz–20 kHz): Ensures stable and accurate performance across low to mid-high frequency ranges.
Standard compliance (IEC 61094 WS3F): Meets international standards for engineering-grade free-field measurement microphones.
Flexible system compatibility: Supports 1/2-inch adapter (AWA8750) and direct 1/4-inch preamplifier connection (AWA14614E).
Post-equalization design: Provides improved signal processing flexibility for accurate acoustic analysis.
Low noise and high stability: Cleanroom assembly ensures consistent performance and low background noise.
Wide environmental adaptability: Reliable operation from -30°C to +80°C and 0–100% RH conditions.
Compact 1/4-inch structure: Suitable for high sound pressure and precision measurement applications in limited spaces.
Expandable sound intensity capability: Can be configured as a sound intensity probe after phase filtering for advanced measurements.
OEM/ODM customization available. Learn more.
|
AWA14435 Measuring Microphone |
|
|
Sound Field Type |
Free Field |
|
Diameter |
1.4 inches |
|
Dimensions conform to standard (IEC 61094) |
WS3F |
|
Polarization Voltage (V) |
0 |
|
Sensitivity (mV/Pa) (@250 Hz±2.0 dB) |
4.0 |
|
Frequency Range (Hz) |
5～20k |
|
Typical Capacitance (pF) (@250Hz) |
6 |
|
Dynamic range (dB) |
40～167 |
|
Noise floor (dBA) |
≤40 |
|
Voltage Equalization Method |
Post-Equalization |
|
Operating Temperature (°C) |
-30～+80 |
|
Temperature Coefficient (dB/℃) (@250Hz) |
-0.01（-10 ℃～50 ℃） |
|
Static pressure coefficient (dB/kPa) |
-0.005 |
|
Operating humidity range (%RH) |
0～100 |
|

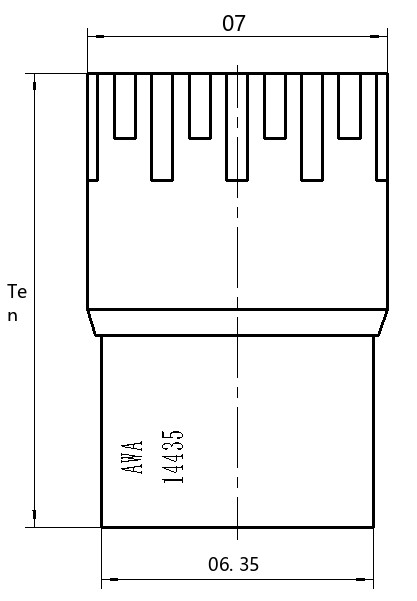

Height (including protective cover) (mm) |
10.4 |
|
Diameter (including protective cover) (mm) |
7 |
|
Height (excluding protective cover) (mm) |
9.0 |
|
Diameter (excluding protective cover) (mm) |
6.35 |
|
Preamplifier Fitting Thread |
5.7 mm-60 UNS |

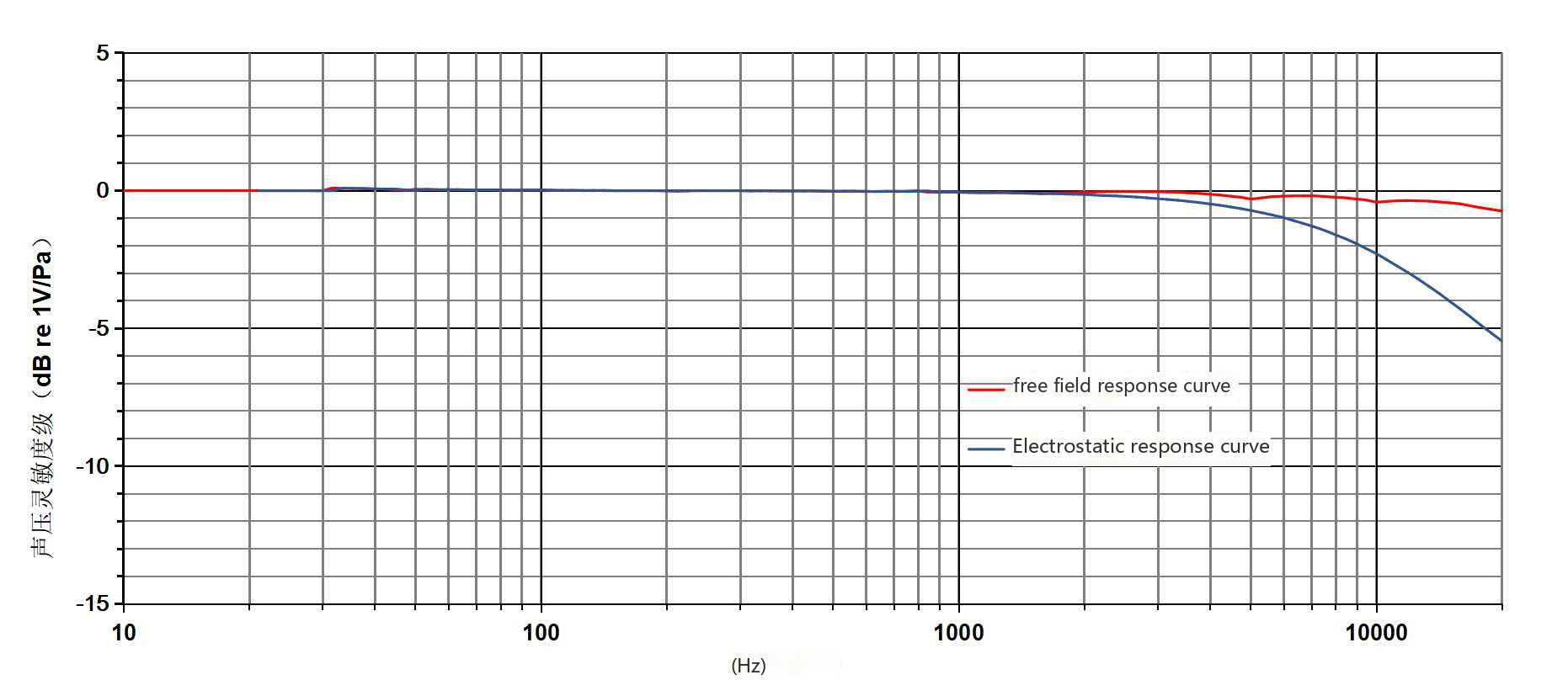

Frequency Response
