AWA14431-S14E 1/4" Free-field Broadband Measurement Microphone Set
Ultra-wideband frequency response: flat 3.15 Hz–80 kHz response enables accurate capture of both low-frequency noise and high-frequency/ultrasonic signals within a single sensor
High dynamic range capability: withstands sound pressure levels up to 160 dB, making it ideal for measuring extremely loud acoustic events without signal clipping or distortion
Ultrasonic testing ready: exceptional high-frequency extension supports specialized applications such as ultrasonic leak detection, partial discharge testing, and high-frequency mechanical diagnostics
Free-field measurement precision: optimized for anechoic and semi-anechoic environments, delivering accurate, directionally-correct measurements free from reflection interference
Universal instrument compatibility: standard IEPE/ICP/CCP/CCLD constant-current powering (2–20 mA, 24V open-circuit) ensures easy integration with mainstream acoustic analyzers and DAQ systems
Superior build quality and durability: second-generation alloy diaphragm provides better corrosion resistance, high-temperature stability, and impact resistance than conventional nickel or stainless steel diaphragms
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14431-S14E is a set comprising a free-field measurement microphone and a preamplifier, specifically designed for free-field acoustic measurement applications. Supplied with an individual calibration certificate, it is suitable for acoustic environments that are either reflection-free or characterized by sound waves incident from specific directions (such as anechoic or semi-anechoic chambers). It features a flat frequency response ranging from 3.15 Hz to 80 kHz, the ability to withstand sound pressure levels up to 160 dB, and advantages such as compact size and high stability. Compatible with mainstream acoustic analysis instruments, the unit is widely used in fields including noise source localization, acoustic performance testing of equipment, and ultrasonic testing.
Product Video
Features
Applications of Free-Field Wideband Microphone Sets
Free-field wideband microphone cartridges feature an exceptionally wide frequency response range and a high dynamic upper limit. Capable of accurately capturing high-frequency acoustic signals, they are ideally suited for applications such as high-frequency signal testing, noise source localization, and acoustic performance testing of equipment.
Compatibility
The AWA14431-S14E measurement microphone set requires an external constant-current power supply module capable of delivering 2 mA to 20 mA of current and an open-circuit voltage of 24 V. Manufacturers may use various terms for such power modules and their supply modes, including IEPE (Integrated Electronics Piezo-Electric), ICP (Integrated Constant-current Circuit), CCP (Constant Current Power), and CCLD (Constant Current Line Drive).
TEDS-Enabled Measurement Microphone Unit
This cartridge supports TEDS (Transducer Electronic Data Sheet) functionality, is programmed according to the IEEE 1451.4 standard, and complies with V1.0 format requirements. It is compatible with smart sensor technology, facilitating the integration and automated management of sensor information.
Calibration
Each measurement microphone set is calibrated at the factory using traceable calibration equipment and is supplied with a calibration certificate. Annual recalibration is recommended.
Quality and Warranty
All Aihua microphones utilize second-generation alloy diaphragms, high-strength protective grids, and synthetic corundum insulators, making them highly stable and reliable measurement microphones. Compared to traditional nickel or stainless steel, these alloy diaphragms offer superior corrosion resistance, high-temperature stability, impact resistance, and specific strength. All microphones are assembled and tested in a Class 1000 cleanroom to ensure the highest quality. The measurement microphone cartridge comes with a one-year warranty, backed by comprehensive after-sales support.
|
AWA14431-S14E 1/4" Free-field Broadband Measurement Microphone Set |
|||
|
Sound Field Type |
Free field |
Pressure Equalization |
Post-equalization |
|
Diameter |
1/4 inch |
Operating Temperature (°C) |
-30 to +80 |
|
Dimensions Standard (IEC 61094) |
WS3F |
Temperature Coefficient (dB/°C) (@250 Hz) |
-0.01 (-10°C to 50°C) |
|
Power Supply |
IEPE (2 mA to 20 mA) |
Static Pressure Coefficient (dB/kPa) |
-0.005 |
|
Sensitivity (mV/Pa) (@250 Hz ±2.0 dB) |
4.0 |
Input Impedance/Capacitance |
≥10 GΩ / ≤0.5 pF |
|
Frequency Range (Hz) |
3.15～80k |
Output Voltage |
≥5 Vrms @ 24 V supply |
|
Polarization Voltage (V) |
0 |
Output Impedance |
≤50 Ω |
|
Dynamic Range |
43 dBA～160 dB |
TEDS |
Standard |
|
Noise Floor (dBA) |
≤43 |
Output Connector |
BNC |

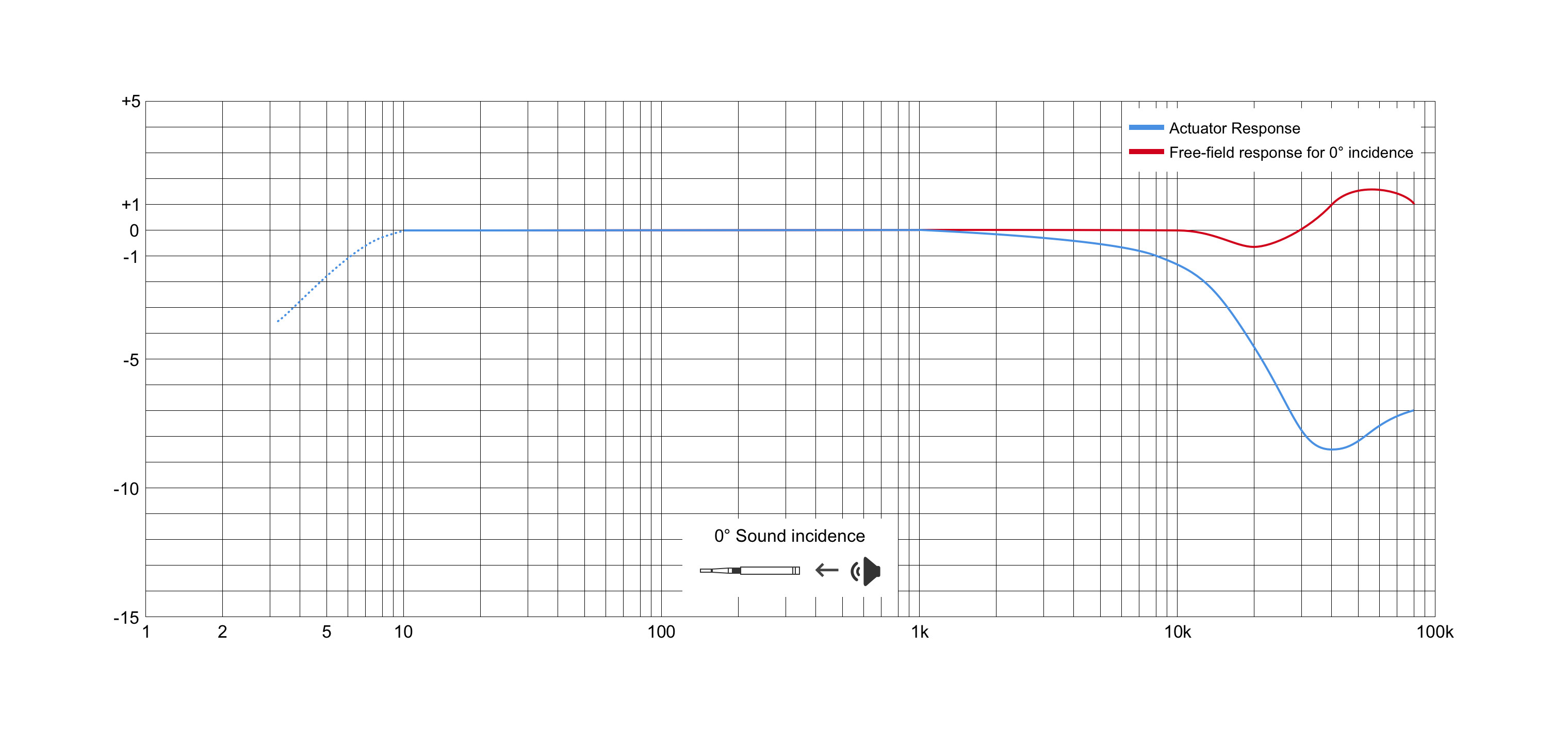

Frequency Response
