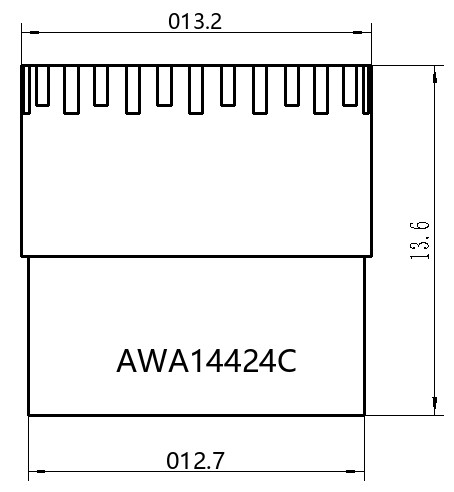

Dimensions
Microphone
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA14426 1/2" Prepolarized Pressure Field Measurement Microphone
Compatible with IEPE or conventional preamplifiers from various manufacturers.
Optimized for cavity and electroacoustic testing: Specifically designed for simulated ears and coupling cavity applications in electroacoustic and audio performance testing.
Stable and reliable measurement performance: Low sensitivity drift with excellent temperature and pressure stability for consistent long-term results.
Wide dynamic range & environmental adaptability: Supports 25–161 dB measurement range and operates in -30°C to +80°C with 0–100% RH for versatile testing environments.
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14426 prepolarized pressure field measurement microphone is designed for use with coupling cavities such as simulated ears for related electroacoustic testing. It has a frequency range up to 20 kHz, good stability and environmental adaptability, and its performance meets the requirements of IEC 61094 WS2P standard.
Product Video
Features
Applications of Prepolarized Pressure Field Measurement Microphones
Prepolarized pressure field microphones have a wide measurement frequency range and are designed specifically for precision cavity measurements, widely used in acoustic research and electroacoustic testing.
Quality and Warranty
The microphones utilize second-generation alloy diaphragms, high-strength protective grilles, and synthetic corundum insulators, making them stable and reliable measurement microphones on the market. Compared to traditional nickel and stainless steel, alloy diaphragms offer superior corrosion resistance, high-temperature stability, shock resistance, and specific strength.
Compatibility
The AWA14426 measurement microphone is compatible with IEPE or conventional preamplifiers from various manufacturers. IEPE is a general-purpose constant current source power supply technology used in preamplifiers.
Calibration
Each measurement microphone is calibrated at the factory using traceable calibration equipment and comes with a calibration certificate. Recalibration is recommended at least annually.
OEM Solutions
OEM/ODM customization available. Learn more.
|
AWA14426 Prepolarized Pressure Field Measurement Microphone |
|||
|
Field Type |
Pressure Field |
Lower limit frequency (-3dB) (Hz) |
3.15 |
|
Diameter |
1/2 inches |
Operating Temperature (°C) |
-30～+80 |
|
IEC 61094 |
WS2P |
Temperature coefficient (dB/℃) (@250 Hz) |
-0.01 |
|
Polarization Voltage (V) |
0 |
Static pressure coefficient (dB/kPa) |
-0.01 |
|
Sensitivity (mV/Pa) (@250 Hz ± 2.0 dB) |
12.6 |
Operating humidity range (%RH) |
0～100 |
|
Frequency range (Hz) |
3.15-20k |
Height with grid (mm) |
13.3 |
|
Capacitance (pF) (@250 Hz) |
11（@250 Hz） |
Diameter with grid (mm) |
13.2 |
|
Dynamic Range |
25 dBA-161 dB |
Height without grid (mm) |
12.5 |
|
Noise floor (dBA) |
≤25 |
Diameter without grid (mm) |
12.7 |
|
Voltage Equalization Method |
Side Equalization |
Preamplifier Fitting Thread |
11.7 mm-60 UNS |

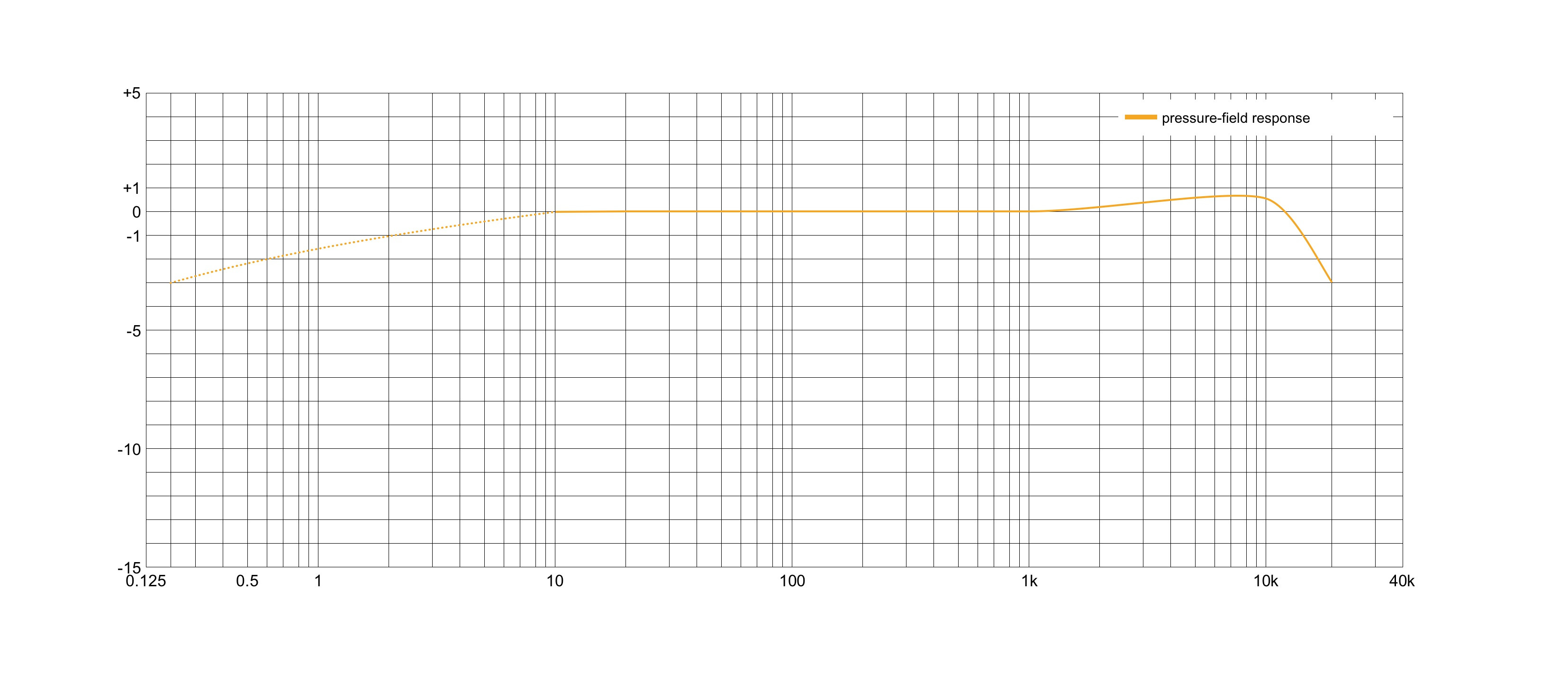

Frequency Response
