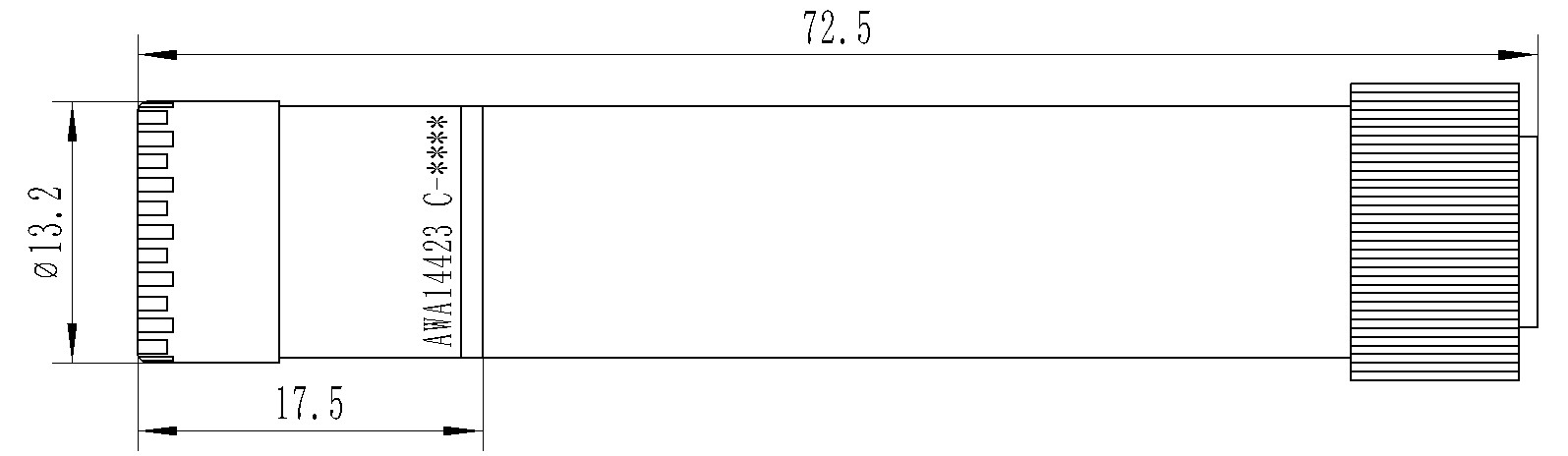

Dimensions
Microphone Unit
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA14423C-S01C 1/2” Free-field Infrasound Microphone Set
Industry-leading ultra-low frequency capability: 0.1 Hz lower limit sets a new benchmark for infrasound sensitivity, capturing the faintest low-frequency events beyond the reach of most measurement microphones
Premier infrasound and sonic boom detection: exceptional low-frequency extension makes it a top choice for specialized applications such as sonic boom analysis, atmospheric infrasound monitoring, and seismic-acoustic research
Free-field measurement precision: optimized for anechoic and semi-anechoic environments, ensuring accurate, directionally-correct measurement results
Dual-purpose functionality: seamlessly handles both ultra-low-frequency infrasound and standard acoustic measurements, reducing the need for separate specialized sensors
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14423C-S01C is a set comprising a free-field infrasound microphone and a preamplifier; designed specifically for infrasound measurement scenarios, it is also capable of standard acoustic measurements. Supplied with an individual calibration certificate, it is suitable for acoustic environments that are either anechoic or involve sound waves incident from specific directions (such as anechoic or semi-anechoic chambers). It utilizes a high-precision capacitive microphone, featuring an ultra-low frequency lower limit of 0.1 Hz, high sensitivity, and excellent stability. Compatible with mainstream acoustic analysis instruments, the cartridge is widely used in fields such as infrasound measurement, noise source localization, acoustic performance testing of equipment, and architectural acoustics assessment.
Product Video
Features
Applications of the Free-Field Infrasound Microphone Set
The free-field infrasound microphone cartridge features a wide frequency response range, extending as low as 0.1 Hz, making it suitable for various measurement scenarios such as infrasound and sonic boom measurements. It is also compatible with standard acoustic measurements, serving applications in acoustic research, noise monitoring, and sound system testing.
Compatibility
The AWA14423C-S01C free-field infrasound microphone set requires an external constant voltage source module capable of providing low-noise voltage. The source should operate within a voltage range of 5–18 V (15 V is recommended) and support a load current exceeding 10 mA.
Calibration
Each infrasound microphone set is calibrated using traceable equipment prior to shipment and is supplied with a calibration certificate. Annual recalibration is recommended.
Quality and Warranty
All Aihua infrasound microphones utilize second-generation alloy diaphragms, high-strength protective grids, and synthetic corundum insulators, ensuring exceptional stability and reliability. Compared to traditional nickel or stainless steel, these alloy diaphragms offer superior corrosion resistance, high-temperature stability, impact resistance, and specific strength. To ensure the highest quality, all microphones are assembled and tested in a Class 1000 cleanroom. The infrasound microphone cartridges come with a one-year warranty, backed by comprehensive after-sales support.
|
AWA14423C-S01C 1/2” Free-field Infrasound Microphone Set |
|||
|
Sound Field Type |
Free field |
Pressure Equalization |
Lateral pressure equalization |
|
Diameter |
1/2 inch |
Operating Temperature (°C) |
-30 to +80 |
|
Dimensions Standard (IEC 61094) |
WS2F |
Temperature Coefficient (dB/°C) (@250 Hz) |
-0.01 (-10°C to 50°C) |
|
Power Supply |
5~18（DC） |
Operating humidity (%RH) |
0～100 |
|
Sensitivity (mV/Pa) (@250 Hz ±2.0 dB) |
39.8 |
Static pressure coefficient (dB/kPa) |
-0.01 |
|
Frequency Range (Hz) |
0.2～20k |
Output Voltage |
≥7 Vrms@15V Supply |
|
Polarization Voltage (V) |
0 |
Output Impedance |
≤50 Ω |
|
Dynamic Range |
21 dBA～137 dB |
Input Impedance/Capacitance |
≥10 GΩ/≤4.3 pF |
|
Noise Floor (dBA) |
≤21 |
Output Connector |
X9 |

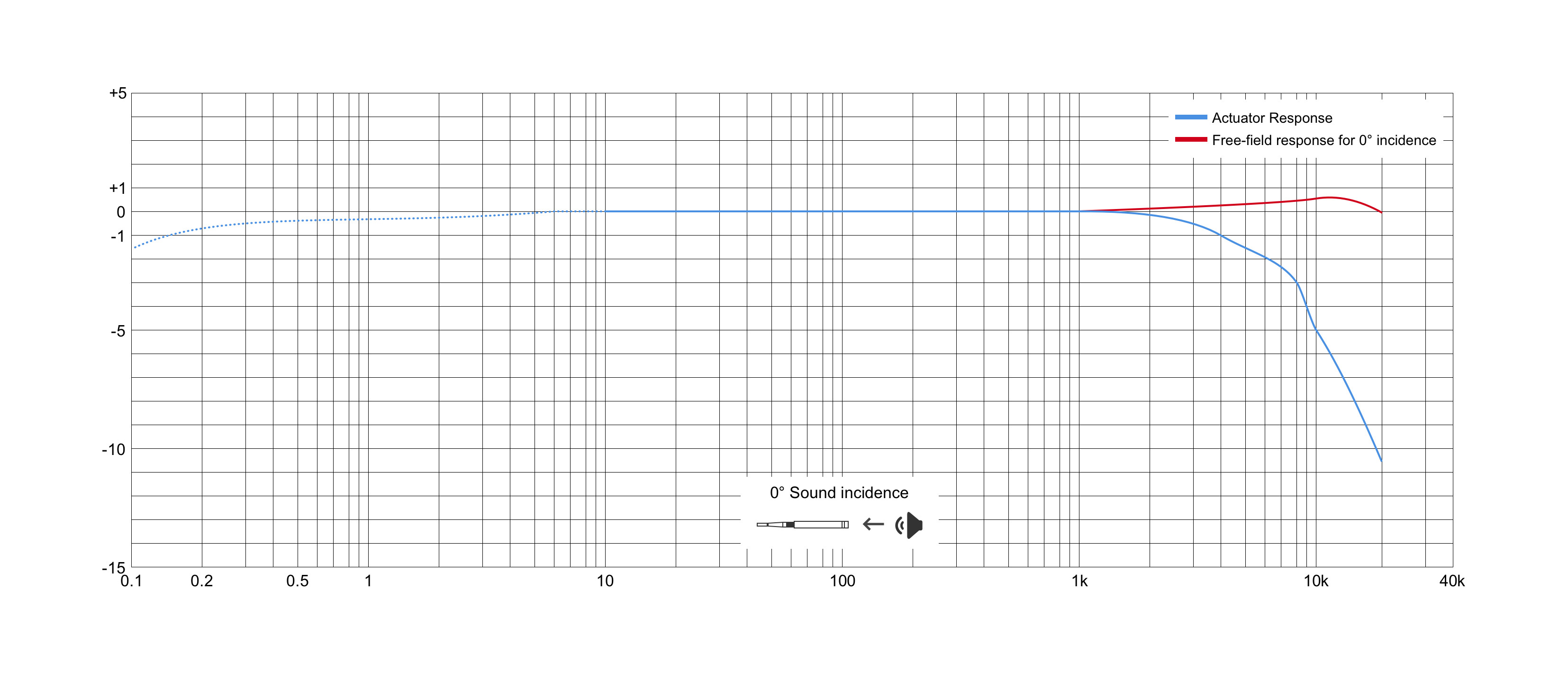

Frequency Response
