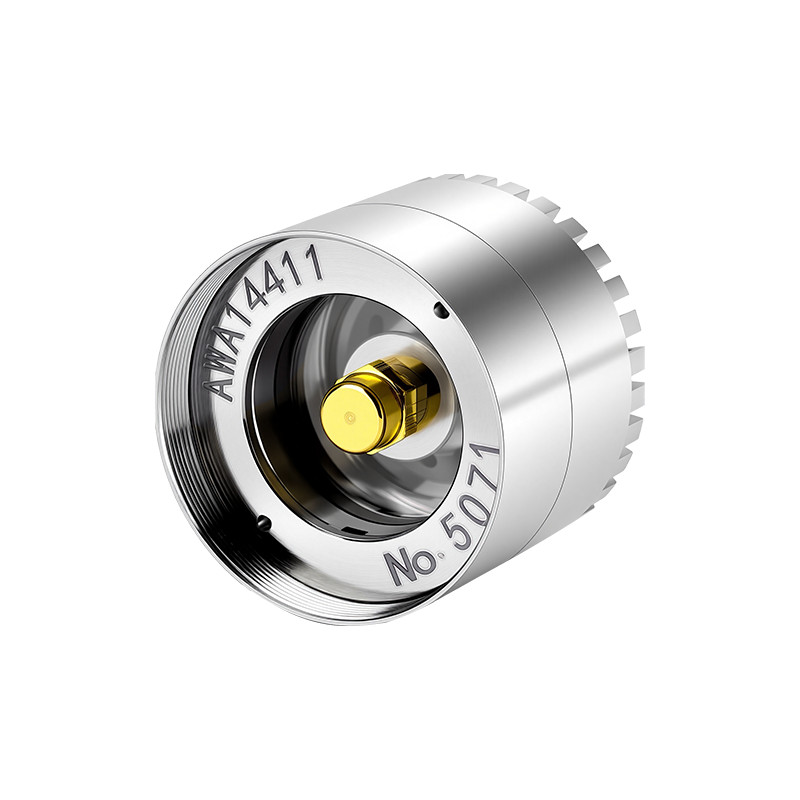

AWA14411 1" Prepolarized Free-Field Low-Noise Measurement Microphone
Ultra-low noise performance (6.5 dBA noise floor): Enables extremely sensitive detection of low-level sound signals, ideal for quiet environment measurements and precision acoustic analysis.
Large 18 mm diaphragm for high sensitivity: Provides strong signal response and improved accuracy in low-sound-level applications.
Optimized for low-level acoustic measurement: Specifically designed for sound power testing, NVH analysis, and low-noise monitoring scenarios.
Free-field high-stability design: Ensures accurate directional sound measurement in anechoic and semi-anechoic environments with strong long-term stability.
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
Ultra-low noise performance (6.5 dBA noise floor): Enables extremely sensitive detection of low-level sound signals, ideal for quiet environment measurements and precision acoustic analysis.
Large 18 mm diaphragm for high sensitivity: Provides strong signal response and improved accuracy in low-sound-level applications.
Optimized for low-level acoustic measurement: Specifically designed for sound power testing, NVH analysis, and low-noise monitoring scenarios.
Free-field high-stability design: Ensures accurate directional sound measurement in anechoic and semi-anechoic environments with strong long-term stability.
Product Video
Features
Application of Prepolarized Free Field Low Noise Measurement Microphone
The prepolarized free-field low-noise microphone features a low noise floor, down to 6.5 dBA, suitable for various measurement scenarios, including low-noise measurement, sound power measurement, and automotive NVH assessment.
Quality and Warranty
The microphone adopts a second-generation alloy diaphragm, high-strength protective grille, and artificial corundum insulator, which makes them stable and reliable measurement microphones on the market. Compared with traditional nickel and stainless steel, alloy diaphragms provide superior corrosion resistance, high temperature stability, impact resistance, and specific strength.
Compatibility
The AWA14411 measurement microphone is compatible with IEPE or conventional preamplifiers from various manufacturers. IEPE is a general-purpose constant current source power supply technology used in preamplifiers.
Calibration
Each measuring microphone is calibrated using traceable calibration equipment at the factory and comes with a calibration certificate. It is recommended to recalibrate at least once a year.
OEM Solutions
OEM/ODM customization available. Learn more.
|
AWA14411 Prepolarized Free-Field Low-Noise Measurement Microphone |
|||
|
Field Type |
Free Field |
Lower limit frequency (-3dB) (Hz) |
10 |
|
Diameter |
1 Inch |
Operating Temperature (°C) |
-30～+80 |
|
IEC 61094 |
WS1F |
Temperature coefficient (dB/℃) (@250 Hz) |
-0.02（-10 ℃～50 ℃） |
|
Polarization Voltage (V) |
0 |
Static pressure coefficient (dB/kPa) |
-0.02 |
|
Sensitivity (mV/Pa) (@250 Hz ± 2.0 dB) |
100.0 |
Operating humidity range (%RH) |
0～100 |
|
Frequency range (Hz) |
10～16k |
Height with grid (mm) |
19.0 |
|
Capacitance (pF) (@250 Hz) |
35 |
Diameter with grid (mm) |
23.77 |
|
Dynamic Range |
6.5 dBA～137 dB |
Height without grid (mm) |
18.2 |
|
Noise floor (dBA) |
≤6.5 |
Diameter without grid (mm) |
23.77 |
|
Voltage Equalization Method |
Side Voltage Equalization |
Preamplifier Fitting Thread |
23.11 mm-60 UNS |

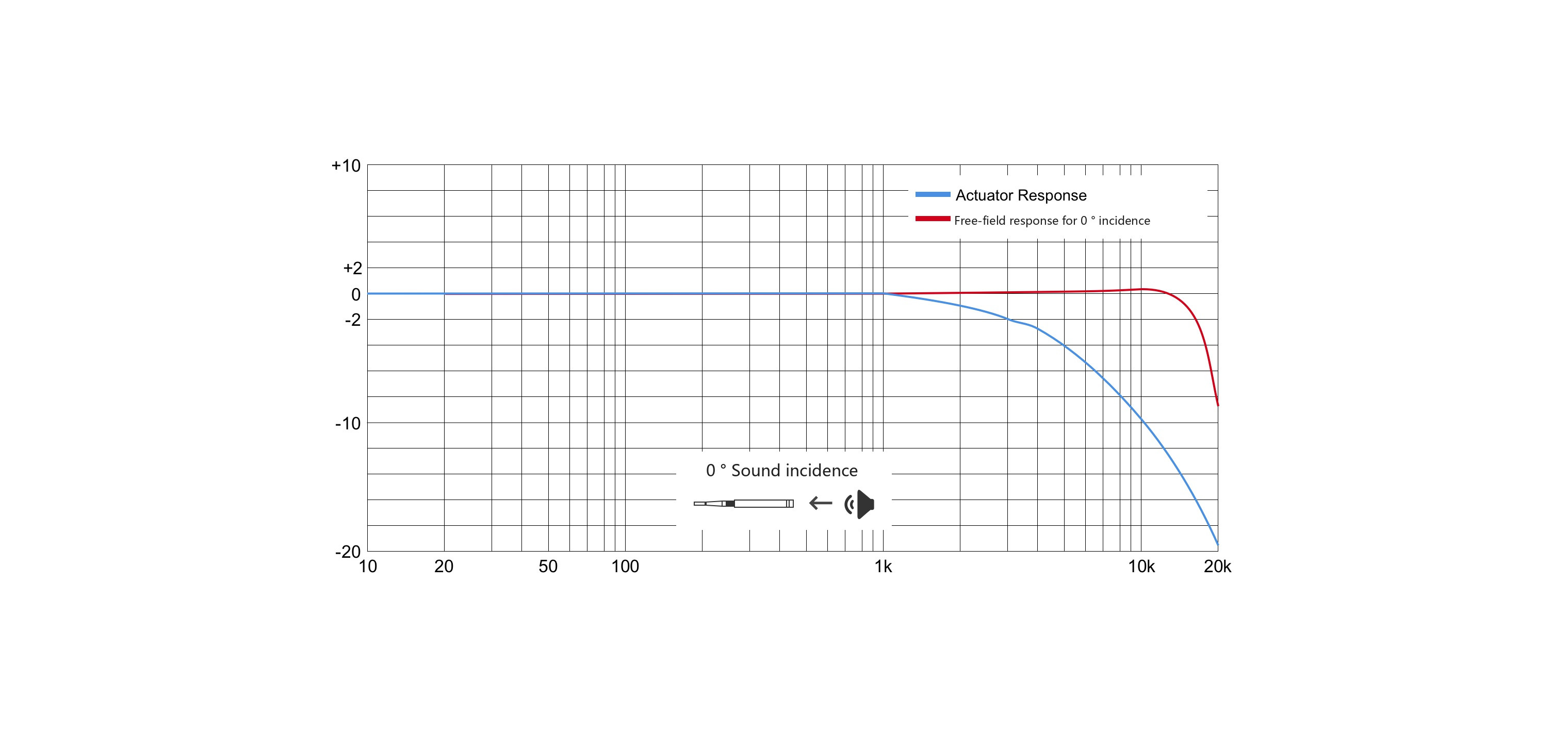

Frequency Response
