AWA14408 High-Precision 1/2" Pressure-Field Measurement Microphone
High Precision & Stability — Laser-welded diaphragm ensures consistent, reliable performance over time
Wide Dynamic Range — 37–156 dB range covers everything from quiet environments to loud noise sources
Broad Frequency Response — 10 Hz–8 kHz range suits diverse acoustic measurement needs
Low Noise Floor — ≤37 dBA background noise supports accurate low-level sound measurement
Industry Standard Compliance — Meets IEC 61094 WS2P standard for interoperability
Robust Environmental Tolerance — Functions reliably across -30°C to +80°C and 0–100% RH
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14408 measuring microphone is a sound pressure field measuring microphone that requires an external 28V
polarization voltage and is mainly used in sound calibrators. The AWA14408 diaphragm is laser-welded, providing excellent stability and environmental adaptability. Its dimensions conform to the IEC 61094 WS2P standard. Assembly and debugging of the AWA144XX series measuring microphones are performed in a cleanroom, featuring low background noise, high stability, and a wide frequency response range. It can be used with multi-channel analyzers, noise analyzers, electroacoustic testers, and other instruments for noise measurement and analysis, and can also replace measuring microphones from other domestic and international brands.
Product Video
Features
Laser-welded diaphragm for excellent stability and environmental adaptability.
Dimensions conform to IEC 61094 WS2P standard.
Assembled and debugged in a cleanroom (AWA144XX series), ensuring low background noise and high stability.
1/2-inch diaphragm diameter.
Side pressure equalization method
OEM/ODM customization available. Learn more.
|
AWA14408 Measuring Microphone |
|||
|
Field Type |
Pressure Field |
Operating Temperature (°C) |
-30～+80 |
|
Diameter |
1/2 inches |
Temperature coefficient (dB/℃) (@250 Hz) |
-0.008（-10 ℃~50 ℃) |
|
IEC 61094 |
WS2P |
Static pressure coefficient (dB/kPa) |
-0.01 |
|
Polarization Voltage (V) |
28 |
Operating humidity range (%RH) |
0～100 |
|
Sensitivity (mV/Pa) (±2.0dB) |
3.3 |
Height (including protective cover) (mm) |
13.6 |
|
Frequency range (Hz) |
10～8k |
Diameter (including protective cover) (mm) |
13.2 |
|
Capacitance (pF) (@250 Hz) |
12 |
Height (excluding protective cover) (mm) |
12.6 |
|
Dynamic Range (dB) |
37 ～156 |
Diameter without grid (mm) |
12.7 |
|
Voltage Equalization Method |
Side Pressure Equalization |
Preamplifier Fitting Thread |
11.7mm-60UNS |

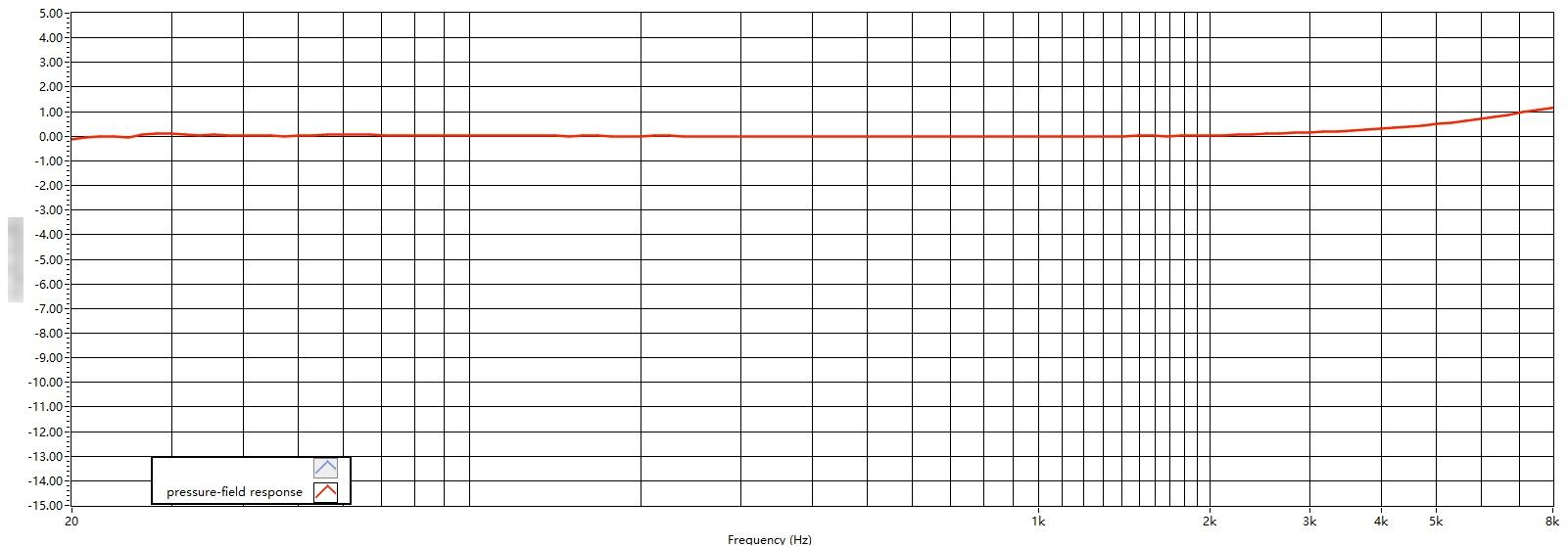

Frequency Response
