AWA14403-S00E 1/2" Free-field Working Standard Microphone Set
Free-Field Working Standard Microphone – Designed strictly to working standard microphone specifications, ideal for use as a transfer standard in calibrating acoustic measurement instruments.
Extended Frequency Range up to 40 kHz – Wide frequency response enables accurate measurement of high-frequency sounds across diverse acoustic testing scenarios.
Optimized for Reflection-Free Environments – Purpose-built for anechoic and hemi-anechoic chambers and other settings free of reflections or directional sound incidence.
Press-Fit Diaphragm Structure – Robust construction requiring external polarization power, engineered for consistent, long-term performance.
Flexible Power Compatibility – Compatible with low-noise dual power supplies (±75 V max) or low-noise single positive power supplies (150 V max), supported via a Lemo-type preamplifier requiring 200 V external polarization voltage.
Premium Build Quality – Features high-strength protective grids and synthetic sapphire insulators, assembled and tested in Class 1000 cleanrooms for maximum reliability.
Versatile Applications – Ideal for acoustic research, noise monitoring, sound system testing, and instrument calibration in reflection-free environments
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA14403-S00E is a unit comprising a free-field working standard microphone and a Lemo-type preamplifier. Designed in strict accordance with specifications for working standard microphones, it features a press-fit diaphragm structure and requires external polarization power to operate. It offers exceptional stability and a frequency range extending up to 40 kHz, making it suitable for use as a transfer standard in the calibration of acoustic measurement instruments, as well as for applications in acoustic environments characterized by an absence of reflections or sound incidence from specific directions (such as anechoic or hemi-anechoic chambers).
Product Video
Features
Applications of Free-Field Standard Measurement Microphone Set
Free-field standard measurement microphone sets feature a wide frequency response range, enabling accurate measurement of high-frequency sounds across various measurement scenarios. Designed specifically for environments free of reflections or echoes, these cartridges are widely used in fields such as acoustic research, noise monitoring, and sound system testing.
Compatibility
The AWA14403-S00E measurement microphone set requires an external 200 V polarization voltage supplied via a preamplifier. The preamplifier must be powered by either a low-noise dual power supply (maximum voltage not exceeding ±75 V) or a low-noise single positive power supply (maximum voltage not exceeding 150 V).
TEDS-Enabled Measurement Microphone Units
These sets support TEDS (Transducer Electronic Data Sheet) and are programmed in accordance with the IEEE 1451.4 standard (V1.0 format). They are compatible with smart sensor technology, facilitating the integration and automated management of sensor data.
Calibration
Each measurement microphone set is calibrated at the factory using traceable calibration equipment and is supplied with a calibration certificate. Annual recalibration is recommended.
Quality and Warranty
All AiHua microphones feature second-generation alloy diaphragms, high-strength protective grids, and synthetic sapphire insulators, making them highly stable and reliable measurement microphones. Compared to traditional nickel or stainless steel, these alloy diaphragms offer superior corrosion resistance, high-temperature stability, impact resistance, and specific strength. Assembly and testing are conducted in Class 1000 cleanrooms to ensure the highest quality. These measurement microphone units come with a one-year warranty, backed by comprehensive after-sales support.
|
AWA14403-S00E 1/2" Free-field Working Standard Microphone Set |
|||
|
Sound Field Type |
Free field |
Pressure equalization method |
-30 to +100 |
|
Diameter |
1/2 inch |
Operating temperature (°C) (@250 Hz) |
-0.005 |
|
Compliant with standard (IEC 61094) |
WS2F |
Temperature coefficient (dB/°C) |
-0.005 |
|
Polarization voltage (V) |
200 |
Static pressure coefficient (dB/kPa) |
0–100% RH |
|
Sensitivity (mV/Pa) (@250 Hz ±2.0 dB) |
14.1 |
Operating humidity range |
≥10 GΩ / ≤0.5 pF |
|
Frequency range (Hz) |
3.15~40k |
Input impedance/capacitance |
>10 Vrms (at 60 V supply) |
|
Typical capacitance (pF) |
18（@250 Hz） |
Output voltage |
≤50 Ω |
|
Dynamic range |
23 dBA~159 dB |
Output impedance |
LEMO connector |
|
Noise floor (dBA) |
≤23 |
Output interface |
-30 to +100 |

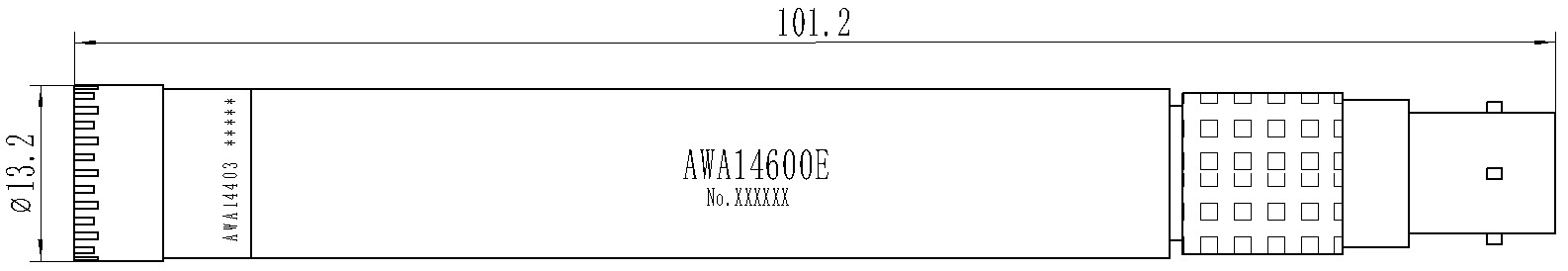

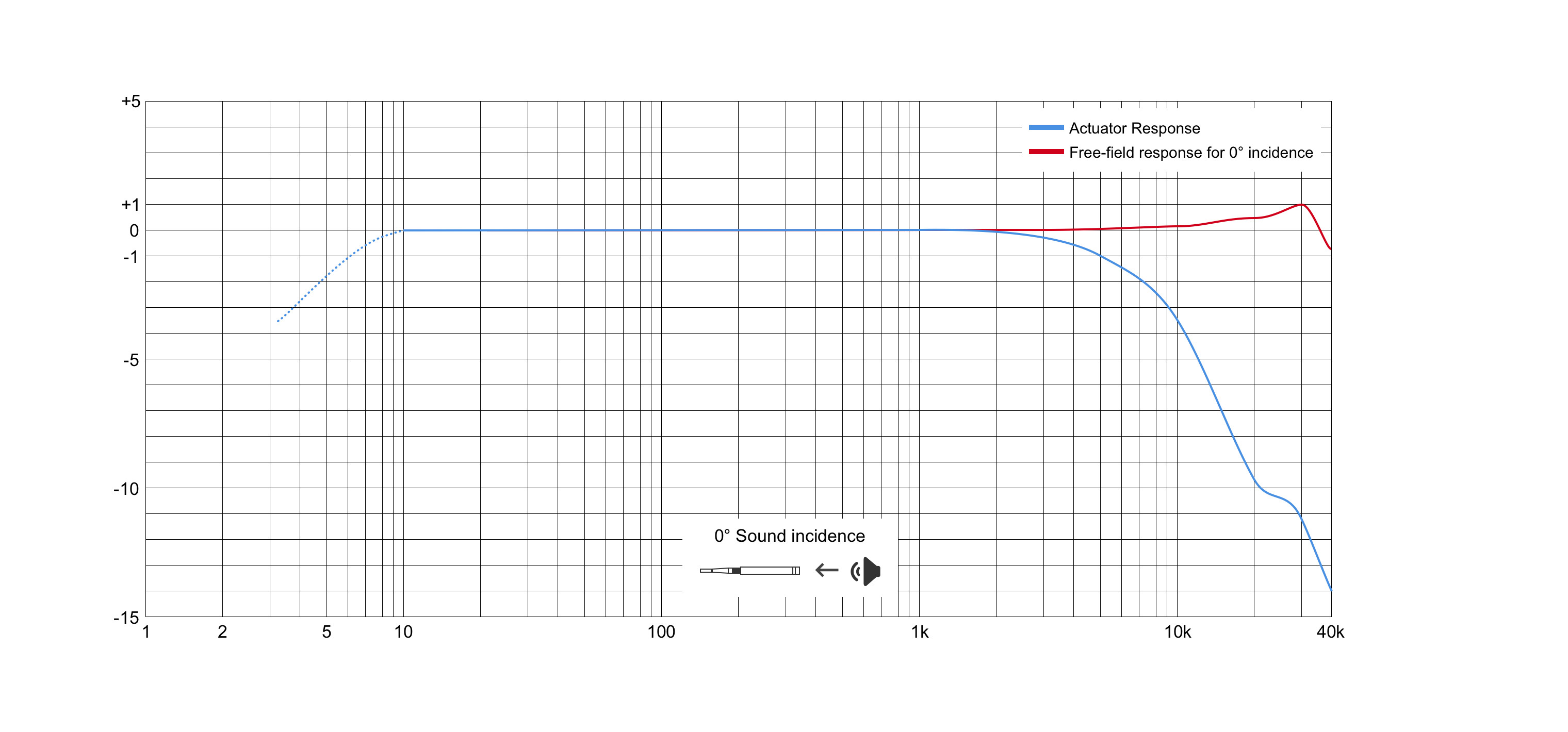

Frequency Response
