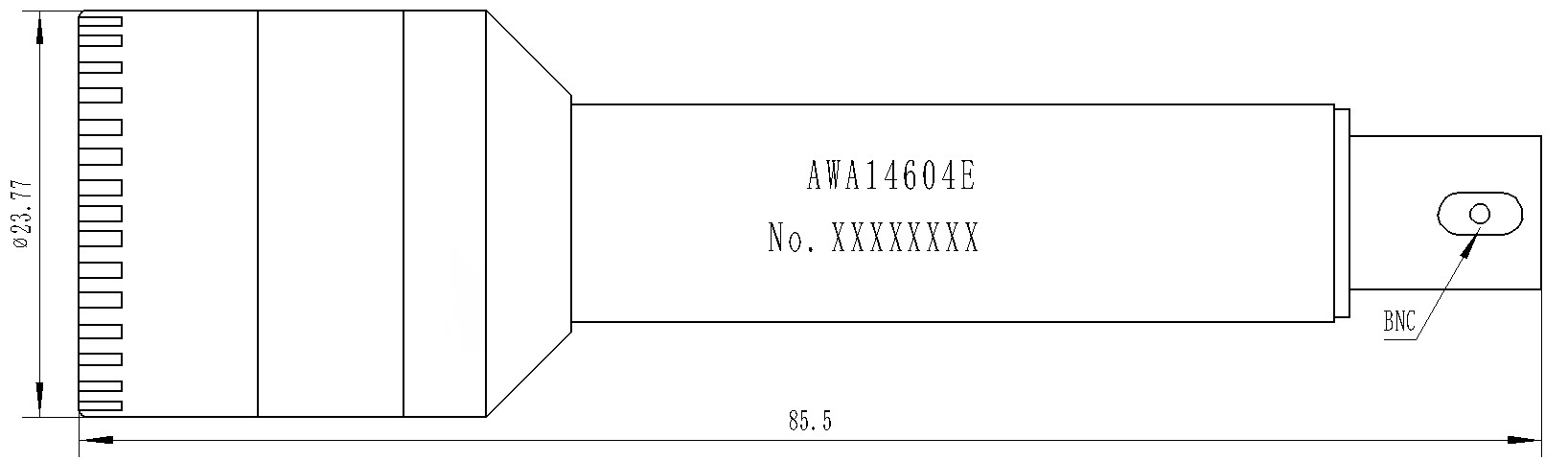

Dimensions
Microphone Unit
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AWA1411-S04E 1" Free-field Low-noise Measurement Microphone Set
Professional 1-inch free-field low-noise measurement microphone system with adapter and preamplifier
Ultra-low noise floor down to ≤11.5 dBA, ideal for precision low-level acoustic measurements
Large 18 mm diaphragm design ensures high sensitivity and excellent signal stability
Wide frequency response range of 10 Hz – 16 kHz for accurate broadband acoustic analysis
Supplied with individual factory calibration certificate for traceable measurement reliability
Designed for anechoic and semi-anechoic environments, minimizing reflection influence
Supports high dynamic range measurement up to 129 dB, suitable for both quiet and high SPL testing
-
Class 1SLM -
Mobile App -
IEC61672
01
Product Description
The AWA1411-S04E is an assembly comprising a free-field low-noise measurement microphone, an adapter, and a preamplifier. Featuring a large 18 mm diaphragm and an ultra-low noise floor of 11.5 dBA, it meets the requirements for various low-level sound measurements. Supplied with an individual calibration certificate, the unit is designed for acoustic environments characterized by the absence of reflections or sound incidence from specific directions (such as anechoic or semi-anechoic chambers). It utilizes a high-precision capacitive sensor offering a frequency range of 10 Hz to 16 kHz, high sensitivity, and excellent stability. Compatible with mainstream acoustic analysis instruments, the cartridge is widely used in applications such as low-level sound measurement, sound power measurement, and automotive NVH assessment.
Product Video
Features
Applications of Free-Field Low-Noise Microphone Sets
These free-field low-noise microphone cartridges feature an exceptionally low noise floor—down to 8 dBA—making them suitable for a wide range of applications, including low-noise measurements, sound power determination, and automotive NVH (Noise, Vibration, and Harshness) assessment. They are also compatible with standard acoustic measurements, serving fields such as acoustic research, noise monitoring, and sound system testing.
Compatibility
The AWA1411-S04E measurement microphone set requires an external constant-current power supply module capable of delivering 2 mA to 20 mA of current and an open-circuit voltage of 24 V. Manufacturers may use various terms for such power modules and their supply modes, such as IEPE (Integrated Electronics Piezo-Electric), ICP (Integrated Circuit Piezoelectric), CCP (Constant Current Power), or CCLD (Constant Current Line Drive).
TEDS-Enabled Measurement Microphone Sets
These units support TEDS (Transducer Electronic Data Sheet) functionality, are programmed according to the IEEE 1451.4 standard, and comply with V1.0 format requirements. They are compatible with smart sensor technology, facilitating the integration and automated management of sensor information.
Calibration
Each measurement microphone set is calibrated at the factory using traceable calibration equipment and is supplied with a calibration certificate. Annual recalibration is recommended.
Quality and Warranty
All Aihua microphones utilize second-generation alloy diaphragms, high-strength protective grids, and synthetic corundum insulators, ensuring exceptional stability and reliability in the measurement microphone market. Compared to traditional nickel or stainless steel, these alloy diaphragms offer superior corrosion resistance, high-temperature stability, impact resistance, and specific strength. To ensure the highest quality, all microphones are assembled and tested in Class 1,000 cleanrooms. The measurement microphone cartridges come with a one-year warranty, backed by comprehensive after-sales support.
|
AWA1411-S04E 1” Free-field Low-noise Measurement Microphone Set |
|||
|
Sound Field Type |
Pressure field |
Pressure Equalization |
Side pressure equalization |
|
Diameter |
1 inch |
Operating Temperature (°C) |
-30 to +80 |
|
Dimensions Standard (IEC 61094) |
WS1F |
Temperature Coefficient (dB/°C) (@250 Hz) |
-0.02（-10 ℃～50 ℃） |
|
Power Supply |
ICP（2 mA～20 mA） |
Static Pressure Coefficient (dB/kPa) |
-0.015 |
|
Sensitivity (mV/Pa) (@250 Hz ±2.0 dB) |
100 |
Input Impedance/Capacitance |
≥10 GΩ/≤0.5 pF |
|
Frequency Range (Hz) |
10～16k |
Output Voltage |
≥5 Vrms@24 Vsupply |
|
Polarization Voltage (V) |
0 |
Output Impedance |
≤50 Ω |
|
Dynamic Range |
11.5 dBA～129 dB |
TEDS |
Standard |
|
Noise Floor (dBA) |
≤11.5 |
Output Connector |
BNC |

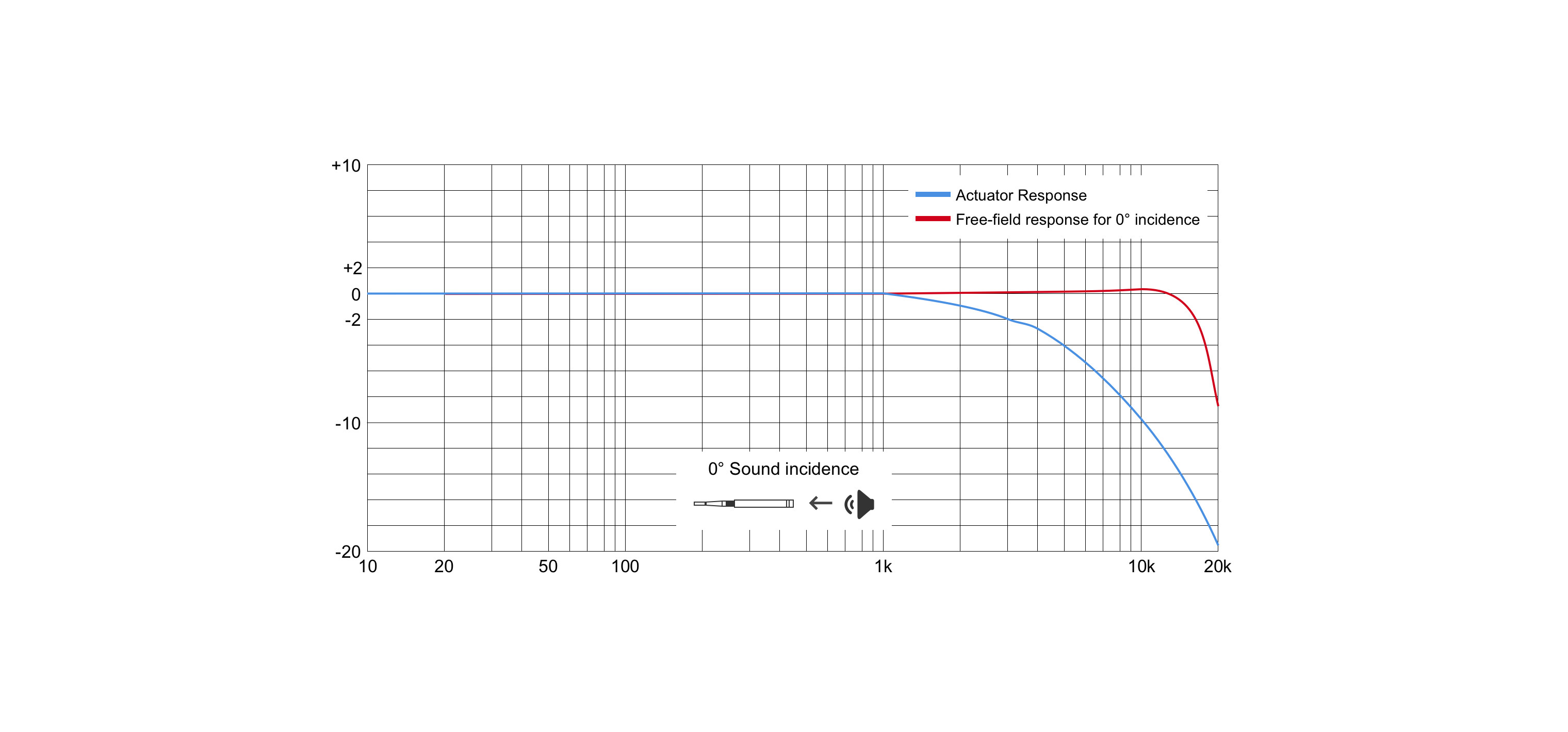

Frequency Response
