AiSW 1202 Pure Tone Audiometer
Hearing & Audiology Diagnostic Equipment
From Sound Level Meters and Acoustic Imagers to Calibrators and sound level sensor for professional testing and research.
Inquiry Now
AiSW 1202 pure tone audiometer02.jpg
AiSW 1202 pure tone audiometer01.jpg

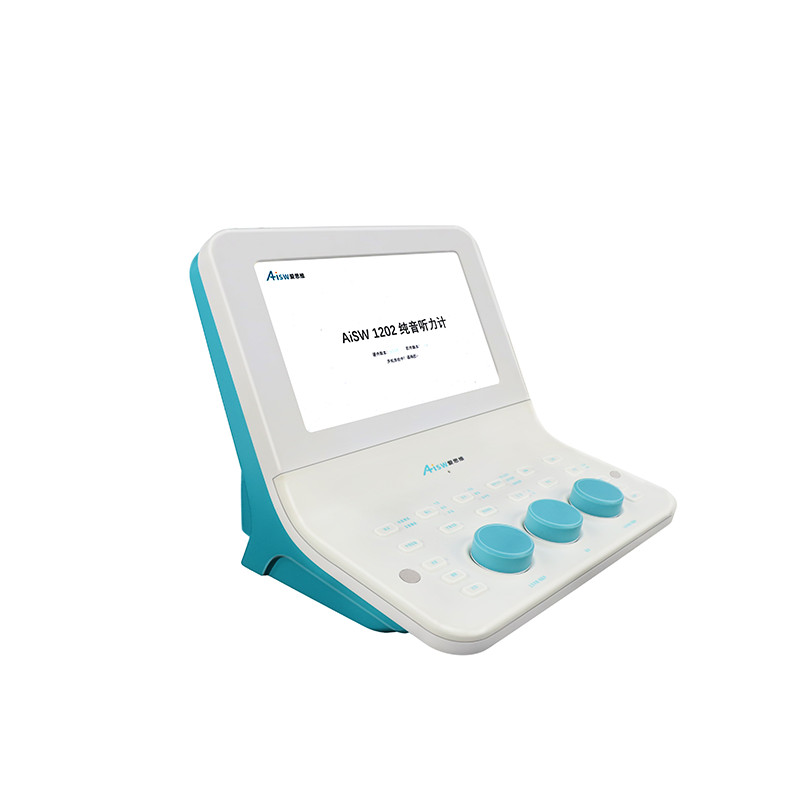

AiSW 1202 Pure Tone Audiometer

Comprehensive hearing test functions: Supports pure tone test and speech test (built-in vocabulary), enabling full audiological assessment.

Multi-output testing capability: Includes air conduction, bone conduction, and sound field output for complete hearing evaluation coverage.

High-standard compliance: Meets GB/T 7341.1-2010 Type II and JJG 388-2012 requirements for reliable clinical and regulatory use.

Advanced stimulus and masking functions: Supports pure/warble/pulse tones with contralateral masking and narrowband noise for accurate diagnosis.

User-friendly operation & data handling: Features 3.5-inch touchscreen, built-in printer, and large storage capacity (64GB + TF card support).

Flexible control and connectivity: Supports external response handle, microphone input, monitoring interface, and PC connection for customized reporting.

    • prod_icon_03
      Class 1SLM
    • prod_icon_05
      Mobile App
    • prod_icon_07
      IEC61672
    Contact us
    icon1Descriptionvideo_fillProduct Videoicon2 Featuresicon3Performance
    product details
    AiSW 1202 pure tone audiometer02
    01

    Product Description

    AiSW 1202 Pure tone audiometer can produce pure tone with different frequency and different sound level through electro-acoustic transducer, which is used to test hearing sensitivity of human ear with different frequency within hearing range and judge whether there is hearing disorder. It can be used to evaluate the degree of hearing loss and make a preliminary judgment on the type of deafness and the location of the lesion.
    The pure tone audiometer shall meet the technical requirements of Type II pure tone audiometer in GB/T 7341.1-2010 Electroacoustic Audiometry Equipment-Part 1: Pure Tone Audiometer, JJG 388-2012 Verification Regulations for Pure Tone Audiometer and JJF 1592-2016 Type Evaluation Outline for Pure Tone Audiometer.
    The product is composed of mainframe, power adapter, air guide headset (imported TDH-39P), bone guide headset (imported B71) and transponder.

    Product Video

    Features

    Test type: Pure tone test and speech test (built-in speech test and hearing vocabulary);
    Output type: Air conduction output, bone conduction output, sound field output;
    Stimulus sound type: Pure / warble/pulse pure tone;
    Patient response: External response handle, the display screen shows the response status;
    Microphone: The host has a built-in microphone. The microphone can be connected externally. The subject can transmit the language of the operator.
    Monitoring: It has monitoring interface and can monitor test signal in real time through monitoring headset;
    Sound giving method: Default sound giving /timed sound giving /continuous sound giving;
    Protection function: Comply with acoustic safety requirements and effectively protect the hearing of subjects;
    Masking: Contralateral masking of air guide and bone guide, with masking prompt function;
    Result printing: The host has a built-in printer, which can print test results directly;
    Operation: Purely lower computer operation. Connecting to a PC upper computer allows customized printing.

    Main Performance Indicators

    Product Model

    AiSW 1202 pure tone audiometer

    Standard Implemented

    GB/T 7341.1-2010 type-2; Type JJF 1592-2016 2

    Test frequency

    Air conduction and sound field: 125 Hz~8 kHz;

    Bone guide: 250 Hz~8 kHz; Error is less than ±1%;

    Hearing level range

    Air conduction -10~ 120 dB HL; Bone guide -10~70 dB HL

    Range of masking level

    -10~105 dB HL

    Accuracy of hearing level

    Air conduction: 125 Hz~8 kHz: <±2 dB;

    Bone guide: 250 Hz~4 kHz: <±4 dB;

    Accuracy of masking level

    -3~5 dB HL

    Masking type

    Narrowband noise



    Attenuation step



    2.5 dB/5 dB

    Step accuracy

    Better than ±1 dB or 30% of step, whichever is smaller

    Total harmonic distortion

    Air conduction: <1%, bone conduction: <2%

    Signal indicator

    Time weighted 100 ms, dynamic range 60 dB, detection characteristic: RMS

    Sound field output

    Two-channel audio output

    Input power

    20 VA

    Printing

    Printing paper width 80 mm, printing width 72 mm

    Preheating time

    Less than 1 minute

    Power supply

    A.c. 220 V, 50 Hz

    Working environment

    Ambient temperature: 15℃~35℃, relative humidity: 30 %~90%, atmospheric pressure: 98kPa~104kPa;

    Product validity period

    5 years
