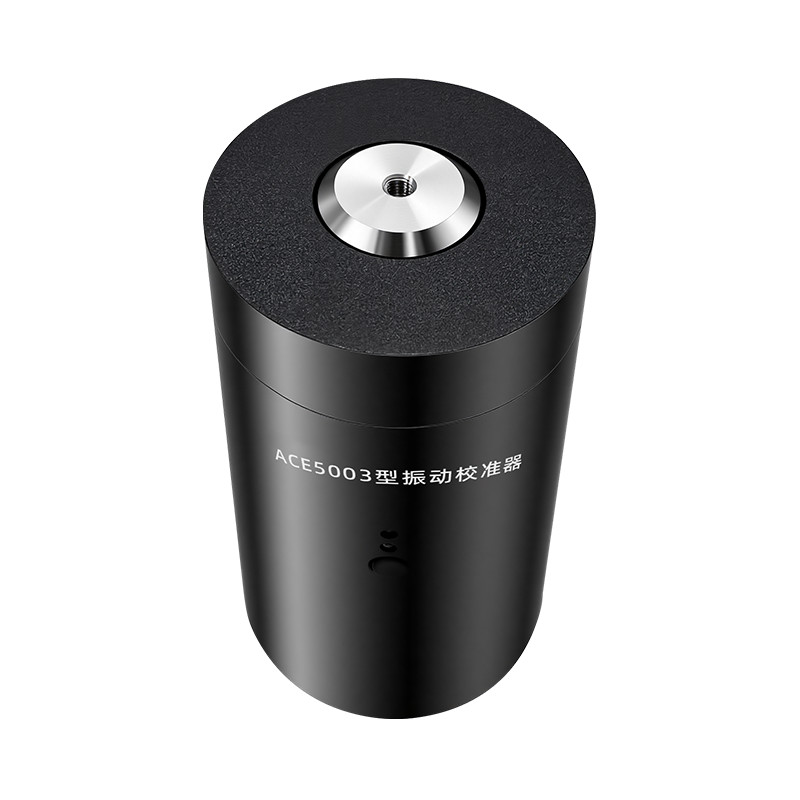

ACE5003 Handheld Vibration Sensor Calibrator

High-precision calibration standard compliance: Meets GB/T 23716-2009 and JJG 1062-2010, ensuring traceable and reliable vibration calibration results.

Stable high-frequency output (159.2 Hz, 10 m/s² RMS): Provides a precise and repeatable vibration reference signal for accurate sensor sensitivity calibration.

Ultra-low distortion and high stability performance: Total distortion <3% and low lateral vibration (<5%) ensure high-quality and consistent calibration results.

Class 1SLM
Mobile App
IEC61672

Description video_fill

Product Video icon2

Features

Performance icon3

Application

product details

Product Description

The ACE5003 vibration calibrator is a handheld calibration instrument for calibrating the sensitivity of vibration sensors and vibration measuring instruments. The calibrator generates an acceleration of 159.2 Hz and 10 m/s² (RMS). Small accelerometers used for machine vibration and hand-transmitted vibration can be calibrated by fixing them to the calibrator platform using M5 bolts or magnetic mounts. The 159.2 Hz operating frequency can be easily converted into velocity and displacement values. It features small size, light weight, battery power, and ease of use, making it suitable for on-site calibration of working vibration meters, human body vibration meters, and their associated sensors.

Product Video

Features

Standard-compliant calibration device: Meets GB/T 23716-2009 and JJG 1062-2010 requirements for vibration calibration.

High-stability fixed frequency output: 159.2 Hz ±1% ensures accurate and repeatable calibration results.

10 m/s² RMS acceleration output: Provides stable and reliable vibration reference signal.

Multi-parameter conversion capability: Supports conversion to velocity (mm/s) and displacement (mm) for flexible calibration use.

Low distortion performance: Total distortion less than 3% ensures high calibration accuracy.

Fast warm-up time: Ready for operation in less than 20 seconds for efficient field use.

Portable handheld design: Lightweight structure (~510g) for easy on-site operation.

Flexible sensor mounting options: Supports M5 bolt fixing and magnetic mounting for different accelerometer types.

Wide application range: Suitable for calibration of vibration meters, human body vibration meters, and industrial vibration sensors.

Main Performance Indicators

Product Model		ACE5003 Vibration Calibrator
meet the standard		GB/T 23716-2009, JJG 1062-2010
frequency		159.2 Hz±1%
amplitude	Acceleration (m/s²)(RMS)	10
	Velocity (mm/s)(RMS)	10
	Displacement (mm)	0.01
lateral vibration		Less than 5%
warm-up time		Less than 20 s
load capacity		100g
Total distortion		Less than 3%
Mass		Approximately 510g
Power Consumption		Can work continuously for more than 2.5 hours after a full charge
Sensor Mounting Hole		M5
Operating Temperature Range		0℃~40℃
